Uni-Solar PVL-136 4,080 W Carton of 30 136W Flexible Solar Panel - Solder Point

Brand

Uni-Solar

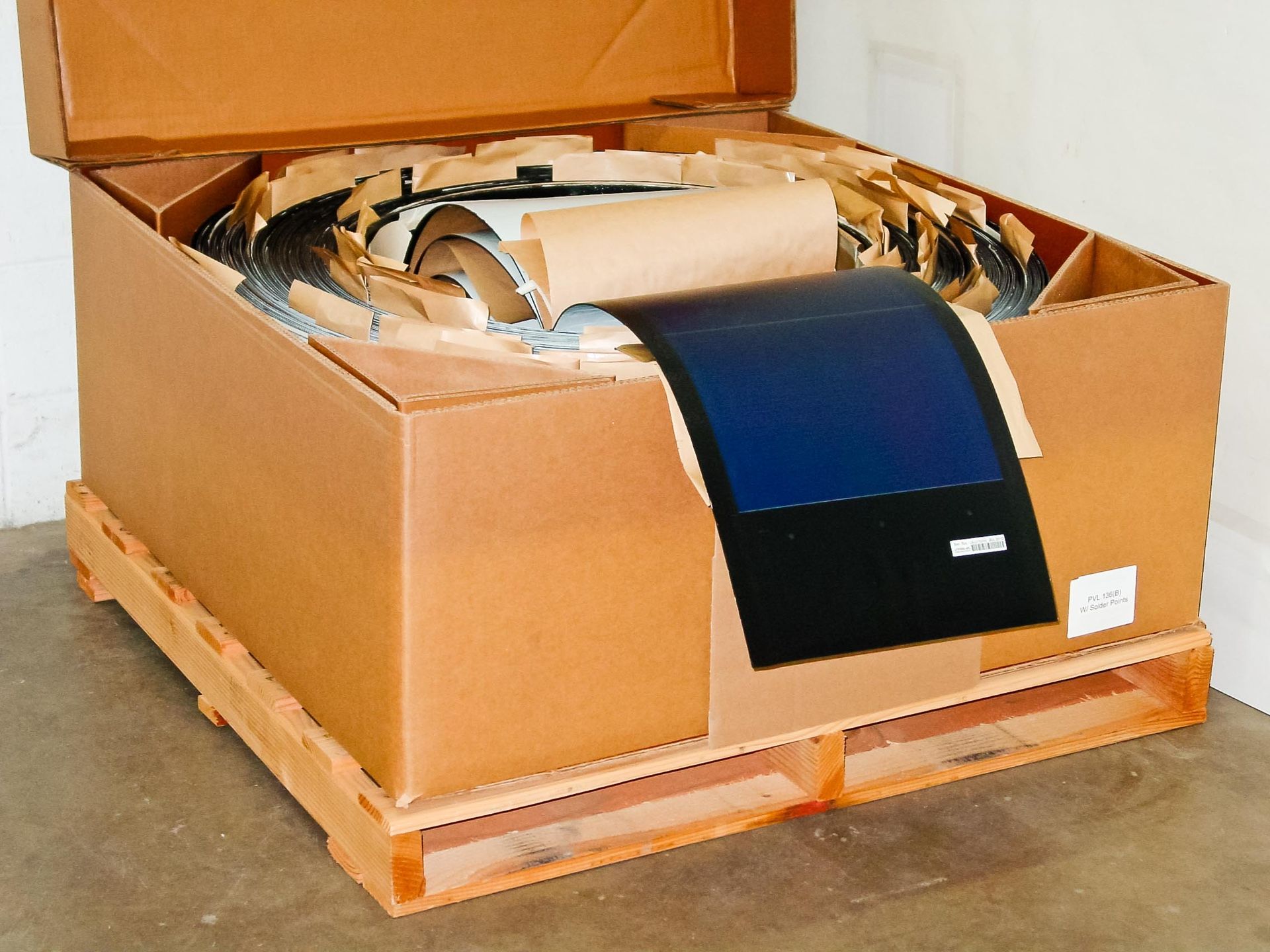

Carton of 30 - Uni-Solar PVL-136 136W 24-Volt Flexible Amorphous Solar Panel with Triple Junction Solar Cells and Bottom Facing SOLDER POINTS. These are top tier finished panels. Unisolar made them this way for a specific client. These are also Grid Tie UL 1703 Listed for Systems up to 600 VDC. Which means they were made to last 20 Years. See brochure. Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. They are also Category 3 (130 MPH) Hurricane uplift resistant and installed with no hardware. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. The following are basic specs for individual solar panels Maximum Power (Pmax): 136 Watts Nominal Operating Voltage: 24 Volts Max Power Voltage (Vmpp): 33 Volts Max Power Current (Impp): 4.1 Amps Open Circuit Voltage (Voc): 46.2 Volts Short Circuit Current (Isc): 5.1 Amps Max System Voltage: 600 Volts Lightweight & Flexible Bypass Diodes at each cell connection Category 3 (130 MPH) Hurricane uplift resistant when installed in accordance with guidelines. Virtually Unbreakable (No Glass) Shadow & High Heat Tolerant Cells Per Module: 22 Frame Material: Frameless Connectors: None: Solder Points on bottom of panel Bonding adhesive factory-installed on the back of the laminate Panel Weight: 16 Pounds Panel Dimensions:216" (18 Feet) x 15 3/8" Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Here is a video with many examples. Condition: New These brand new made in USA solar panels are packed and stored in the factory carton of 30 panels. The Unisolar manufacturing and distribution facility was liquidated in 2012 and these panels came direct from Unisolar. We do have various brochures and installation guides produced by Unisolar available we can offer you if requested. Uni-solar peel and stick flexible panels are no longer made and are getting more rare by the day. See more at https://offerup.com/redirect/?o=UmVjeWNsZWRHb29kcy5jb20vc29sYXItcGFuZWxzLWNlbGxzLWFuZC1lcXVpcG1lbnQv
