Rice Lake 920i FlexWeigh Filler/Batcher Systems – Automated Filling & Batching Controller

The Rice Lake 920i FlexWeigh Filler/Batcher Systems are pre-engineered, factory-programmed process control solutions designed to automate filling, dispensing, and batching operations in manufacturing, processing, agricultural, food, chemical, and material handling applications.

Built around the powerful Rice Lake 920i programmable weight indicator, these turnkey systems combine advanced weighing technology with a rugged FlexWeigh control panel to deliver reliable, repeatable, and accurate process automation. Each system is fully tested and programmed at the factory, reducing engineering time and simplifying installation.

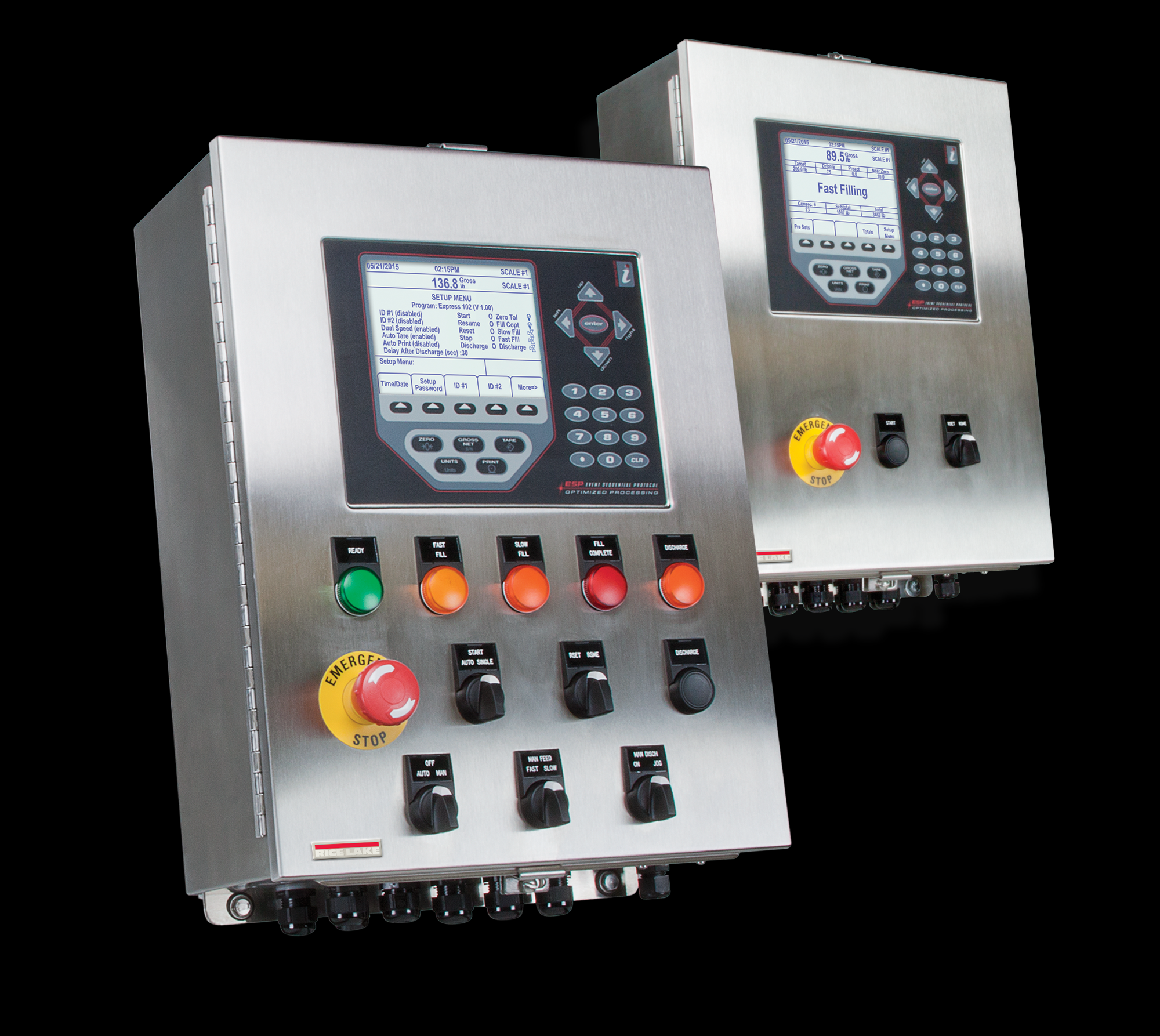

The 920i FlexWeigh Filler/Batcher series is housed in a durable stainless steel wall-mount enclosure and includes front-panel controls for Start, Reset/Resume, and Emergency Stop functions. Operators can easily manage production using programmable softkeys for presets, formulas, customer numbers, product IDs, and production totals.

Designed as a manufacturer-approved replacement for legacy FlexWeigh DWM-IV systems, these controllers provide industrial-strength performance with digital I/O capability, relay rack outputs, SSR relay outputs, audit trail reporting, and accumulation registers for production tracking.

Available Application Programs

101 – Basic Filler

• •

  Automatically fills containers to a preset target weight

• •

  Ideal for filling operations requiring simple automation

102 – Automatic Fill & Automatic Discharge

• •

  Automatically fills a scale to a preset weight

• •

  Discharges material into a receiving container

• •

  Suitable for repetitive filling and transfer applications

103 – Loss-In-Weight Filler

• •

  Dispenses preset quantities until low-level conditions occur

• •

  Automatically refills to maintain operation

104 – Loss-In-Weight Filler

• •

  Dispenses material directly from supply containers

• •

  Automatically pauses and resumes operation during container replacement

201 – Multi-Ingredient Batcher

• •

  Four-ingredient dual-speed batching

• •

  Eight-ingredient single-speed batching

• •

  Sequential ingredient filling based on stored formulas

202 – Multi-Ingredient Batcher with Discharge

• •

  Sequentially fills multiple ingredients

• •

  Automatically discharges finished batches into downstream vessels

Key Features

• •

  Powered by Rice Lake 920i programmable controller

• •

  Pre-engineered and factory-programmed system

• •

  Stainless steel wall-mount enclosure

• •

  Manufacturer-approved replacement for FlexWeigh DWM-IV

• •

  Front-panel controls:

  • •

    Emergency Stop (E-Stop)

  • •

    Start

  • •

    Reset/Resume

• •

  Programmable softkeys for:

  • •

    Presets

  • •

    Formula selection

  • •

    Customer numbers (CN#)

  • •

    Product IDs (ID#)

  • •

    Totals

• •

  Accumulating subtotal and total registers

• •

  Audit trail reporting

• •

  Digital I/O board

• •

  Relay rack outputs

• •

  SSR relay outputs

• •

  Customizable switches and indicator lights

• •

  Industrial-duty construction

• •

  UL Listed

• •

  Factory tested and ready for installation

Applications

• •

  Automated filling systems

• •

  Ingredient batching

• •

  Food processing

• •

  Chemical processing

• •

  Agricultural products

• •

  Feed manufacturing

• •

  Bulk material handling

• •

  Process automation

• •

  Packaging operations

• •

  Industrial weighing systems

Specifications

• •

  Product Series: 920i FlexWeigh Systems

• •

  Controller Platform: Rice Lake 920i

• •

  Application Programs:

  • •

    101 Basic Filler

  • •

    102 Automatic Fill/Discharge

  • •

    103 Loss-In-Weight Filler

  • •

    104 Loss-In-Weight Filler

  • •

    201 Multi-Ingredient Batcher

  • •

    202 Multi-Ingredient Batcher with Discharge

• •

  Enclosure Type: Stainless Steel Wall Mount

• •

  Outputs: Digital I/O, Relay Rack, SSR Relays

• •

  Data Functions: Audit Trail, Totals, Production Tracking

• •

  Approval: UL Listed

Package includes Rice Lake 920i FlexWeigh Filler/Batcher System as specified by selected model number. Please verify the application program (101, 102, 103, 104, 201, or 202) and system requirements before ordering.
