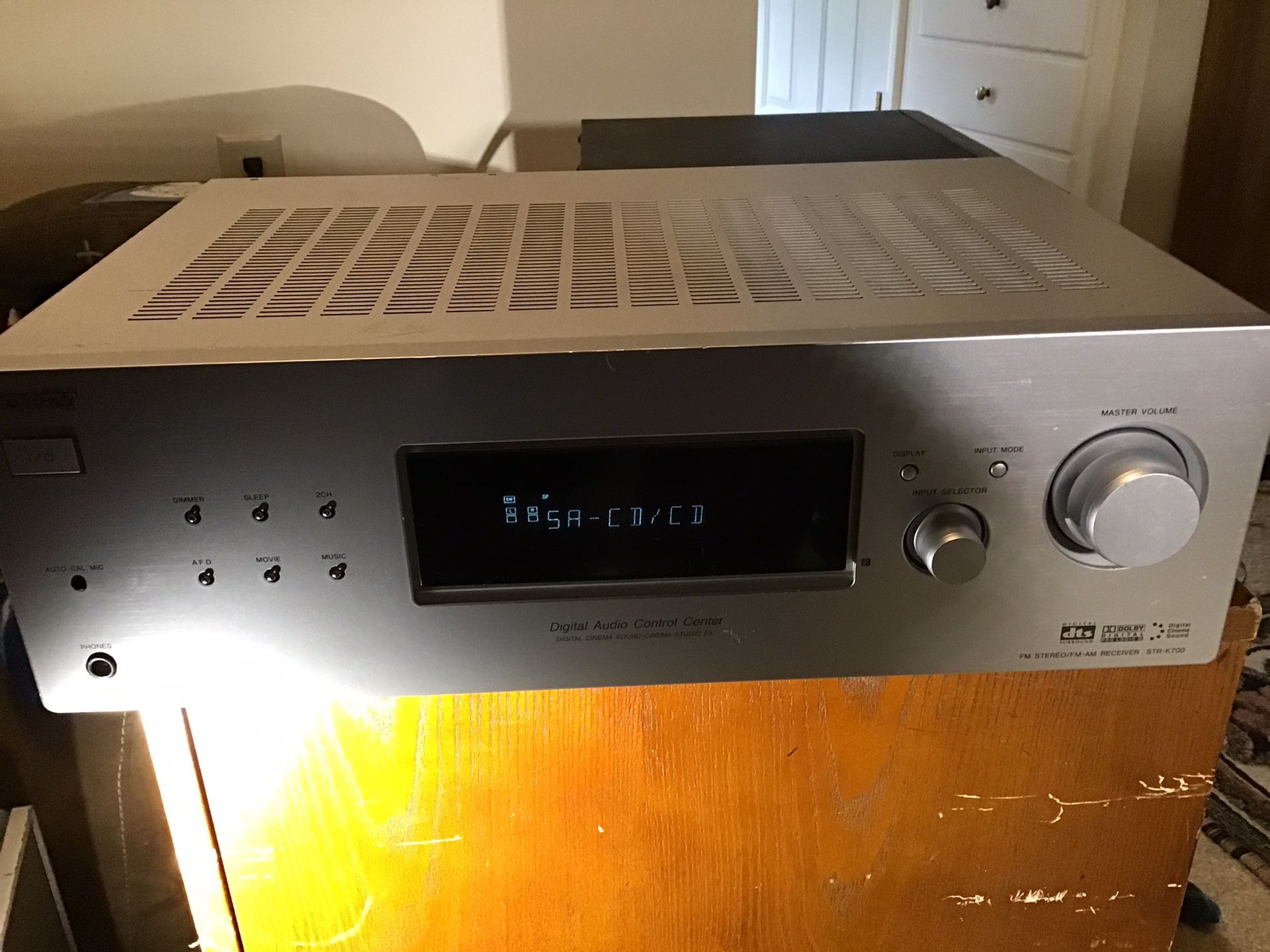

Vintage Sony Audio 5 Channel Surround Sound Receiver Perfect Working Condition

Brand

Sony

Perfect working condition, looks great too. 5.2 Channels 133 Watts per Channel plus a 135 Watt Subwoofer Output, you can hook up a cheap non powered subwoofer And it will sound great.Specs Specifications AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: (Models of area code U only) With 6 ohm loads, both channels driven, from 120 – 20,000 Hz; rated 85 watts per channel minimum RMS power, with no more than 1% total harmonic distortion from 250 milliwatts to rated output. Amplifier section 1) Power Output Stereo mode (rated) (6 ohms 1 kHz, THD 1%) 85 W + 85 W Surround mode2) (reference) (6 ohms 1 kHz, THD 10%) RMS output FRONT:133 W per channel CENTER: 133 W SURROUND: 133 W per channel Surround mode2) (reference) (6 ohms 100 Hz, THD 10%) SUB WOOFER: 135 W 1)Measured under the following conditions: Area code Power requirements U, CA 120 V AC, 60 Hz 2)Reference power output for front, center, surround speakers and sub woofer. Depending on the sound field settings and the source, there may be no sound output. Tone Gain levels ±6 dB, 1 dB step Reproduction frequency range: 28 – 20,000 Hz FM tuner section Tuning range Antenna Antenna terminals Intermediate frequency AM tuner section General Power requirements Area code U, CA Power output (DIGITAL MEDIA PORT) 87.5 - 108.0 MHz FM wire antenna 75 ohms, unbalanced 10.7 MHz Tuning range With 10-kHz tuning scale: 530 – 1,710 kHz3) With 9-kHz tuning scale: 531 – 1,710 kHz3) Antenna Loop antenna Intermediate frequency 450 kHz 3)You can change the AM tuning scale to 9 kHz or 10 kHz. After tuning in any AM station, turn off the receiver. While holding down MOVIE, press ?/1. All preset stations will be erased when you change the tuning scale. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure. Power requirements 120 V AC, 60 Hz DC OUT: Power consumption Area code U CA 5 V, 0.7 A MAX Power consumption 220 W 290 VA Inputs Analog Digital (Coaxial) Sensitivity: 800 mV/ 50 kohms Impedance: 75...
