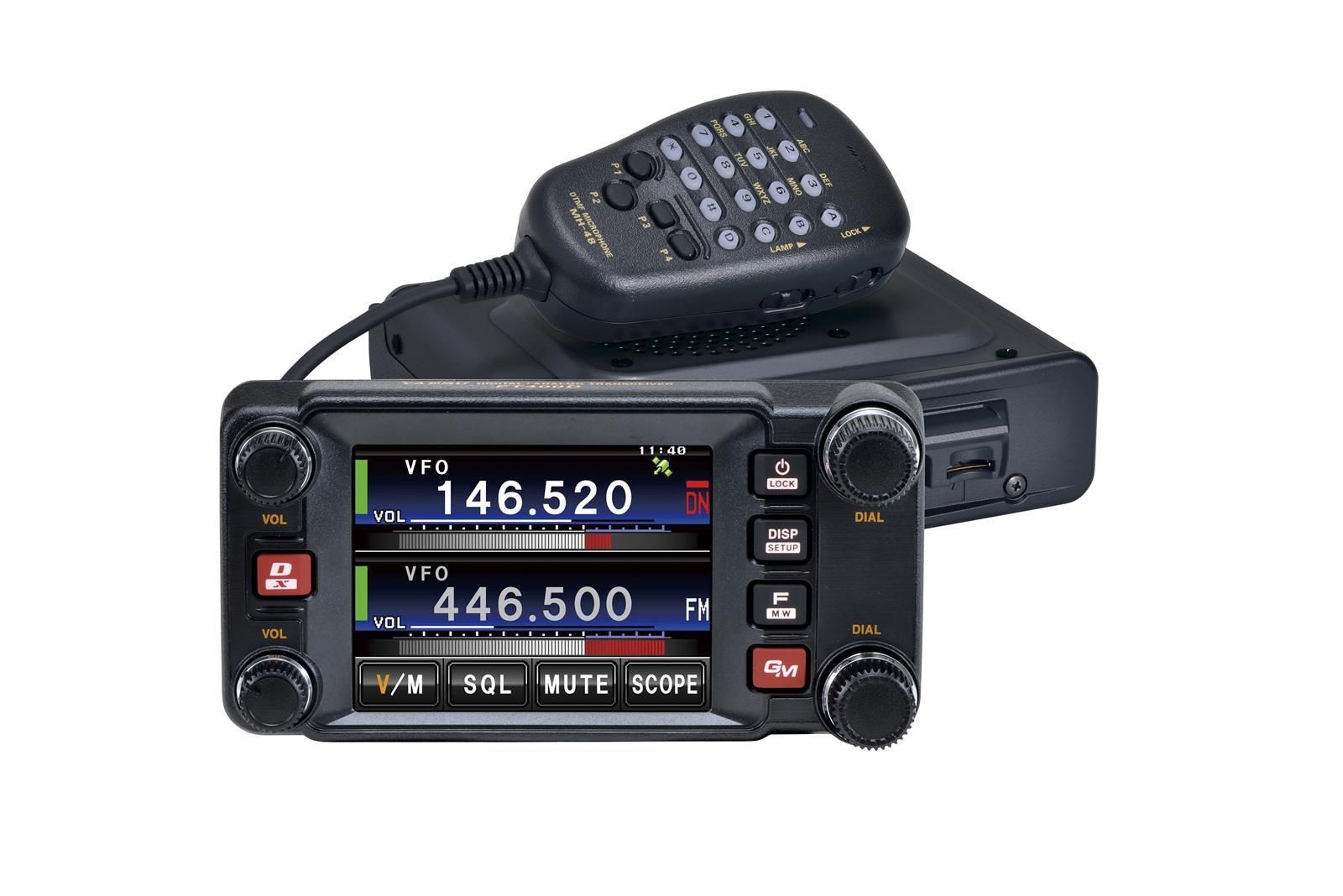

Yaesu FTM-400XDH (C4FM / FM144 / 430MHz dual-band With HRI 200

Yaesu Radio FTM-400XDH [C4FM / FM 144 / 430MHz dual-band transceiver with HRI 200 WIRES-X Product overview of Yaesu Radio FTM-400XDH Large full-color LCD display that can display snapshots It is possible to display snapshot photos sent from friends on a full color display. The photo data contains the GPS data of the date and time of shooting and the location, and you can use the backtrack function to navigate while checking the distance and direction to the shooting location. It is also possible to check on the screen whether the photo has arrived at the partner station. The images are stored on the microSD card, so you can use them later, such as calling and sending them later, or removing the microSD card and editing it on a PC. V / D mode (simultaneous voice / data communication mode) This is the basic mode of C4FM Digital communication that uses 6.25kHz for digital audio signals in the 12.5kHz band and performs error correction of audio data using the remaining 6.25kHz band. Voice FR mode (high quality sound full rate mode) In this mode, audio data is transmitted using the entire 12.5 kHz band. As abundant voice data volume enables high-quality voice communication, you can enjoy communication with comfortable sound quality to your ears in rags with friends. Data FR mode (high-speed data communication mode) This is a high-speed data communication mode used for data communication using the entire 12.5kHz band. In image communication, this mode is automatically switched to, enabling transmission of large amounts of data at high speed. Analog FM mode It is effective to use analog FM for communication in the weak signal state where the sound is interrupted in the digital mode. The proven low-power circuit design enables long-distance communication with low power consumption compared to digital mode. Product specifications of Yaesu FTM-400XDH Others ● Reception frequency range A (main) / B (sub) band: 108 to 137 MHz (aviation radio band), 137 to 174 MHz (144 MHz band), 174 to 400 MHz (information radio band 1), 400 to 480 MHz (430 MHz band), 480 to 999.99 MHz (Information wireless band 2) ● Transmission frequency range: 144 to 146 MHz, 430 to 440 MHz ● Transmission / reception frequency steps: 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 50, 100 kHz (8.33 kHz: only for aeronautical radio band) ● Frequency stability: ± 2.5ppm-20 ℃ ～ + 60 ℃ ● Radio type: F1D, F2D, F3E, F7W ● Antenna impedance: 50Ω ● Power supply voltage: DC 13.8 V ± 15% (minus ground) ● Current consumption: When no signal is received: Approx. 0.5 A ● At the time of transmission rated output: about 11 A / about 7 A (144 MHz band 50 W / 20 W), about 12 A / about 7 A (430 MHz band 50 W / 20 W) ● Transmission output: FTM-400D 20W / 10W / 1W, FTM-400DH 50W / 20W / 5W ● Modulation method: F1D, F2D, F3E: Reactance modulation, F7W: Four-level frequency shift keying (C4FM) ● Maximum frequency deviation: ± 5 kHz ● Unwanted radiation intensity: 60 dB or less ● Microphone impedance: 2 kΩ ● DATA terminal input impedance: 10 kΩ ● Reception method: Double conversion superheterodyne ● Intermediate frequency: 1st: 47.25 MHz 2nd: 450 kHz: A (main) band, 1st: 44.85 MHz 2nd: 450 kHz: B (sub) band ● Reception sensitivity: 0.8 μV TYP for 10 dB SN (108 to 137 MHz, AM), 0.2 μV for 12 dB SINAD (137 to 140 MHz, FM), 0.2 μV for 12 dB SINAD (140 to 150 MHz, FM), 0.19 μV TYP for BER 1% (140 to 150 MHz Digital), 0.25 μV for 12 dB SINAD (150 to 174 MHz, FM), 0.3 μV TYP for 12 dB SINAD (174 to 222 MHz, FM), 0.25 μV TYP for 12dB SINAD ( 222-300 MHz, FM), 0.8 μV TYP for 10 dB SN (300-336 MHz, AM), 0.25 μV for 12 dB SINAD (336-420 MHz, FM), 0.2 μV for 12 dB SINAD (420-470 MHz) , FM), 0.19 μV TYP for BER1% (420 to 470 MHz Digital), 0.2 μV for 12 dB SINAD (470 to 520 MHz, FM), 0.4 μV TYP for 12 dB SINAD (800 to 900 MHz, FM), 0.8 μV TYP for 12 dB SINAD (900 to 999.99 MHz, FM) ● Squelch sensitivity: 0.16 μV (144/430 MHz) ● Pass bandwidth: NFM, AM 12 kHz / 30 kHz (-6 dB / -60 dB) ● Low frequency output: 3 W (8Ω, THD10%, 13.8 V) Built-in speaker, 8 W (4Ω, THD10%, 13.8 V) BTL external speaker ● Low frequency load impedance: 4Ω to 16Ω Pick up only Please no scammers If you see this ad still available

Condition

Used (normal wear)

Color

Black

Model

FTM-400XDH [C4FM / FM 144 / 430MHz dual-band

Type

Two way radio

Brand

Yaesu
