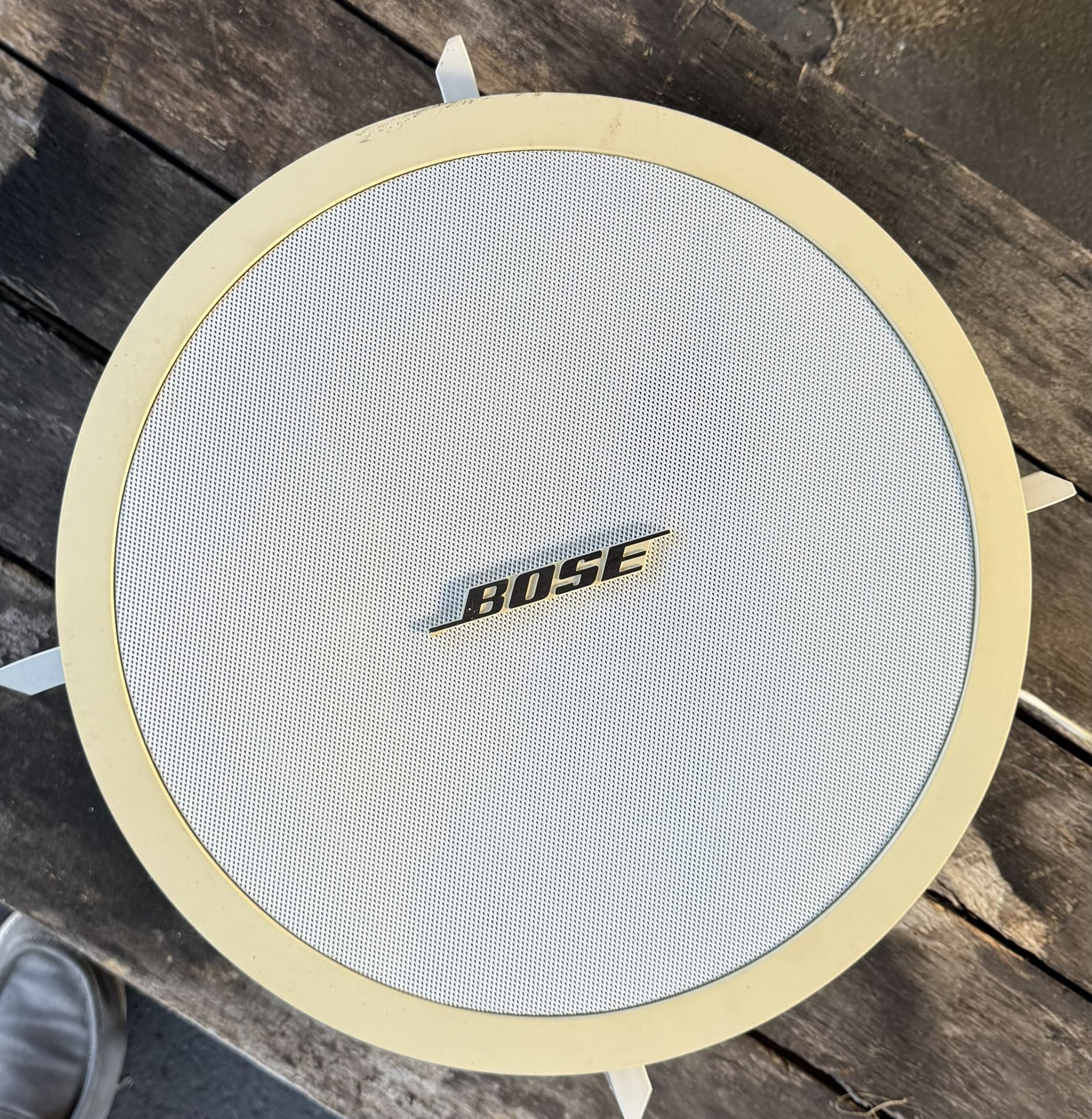

BOSE Model PC-FS3B Enclosure for FreeSpace® 3 Series lI Acoustimass® Module/$200 OBO!!

BOSE® Model PC-FSB Enclosure for FreeSpace® 3 Series II Acoustimass® Module 70V / 100V / 200W IMPEDANCE: 6 OHMS WITH TRANSFORMER BYPASSED POWER RATING: 200W IEC GENERAL PURPOSE LOUDSPEAKER PER UL1480 FreeSpace 3 * * FreeSpace 3 Series II module | FreeSpace 3 TECHNICAL INFO Facebook Twitter Linkedin Designed to provide flush-mount bass augmentation for new and existing background music systems. Features one 5.25-inch (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion. For indoor applications only. FEATURES * Low-frequency loudspeaker featuring one 5.25-inch (133 mm) woofer that delivers deep, non-localized bass support down to 40 Hz without audible distortion. For flush, ceiling, pendant and wall-mount applications * Speaker technology filters out audible distortion to deliver non-localized bass * Designed to work with the FreeSpace 3 flush and surface satellite speakers, or existing systems where additional bass reinforcement is desired * Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module * Plenum rated for use in air handling spaces (with optional plenum cover) * Selectable 70/100V or low impedance with transformer tap adjustment under speaker grille Applications Designed for a wide range of applications, including: * Retail stores * Restaurants and bars * Lobbies and conference rooms SPECS TECHNICAL SPECIFICATION PHYSICAL * Colors
Black, white * Enclosure Material
PC/ABS * Environmental
Indoor only * Grille
Expanded metal * Suspension/Mounting
(4) mounting arms, (3) suspension/safety cable attachment points * Product Dimensions (H×W×D)
15.4 in × 7.4 in (391 mm ×189 mm), loudspeaker diameter × depth / 14.3 in (362 mm), ceiling hole diameter * Net Weight
14.0 lb (6.4 kg) * Shipping Weight
20.0 lb (9.1 kg) PERFORMANCE * Frequency Range (-10 dB)
40 Hz – 315 Hz * Coverage, Horizontal
Omnidirectional below 200 Hz * Calculated Maximum SPL @ 1 m
Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak * Nominal Impedance
6 Ω mono direct (transformer bypassed) * Power Handling, long-term continuous
70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono * Power Handling, Peak
70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono * Recommended Signal Processing
Recommended * Sensitivity (SPL/1 W at 1 m)
Per channel: 76 dB / Mono: 79 dB * Transformer Taps, 100V
25 W, 50 W, 100 W, 200 W * Transformer Taps, 70V
25 W, 50 W, 100 W, 200 W * Coverage, Vertical
Omnidirectional below 200 Hz TRANSDUCERS * Driver Protection
Recommended high-pass filter 40 Hz high-pass filter * Low-Frequency
5.25 in (133 mm) dual-voice-coil low-frequency driver MECHANICAL DIAGRAMS Front-View Rear-View Side-View PRODUCT CODES * 843090-0110Black * 843090-0210White PRICED TO SELL! GRAB IT NOW! 😉
