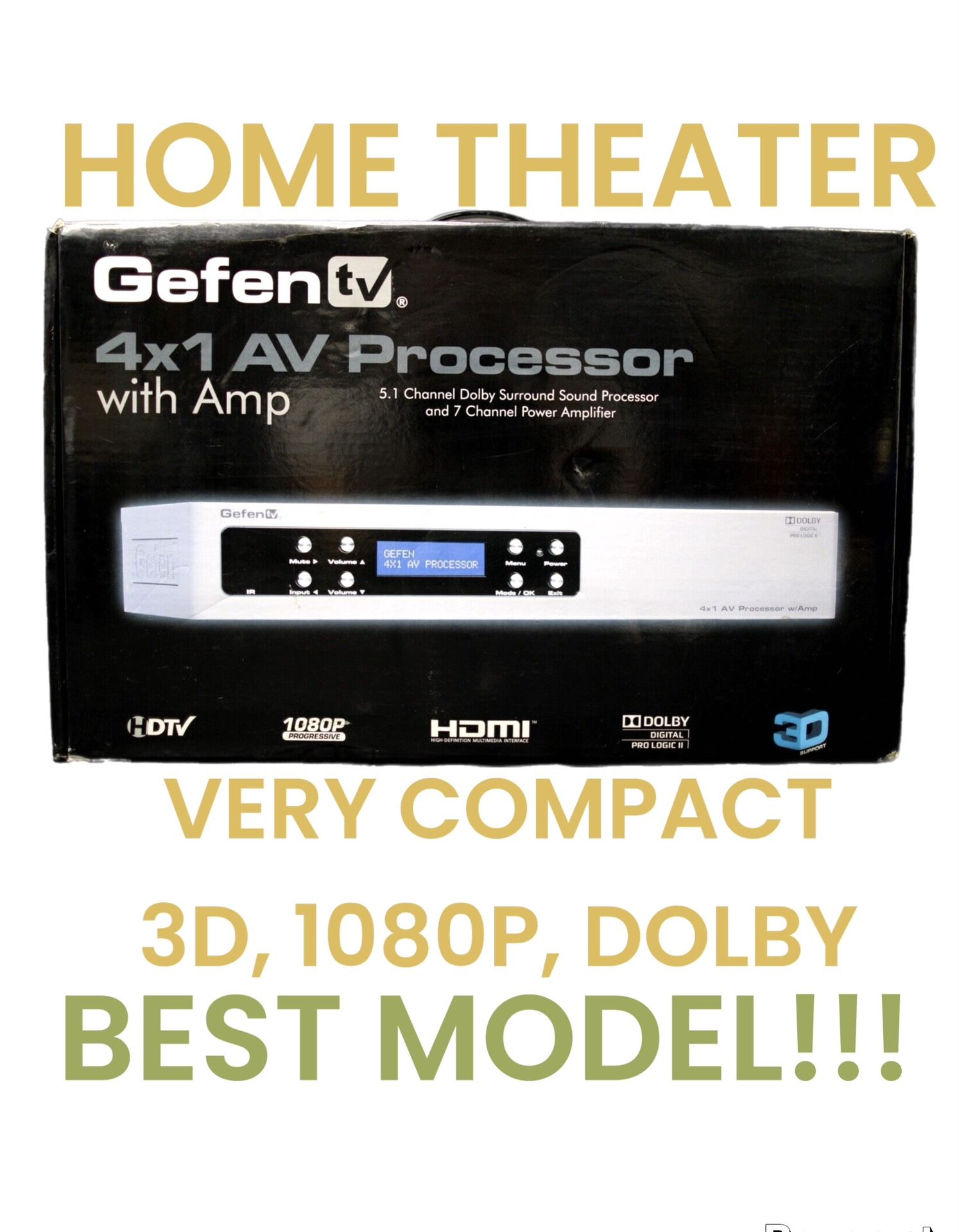

NEW Gefen TV 4x1 AV Home Theater Audio Processor w/AMP 5.1 Channel Dolby Home Theater - 3D 1080P Dolby Surround Very compact

Model

Receiver

Brand

Gefen

The GefenTV Home Theater Audio Processor is a powerful yet very compact solution for all your audio/video needs. ITS AMAZING BEST PRICE $$$ - FOR THIS MODEL!!!! The GefenTV Home Theater Audio Processor provides pass-through connection for a Hi-Def source to two mirrored HDTV displays using HDMI 1.3 features supporting 1080p full HD, Deep Color, Lip-Sync, Dolby TrueHD, DTS-HD MA, and 3DTV pass-through. The audio from both the HDMI and coax inputs is sent to the coax and optical outputs as compressed AC-3 digital audio and to separate six-channel audio on the RCA and binding post connectors. Up to 5.1 channels of LPCM, Dolby Digital, and Dolby Pro Logic II is decoded on the output. Speakers can be connected to the binding posts using the built-in amplifier, delivering 25 watts per channel RMS. The audio can also be sent to an external power amplifier using the RCA connectors. The front-left and front-right channels use bi-amplification to enhance the sound quality. The Home Theater Audio Processor features an easy-to-read LCD display with extensive features such as individual control of speaker size, distance location, and volume up/down. Control is available using the front panel push buttons or using the included IR remote. Specifications: Maximum Pixel Clock: 225 MHz Power Amplifier Channels: 7 Power Output: 25W RMS per channel into 8 ohms, 50W RMS per channel into 4 ohms HDMI Inputs: (2) HDMI female Type A 19-pin, Locking, (2) HDMI female Type A 19-pin HDMI Output: (1) HDMI female Type A 19-pin, Locking IR Extender connector: (1) 3.5mm mini-stereo jack Digital Audio Inputs: (1) S/PDIF coaxial, (1) TOSLINK® optical Speaker Outputs: (7) pairs of five-way binding posts Analog Audio Outputs: (7) RCA type, pre-amp level Subwoofer Output: (1) RCA type, pre-amp level Signal-to-Noise Ratio: > 90dBA THD: <0.1% at 1 kHz Frequency Response: 20Hz-20kHz ± 0.5dB Trigger Input: (1) Phoenix-type terminal block; +3 to +12V DC, 100mA max. Trigger Output: (1) Phoenix-type terminal block; +12V DC, 100mA max. RS-232 Port: (1) DB-9, female Power Supply: 24V DC with locking connector Dimensions: (W x H x D): 14.75" x 2.5" x 6.9" (375mm x 64mm x 175 mm) Shipping Weight: 10 lbs (4.5 kg) Features: Supported HDMI Features: * Resolutions up to 1080p Full HD * HDCP compliant * 12-bit Deep Color * 3DTV pass-through * Lip Sync pass-through Supported audio formats: up to 5.1 channels of Dolby Digital, Dolby® Pro Logic, Dolby Pro Logic II, and LPCM 7 channels of pre-amp level analog audio outputs Subwoofer pre-amp level output 7 channels of amplified audio output up to 50 Watts per channel Two sets of front left and right amplified and pre-amp level outputs for use in bi-amplified systems 5-way Binding Post speaker terminals Test tone for speaker system set-up LCD status display Front panel buttons for power, volume, mute, source, and menu navigation Hand-held remote control IR control via front panel sensor and rear panel IR Extender input Serial (RS-232) control for automation Trigger Input for remotely powering on the Audio Processor Trigger Output for power on of outboard power amps and displays Field-upgradable firmware via RS-232 port External/Internal EDID management Locking power supply connector Compact size Brand Gefen Type A/V Receiver Number of Channels 5.1 Model GTV-HT-AUDPROCN-CO Surround Sound Formats Dolby Surround
