$225

Backflow preventer assembly FEBCO 825 A

Posted over 2 years ago in Ontarioville, IL

Listed in categories:

Sold by

Get a second opinion

Chat securely on the app

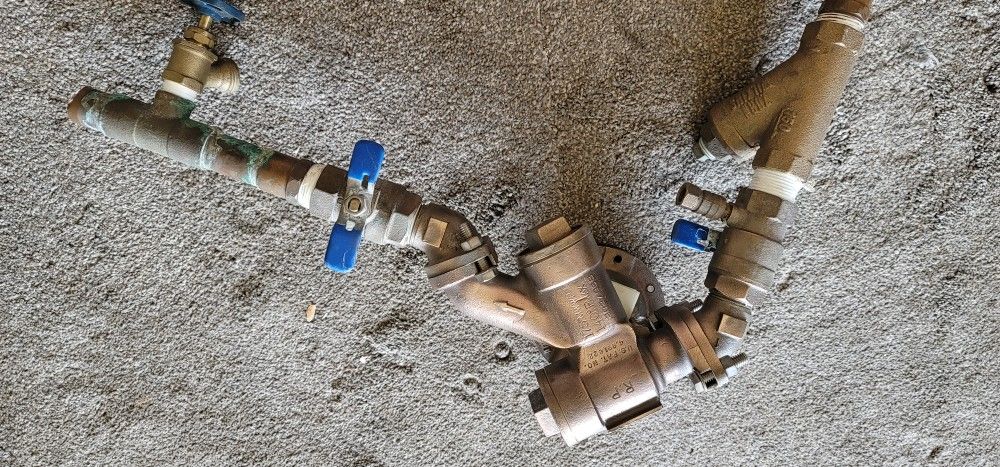

Backflow preventer assembly FEBCO 825 A

Additional images

Description

Febco 825YA Angle RPZ Backflow Preventer 1 in. FPT Size: 1 in. Max Working Pressure: 175 PSI Connection: Female Pipe Thread Features & Benefits Series FE825YA Small Footprint "N-Shape" Design Reduced Pressure Zone Assemblies are used to protect against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. They are also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. They feature a bronze body and threaded ball valve shutoffs. Maximum Working Pressure: 175 psi (12.1 bar). Product Details Pressure - Temperature Maximum Working Pressure: 175 psi (12.1 bar) Hydrostatic Test Press: 350 psi (24.1 bar) Temperature Range: 32 F to 140 F (0 C to 60 C) Materials Valve Body: Cast Copper Silicon Alloy Elastomers: Nitrile Seat Discs Diaphragms: Nitrile, fabric reinforced Springs: Stainless Steel Approvals - Standards AWWA C511 Conformance Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California. Typical Installation: FE825YA-100 1 inch Angle RPZ Assemblies Features & Benefits Installation versatility simplifies new and retrofit installations.. Eliminates pipe elbows, nipples, and unions from the installation. Reduces installation time, labor costs. and materials. Integral flanged union connections allow assembly to be removed from the line for freeze protection or maintenance without danger of spool substitution. Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California. Modular relief valve and check valve internal components for ease of maintenance. Smaller, less costly protective enclosure can be used to provide freeze and vandalism protection due to compact size of valve. Field tested design for reliability and performance. Replaceable seat rings for longer valve life. Low head loss for optimum performance.

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

Used (normal wear)
