Craftsman 1/2 inch Wood Shaper

$150

Posted about 14 hours ago in Snohomish, WA

Condition: Used (normal wear)

Listed in categories: Home & Garden - Tools & Machinery - Power tools

Chat securely on the app

Sold by

Craftsman 1/2 inch Wood Shaper

Additional images

Details

Power Source

Corded electric

Type

Rotary tool

Brand

Craftsman

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Description

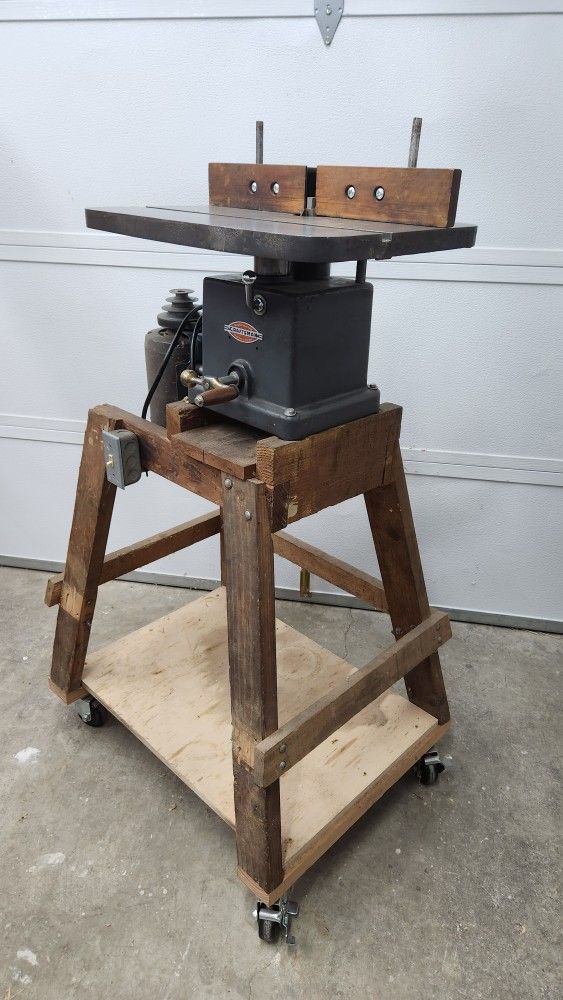

Vintage Craftsman 1/2 inch spindle Wood Shaper model 101.23810; sturdy cast iron; manufactured in 1948, 1949, or 1950. Table is 21x15 inches; also functions as a router table and spindle sander. Completely rebuilt with new premium SKF bearings (high speed, maintenance free); great condition, ready to use immediately. Newer 3/4hp motor, 3450rpm, 9.5a @ 115v; runs great. Included pulleys enables spindle to run at approximately 8270rpm, 7230rpm, 5170rpm, and 4130rpm. (Highest speed for shaping; lowest for sanding.) Mounted on rolling base; comes with 90 degree v-groove shaper bit . Additional info from Craftsman’s 1950 Power Tools catalogue: • Built for high speed light duty production work. Cuts smoothly and rapidly at all possible angles to the grain of the wood. • Extra-large heavy-duty table. 21x15 inches. Bevel gears and screw mechanism move table up and down. Fence is adjustable with one side movable in or out for planning operations. Scale shows depth of cut. • Fixed spindle construction. Spindle and bearing assembly mounted in frame. Cutters prevented from coming loose by keyway in shaft with keyed washer. • Built-in motor mount SPECIFICATIONS • Cutter height: 1-1/2 inches • Cutter bore: 1/2 inch • Spindle bearings: 2 sets precision ball • Table size: 21x15 inches • Miter gauge slot: 3/4 inches wide; 3/8 inches deep • Right fence face adjustment: up to 1/2 inch • Spindle: 1/2 inch; 1/2x24 thread • Spindle speed (recommended): 8270 rpm • Machine pulley (included): 1-3/4 inch • Motor recommended (minimum): 1/2hp 3450rpm • Mounting dimensions: 10-3/4 x 9-1/2 • Over-all dimensions: height 18-1/4; width 16; depth (without motor) 27 See also: User manual (101.23810): https://offerup.com/redirect/?o=aHR0cDovL3ZpbnRhZ2VtYWNoaW5lcnkub3JnL3B1YnMvZGV0YWlsLmFzcHg/aWQ9MjYzMQ== 1948 Craftsman Power Tools catalogue: https://offerup.com/redirect/?o=aHR0cDovL3ZpbnRhZ2VtYWNoaW5lcnkub3JnL3B1YnMvMjIyLzQ0NjAucGRm 1950 Craftsman Power Tools catalogue: https://offerup.com/redirect/?o=aHR0cDovL3d3dy52aW50YWdlbWFjaGluZXJ5Lm9yZy9wdWJzL2RldGFpbC5hc3B4P2lkPTI5NTg=
