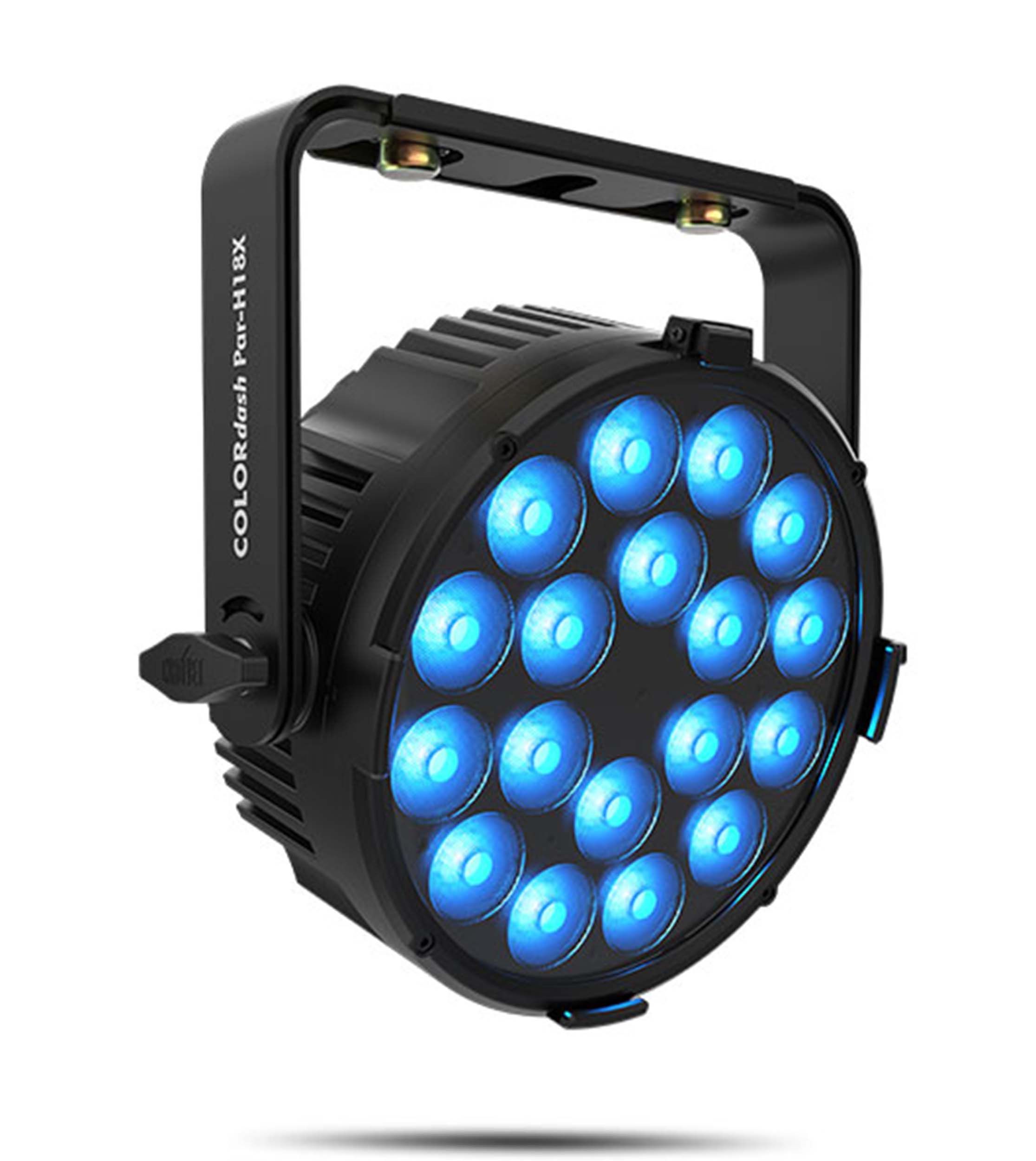

Chauvet Pro COLORdash PAR H18X, RGBWA+UV LED Wash Light

The Chauvet Pro COLORdash PAR H18X, RGBWA+UV LED Wash Light efficiently delivers a broad palette of subtle to saturated color with beautiful precision and over 5,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X is a die-cast workhorse that withstands the rigors of real-world use while offering convenient operation and excellent performance, in the rig or on the floor, live or on camera.

Product Specifications:

Optical

Light Source: 18 LEDs (HEX-color RGBWAUV) 150 W, (550 mA), 50,000 hours life expectancy.

Color Temperature (range): 2800 to 10,000K

Color Temperature (at full): 9507K

Beam Angle: 23.6°

Field Angle: 38.6°

Lumens: 5,736

Illuminance: 1,207 lux @ 5 m

Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 20 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 12.45 x 4.38 x 8.68 in (316.4 x 111.5 x 220.7 mm)

Weight: 10.4 lb (4.7 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast

Accessory Holder/Gel Frame Size: 9.25 in (235 mm)

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 6, 8, 9, 13 or 14

Modes/Personalities: 3 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V

Power and Current: 155 W, 1.305 A @ 120 V, 60 Hz

Power and Current: 153 W, 0.773 A @ 208 V, 60 Hz

Power and Current: 152 W, 0.704 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

COLORdash PAR H18X

Seetronic Powerkon IP65 power cord

Gel frame holder

Omega bracket

Quick Reference Guide or User Manual

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3- or 5-pin DMX Cables

Barndoor
