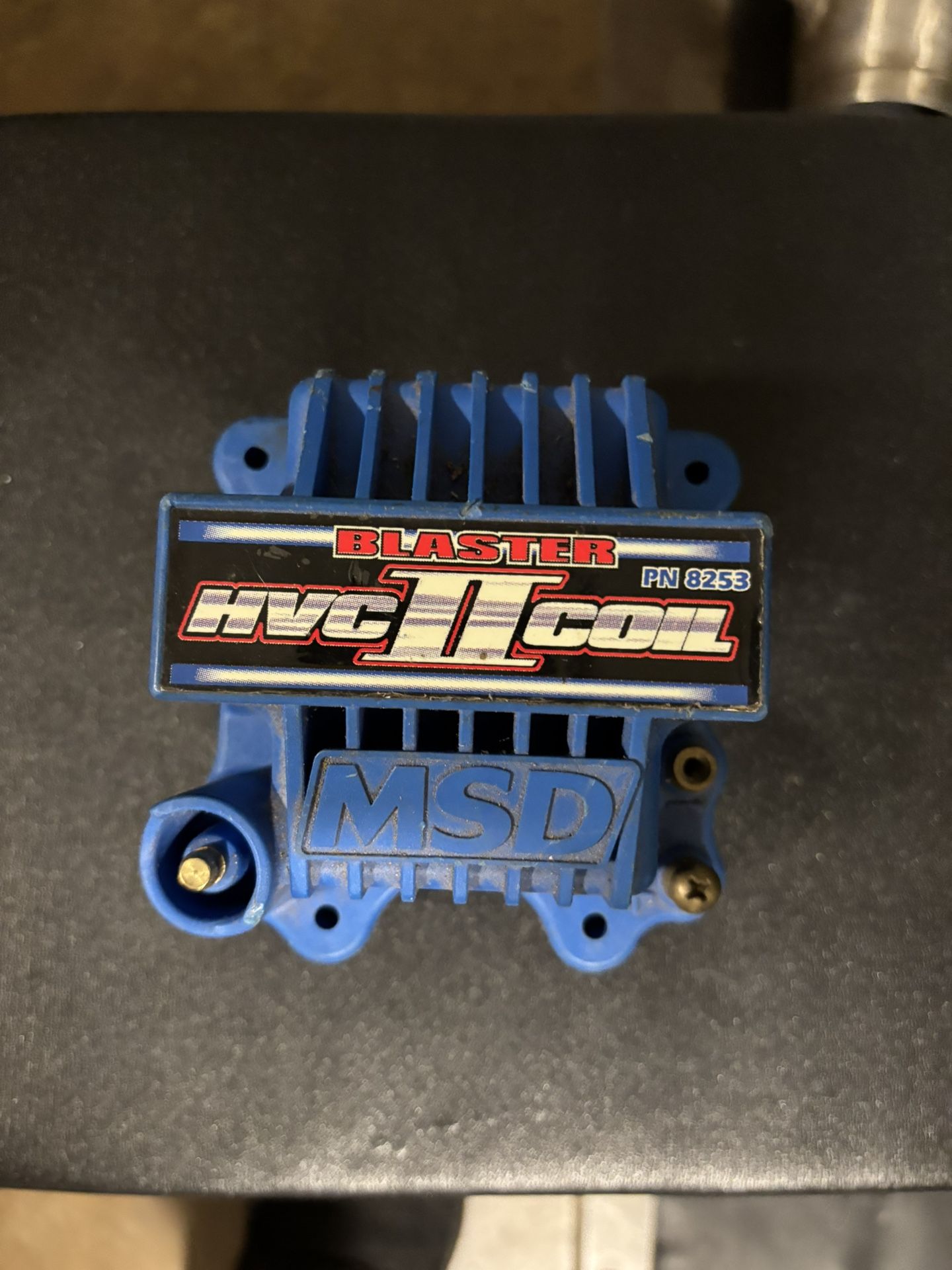

MSD Ignition 8253 Blaster HVC II Coil For Use With 6-Series Ignition Controls

Got it but didn’t use been sitting on my shelf Blaster HVC II Coils MSD Ignition 8256 Blaster HVC |I Coil is the latest coil to be built entirely in-house at MSD. It is designed to be used with MSD 6 and SCI Series Ignition Controls. Coil Specs: • Turns ratio: 100:1 • Primary resistance: .16 OHMs • Secondary resistance: 630 OHMs • Inductance: 3.5 mH • Maximum voltage: 44,000 Volts (Tested with Digital 6 Plus) • Peak current: 450 mA • Spark duration: 450 uS Features: • Designed for high rpm, long duration applications using MSD 6 Series Ignitions • New U-core winding design produces more voltage and current • 100:1 turns ratio and lower primary resistance produce high voltage output • Windings are encased in fracture resistant compound for vibration resistance • Dupont Rynite housing with isolated tower and brass primary terminals • Supplied with rubber shock mounts • No CARB Exemption Order Number Note: Not legal for sale or use on pollution-controlled vehicles. 100:1 turns ratio and lower primary resistance produce high voltage output Emissions Note: This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

Condition

Used (normal wear)

Brand

MSD
