Brown Tree Cutter

Brand

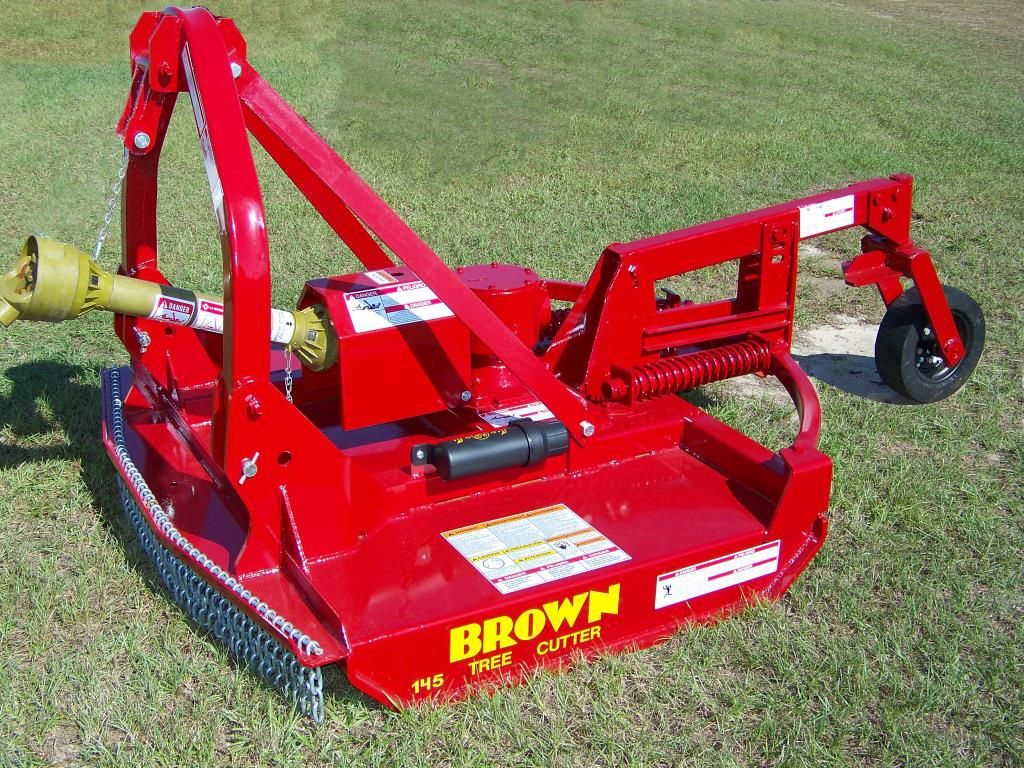

Brown tree cutter TCO-2505C

BROWN TREE CUTTER 5', OPEN DECK, 540RPM GEARBOX SKU TCO-2505C Tractor mounted heavy duty brush cutter, designed to maintain right-of-ways, utility lines, forest trails, and anywhere serious brush and tree maintenance is required. 145 HP GEAR BOX The Brown 2000 Series Open Deck Tree Cutter incorporates a newly designed twin coil spring pressure bar assembly to give added strength, durability and better operation. The new deck design reduces the amount of discharged debris. Front safety chain curtain helps control frontal discharge. Up to 625 lbs. Blade Bar generates a tremendous flywheel effect giving this cutter its terrific cutting ability. Over-running slip clutch allows the drive shaft to stop after PTO is disengaged – Protects tractor PTO system. 4 disc slip clutch. 810 RPM blade bar allows blade contact 54 times per second. Front Safety Chain Curtains Standard. Additional discharge protection. Model Specification: Deck Type: Open Deck Gear Box H.P. @ RPM: 145 H.P. Gear Box @ 540 RPM Cutting Width: 60" Weight: 1,675 Lbs. *Required Horsepower: *50 to 90 H.P. Cutting Height: 1 1/2" to 12" Deck Width: 69" Frame: 3 x 3 x 1/4" Tubing Deck: 3 / 16" Plate Reinforced A-Frame: 3 x 3 x 1/4" ASAE Hitch Cat. 11 with Flex Link Blades: 4 - 1/2 x 5" "Ultra Kor" Blade Holder: 315 Lbs. 3/4" Plate Drive Shaft: Fully Shielded - Telescoping with 4 disc slip clutch Tail Wheel: 500 x 8 Solid laminated rubber tire, fork mounted, 360 degree caster Rear Guard / Rear Deck: 2 Coil springs, collapsible push bar type Gear Box: 145 H.P. with 1 3/4" input shaft and 2 - 13/16" output shaft Slip Clutch: 100 H.P. - 4 disc clutch with over-run Material Size: 6" Maximum Hydraulics: Not Applicable Weight: 1675 lb. CAN CUT UP TO 5” TREES Could deliver for a FEE .
