Yamaha RX-V1000 Receiver

Features

Headphone jack, Line-in jack, Line-out jack, Type 5.1 channel audio line-in, RF input, S-Video input, S-Video output, SPDIF input, SPDIF output, audio line-in, audio line-out, audio line-out (multi zone), center channel audio output, component video input, component video output, composite video output (multi zone), composite video/audio input, composite video/audio output, headphones, main channel input, main channel output, monitor output, rear center channel output, rear channel output, remote control, serial, speakers output, subwoofer output, turntable audio input • Qty 2, 3, 4, 5, 7 • Connector Type 4 pin mini-DIN, 9 pin D-Sub, RCA, RCA x 2, RCA x 3, RCA x 6, TOSLINK, banana/spade x 2, phone stereo 6.3 mm

Signal Type

AM/FM

Model

RX-V1000

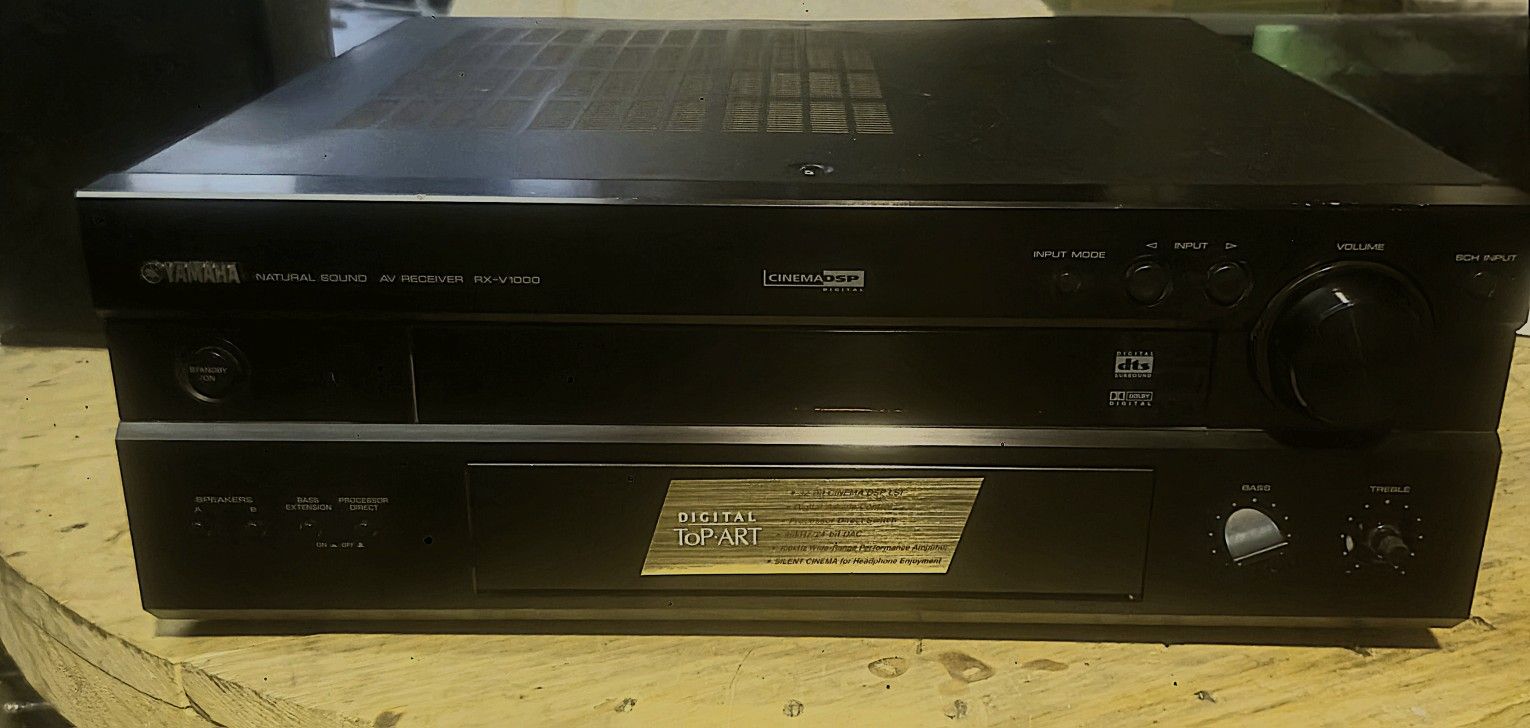

Receiver used but in good condition. Missing the tuner knob but everything works good. Receiver Yamaha RX-V1000 5.1 SPECS AUDIO • Response Bandwidth 10 - 100000 Hz • Signal-To-Noise Ratio 98 dB • Total Harmonic Distortion 0.04 % AUDIO SYSTEM • Type AV receiver • Subcategory AV components • Functions AV receiver • Sound Output Mode Surround Sound • Audio D/A Converter 24bit / 96kHz • Built-in Decoders DTS decoder, DTS-ES decoder, Dolby Digital, Dolby Digital Matrix 6.1, Dolby Pro Logic • Surround Sound Effects CINEMA DSP, Virtual CINEMA DSP • Sound Effects BASS EXTENSION • Surround System Class 5.1 channel • Digital Sound Processor (DSP) Yes • DSP Preset Qty 41 • DSP Presets 6ch stereo, Adventure, Church, Concert Hall, Disco, Enhanced, Game, General, Jazz club, Mono Movie, Rock Concert, Sci-Fi, Silent Cinema, Spectacle, Stadium, TV Sports • Additional Features A-B speaker switch, on-screen display, pink noise generator • Bass Control Yes • Treble Control Yes • Built-in Clock sleep timer BUILT-IN DISPLAY • Type fluorescent TUNER • Radio tuner - AM/FM - digital • Response Bandwidth 20 Hz • Signal-To-Noise Ratio 76 dB • Total Harmonic Distortion mono: 0.2%, stereo: 0.3% • Station Memo Display Yes AMPLIFIER • Input Impedance 47 KOhm • Input Sensitivity 150 mV AMPLIFIER OUTPUT DETAILS • Output Power / Channel 100 Watt • Output Impedance / Channel 8 Ohm • Frequency Response 20 - 20000 Hz, 20 - 22000 Hz • Total Harmonic Distortion (THD) 0.04 % • Channel Type center, main, rear • Channel Qty 1, 2 RADIO • Tuner Type digital • Tuner Bands AM/FM • Tuning Display fluorescent display • Preset Station Qty 40 • Auto Preset Memory Yes • Antenna Form Factor loop AM / wire FM INPUTS & OUTPUTS • Headphone Jack Yes • Coaxial Digital Input Yes • Optical Digital Input Yes • Optical Digital Output Yes ACCESSORIES • Supported Devices CD player / changer, DVD player, MD player, TV, VCR, cable box, cassette deck • Features LCD display, learning, macro function, multi-brand compatibility, programmable AUDIO SPECIFICATIONS • Type Amplifier, Radio tuner • Frequency Response 10 - 100000 Hz, 20 - 15000 Hz • Signal-To-Noise Ratio 76 dB, 98 dB POWER • Power Outlets 2 AC outlets CONNECTIONS • Type 5.1 channel audio line-in, RF input, S-Video input, S-Video output, SPDIF input, SPDIF output, audio line-in, audio line-out, audio line-out (multi zone), center channel audio output, component video input, component video output, composite video output (multi zone), composite video/audio input, composite video/audio output, headphones, main channel input, main channel output, monitor output, rear center channel output, rear channel output, remote control, serial, speakers output, subwoofer output, turntable audio input • Qty 2, 3, 4, 5, 7 • Connector Type 4 pin mini-DIN, 9 pin D-Sub, RCA, RCA x 2, RCA x 3, RCA x 6, TOSLINK, banana/spade x 2, phone stereo 6.3 mm • Connector Location front, rear DIMENSIONS & WEIGHT DETAILS • Audio System Component AV receiver • Width 17.1 in, Depth 17 in, Height 6.7 in, Weight 33.1 lbs

Brand

Yamaha

Playable Media

Digital media player, Cassette tape, CD, DVD, CD+G karaoke, Record player
