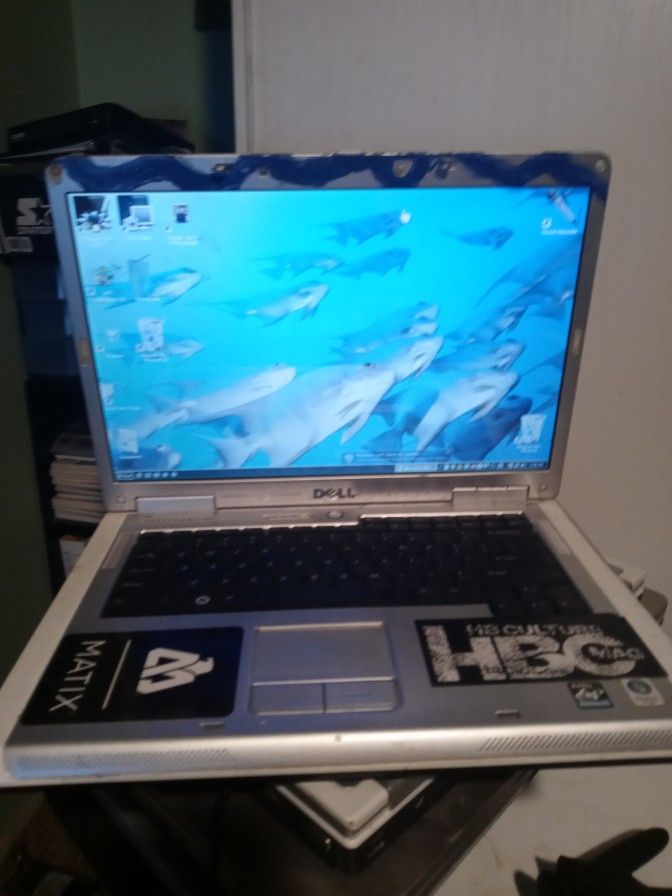

laptop with charger Dell Inspiron 1501

Model

inspirion

Brand

dell

Dell Inspiron 1501 Specifications Processor Processor type AMD™ Turion™ or Sempron™ L1 cache 128 KB L2 cache 256 KB, 512 KB, 1,024 KB External bus frequency (front side bus) 533 MHz System Information System chip set ATI RS485M / SB600 Data bus width 64 bits DRAM bus width dual-channel (2) 64-bit buses Processor address bus width 40 bits Flash EPROM 1 MB Graphics bus Internal PCI bus 32 bits ExpressCard ExpressCard controller ATI SB600 ExpressCard connector one ExpressCard slot (54 mm) Cards supported ExpressCard/54 (54 mm) 1.5 V and 3.3 V ExpressCard connector size 26 pins 132 Specifications 3-in-1 Media Memory Card Reader 3-in-1 media memory card controller Ricoh R5C832 3-in-1 media memory card connector 3-in-1 combo card connector Cards supported SD/SDIO/MMC 3-in-1 media memory card connector size 30.55 mm x 28.9 mm x 4.55 mm Memory Memory module connector two SODIMM connectors Memory module capacities 256 MB, 512 MB, 1 GB Memory type 1.8-V SODIMM DDR-2 Minimum memory 256 MB Maximum memory 2 GB Ports and Connectors Audio microphone connector, stereo headphone/speakers connector Mini-Card one Type IIIA Mini-Card slot Modem RJ-11 port Network adapter RJ-45 port USB four 4-pin USB 2.0-compliant connectors Video 15-hole connector Specifications 133 Communications Modem: Type v.92 MDC HD Controller softmodem Interface Azalia Interface MDC Network adapter 10/100 Ethernet LAN on system board Wireless internal PCI-e Mini-Card WLAN Video NOTE: Optional video controller upgrades are available for your computer subject to availability at the time of purchase. To determine the configuration of your computer, see "Determining Your Computer’s Configuration" on page 15. Video type: integrated on system board Video controller ATI R485M Video memory up to 128 MB of shared memory (with 256 MB of system memory) or 224 MB of shared memory (with 512 MB of system memory) LCD interface LVDS Audio Audio type two-channel high-definition audio codec Audio controller Sigmatel STAC9200 Codec Stereo conversion 24-bit (analog-to-digital and digital-toanalog) Interfaces: Internal Azalia High Definition Audio External microphone-in connector, stereo headphones/speakers connector Speaker two 8-ohm speakers Internal speaker amplifier 1-W channel into 8 ohms Volume controls keyboard shortcuts, program menus 134 Specifications Display Type (active-matrix TFT) 14.1-inch WXGA and 15.4-inch WXGA Display area (15.4-inch): Height 207 mm (8.2 inches) Width 331.2 mm (13.0 inches) Diagonal 391.2 mm (15.4 inches) Display area (14.1-inch): Height 189.6 mm (7.5 inches) Width 303.3 mm (11.9 inches) Diagonal 357.7 mm (14.1 inches) Maximum resolution 1280 x 800 at 262,144 colors Refresh rate 60 Hz Operating angle 0° (closed) to 180° Viewing angles: Horizontal ±40° minimum Vertical +10°/–30° minimum Pixel pitch: 15.4-inch 0.259 mm 14.1-inch 0.237 mm Controls brightness can be controlled through keyboard shortcuts (see page 36) Specifications 135 Keyboard Number of keys 87 (U.S. and Canada); 88 (Europe); 91 (Japan) Layout QWERTY/AZERTY/Kanji Touch Pad X/Y position resolution (graphics table mode) 240 cpi Size: Width 73.0-mm (2.9-inch) sensor-active area Height 42.9-mm (1.7-inch) rectangle Battery Type 9-cell "smart" lithium ion 6-cell "smart" lithium ion 4-cell "smart" lithium ion (when available) Dimensions: Depth 60.1 mm (2.37 inches) (9 cell) 49 mm (1.93 inches) (6-cell) 49 mm (1.93 inches) (4-cell, when available) Height 24 mm (0.94 inch) Width 206.8 mm (8.14 inches) Weight 0.48 kg (1.06 lb) (9 cell) 0.32 kg (0.7 lb) (6 cell) 0.25 kg (0.55 lb) (4 cell, when available) Voltage 11.1 VDC (6 cell and 9 cell) 14.8 VDC (4 cell, when available) 136 Specifications Charge time (approximate): Computer off 3.5 hours (9-cell) 2.5 hours (6-cell) 2.5 hours (4-cell, when available) Operating time Battery operating time varies depending on operating conditions and can be significantly reduced under certain power-intensive conditions. See "Power Problems" on page 74.
