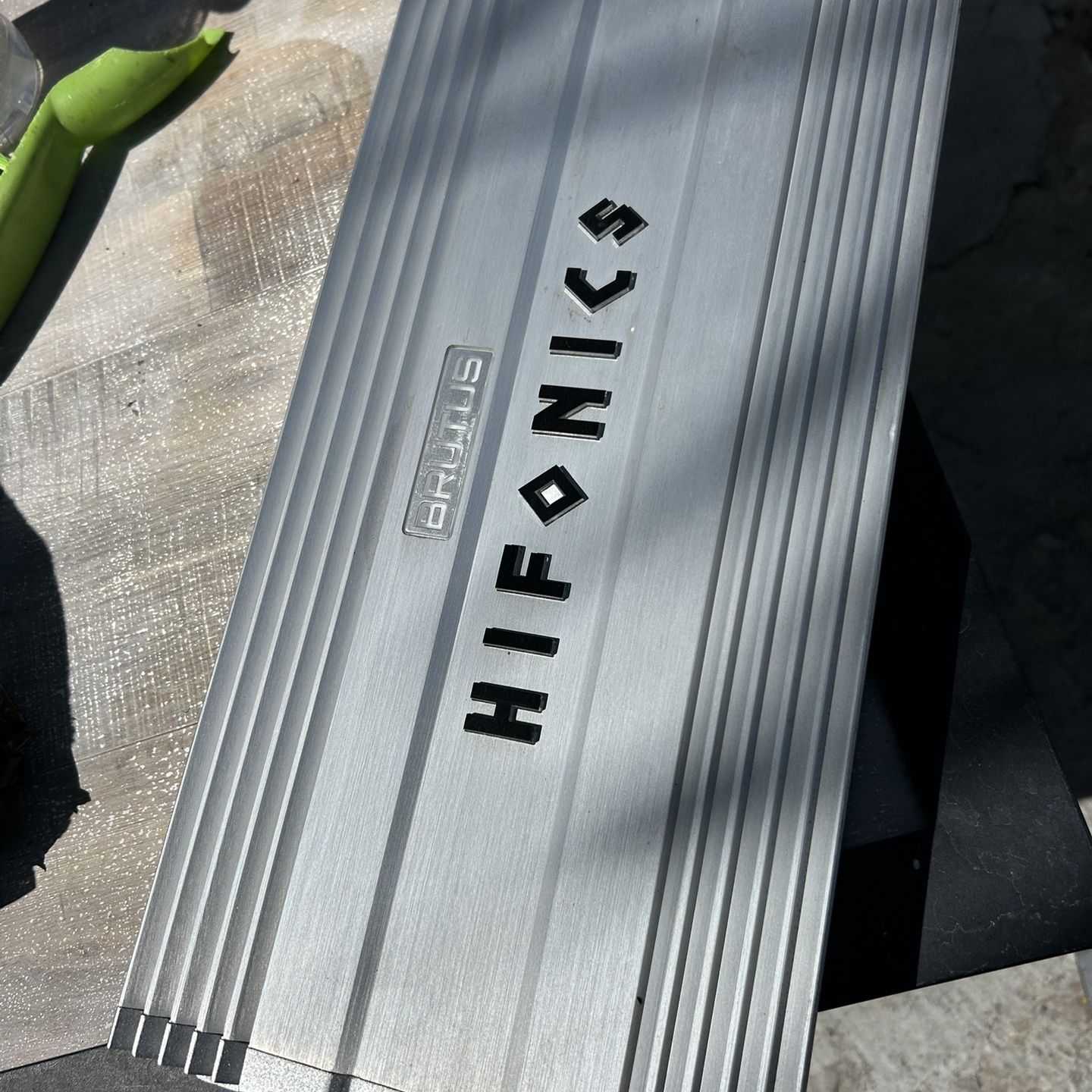

Hifonics Brutus 4 Channel Amp 1800 X4

Features: •Brutus Gamma Series 4-Channel Amplifier Super A/B Class™ designs employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption •Dual LED indicators: green for power and red for protection •Lighted connectors and blue wash of light from the underside of the heat-sink for an excellent look at night •Integrated heavy-duty aluminum alloy vented heat sink for maximum heat dissipation with illuminated •Built in Electronic Equalizer •Mono-Block channel operation •Provides three way protection circuitry, which includes thermal, overload, and speaker short protection •Silver nickel-plated RCA level inputs •Silver nickel-plated screw terminals •Low Level RCA Inputs and Outputs ••Requires 4 gauge power and ground wiring for installation •Input sensitivity is 200 mV to 9V (variable level) Subwoofer phase: 0° - 180° •Variable high-pass filter: 10 Hz - 2,5000 Hz, 24 dB/ octave •Variable low-pass filter: 30 Hz - 2,5000 Hz, 24 dB/ octave •Bass EQ boosts from 0 to +10dB at 45 Hz •Variable sub-sonic filter from 15 Hz - 35Hz •Frequency response: 10 Hz - 500 Hz •Signal to Noise ratio: >90dB •Total Harmonic Distortion: <0.10% ••••Use extreme caution when wiring this amplifier, it has the capability to destroy your vehicles electrical system ••••• ••Fuse rating: 100 amp MAXI fuses ••Dimensions: 16.75" (L) x 2.375" (H) x 8.25" (W) 280.00 obo Kenwood pioneer jvc Sony alpine kicker Kole Jensen jl audio Mtx audio alphsonik viper power bass lanzar skar audio sundown audio

Condition

Used (normal wear)

Features

RMS Power Rating: 4 ohms: 200 watts x 4 channel 2 ohms: 400 watts x 4 channel 2 ohms, Bridged: 800 watts x 2 channel

Connectivity

Class-D Monoblock Amplifier Designed as a dedicated full range audio amplifier Stable in 1 ohm, 2 ohm and 4 ohm loads 4 ohms: 200 watts x 4 channel 2 ohms: 400 watts x 4 channel 2 ohms, Bridged: 800 watts x 2 channel

Model

Brutus

Type

4 channel car amplifier

Brand

Hifonics Brutus
