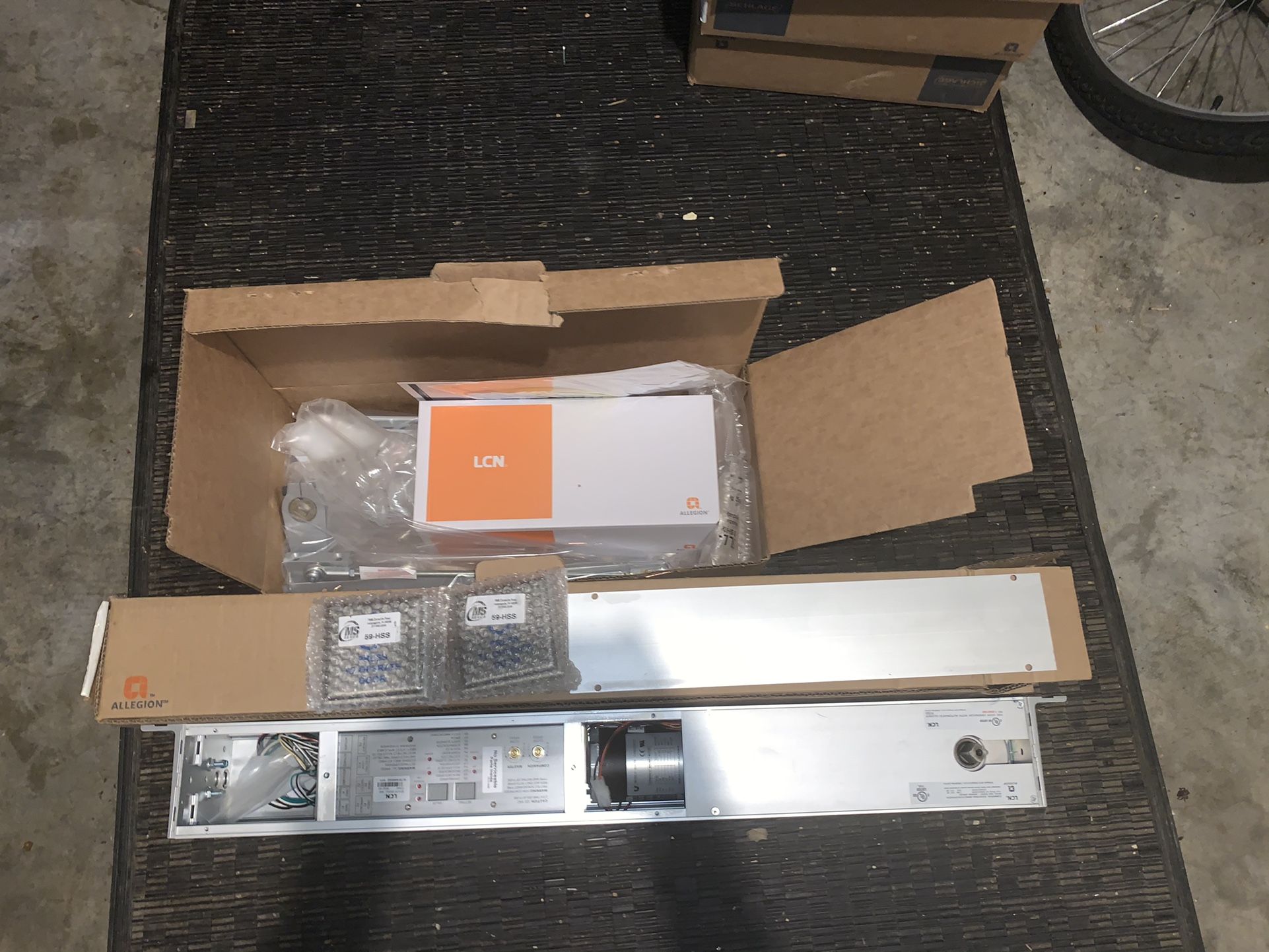

9542 LCN Senior Swing Push - 120VAC, 1A

The 9530 SENIOR SWING® by LCN is an ADA door operator that is a two-in-one swing door operator. SENIOR SWING® operators when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic. Features -Push ‘N Go permits non-switch activation -Power Boost provides additional latching force -Electromechanical unit with microprocessor control -Digital keypad for easy setup -Tested internally to over 10,000,000 cycles -Meets International Building Code requirements and ANSI A156.19 -UL approved for fire doors -9540 series operator is shipped with motor gearbox, control box, regular arm, header, and mounting hardware. Actuators available separately. -Single door, surface mounted. -Meets ADA requirements (power mode only). -Handed product. -90 degree opening -36” header length is standard. Specify length 33” to 49” max. -Double door header available up to 98”, specify other length 49” to 98” max. -Adjustable hold open period of 1 to 32 seconds in automatic or manual mode. The 9540 Series is fully compliant with UL 325 & UL 1998 and meets the provisions of ANSI A156.19. The 9540 Series is UL listed for fire-rated applications. The 9540 Series also meets the provisions of the Americans with Disabilities Act.
