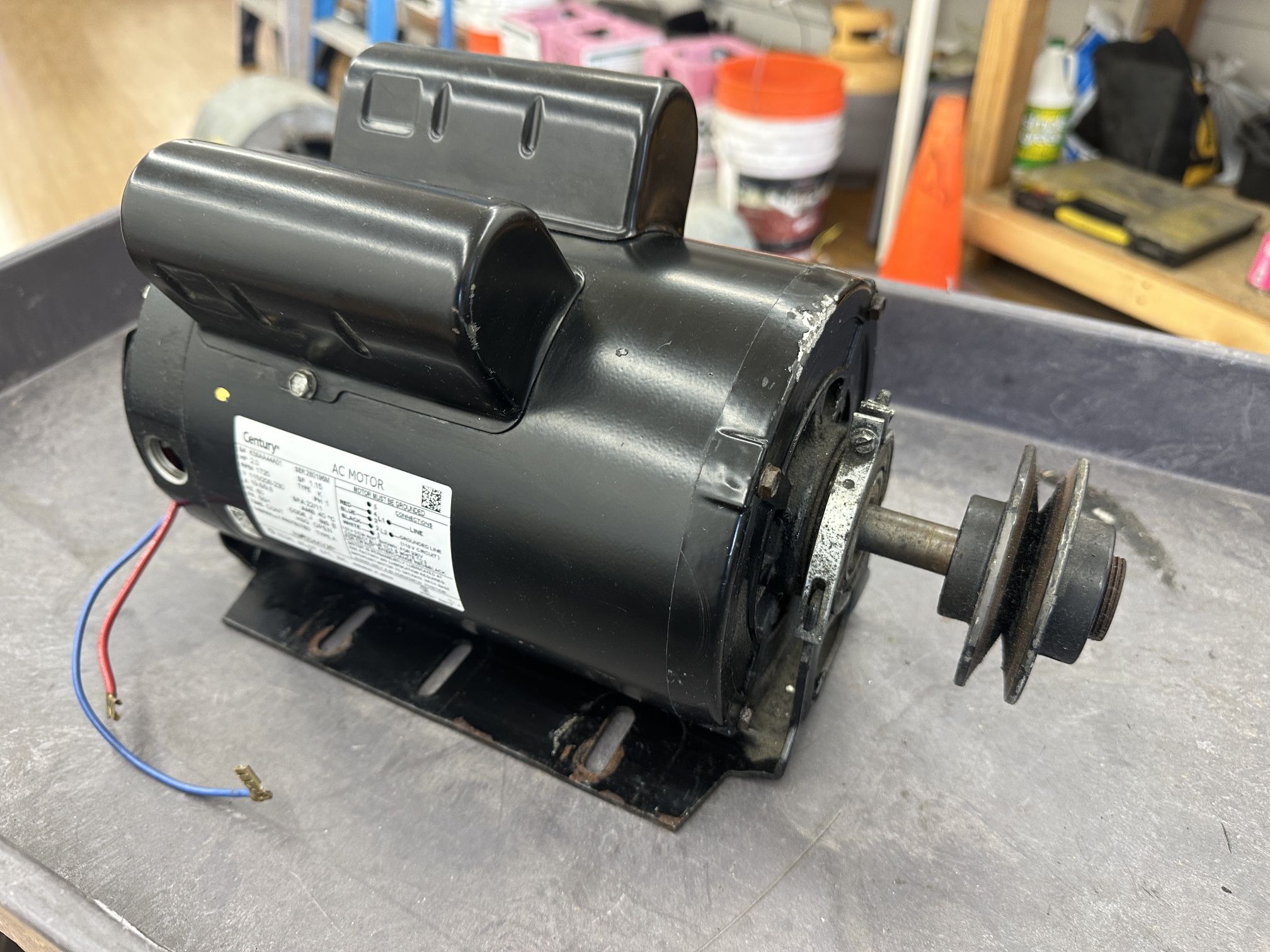

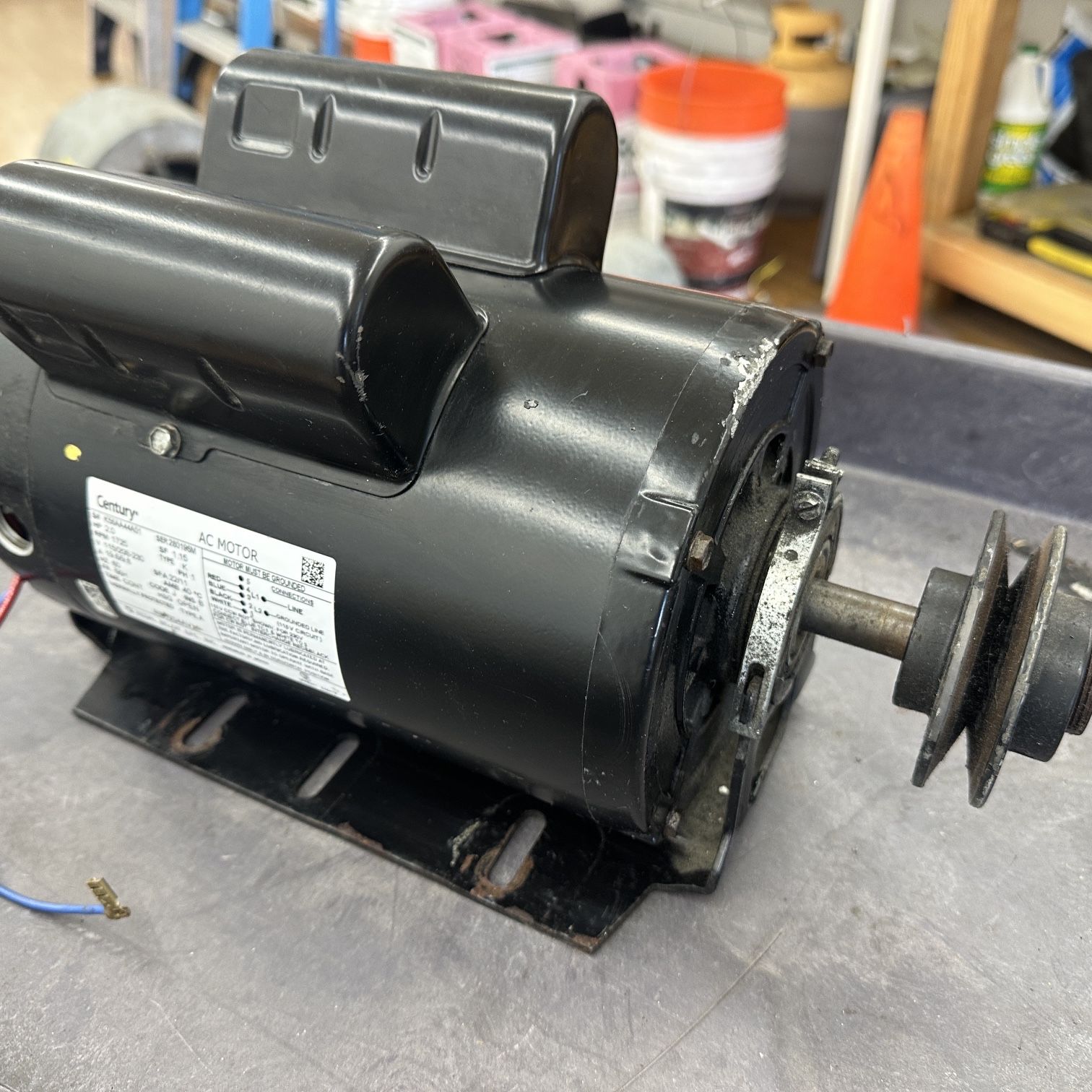

CENTURY Belt Drive Motor K56AA44A01

In very good condition, practically new! CENTURY Belt Drive Motor: 1 Speed, Open Dripproof, Cradle Base Mount, 2 HP, 1,725 Nameplate RPM Capacitor-start belt drive HVAC AC motors have a capacitor to provide additional power during startup for higher starting torque. This higher torque allows these single-phase motors to move heavier loads at lower speeds. BrandCENTURYManufacturer Part NumberRB1204AV1Motor ApplicationHVAC/RMotor Sub ApplicationBelt Drive Fan/BlowerPhaseSingleMotor DesignCapacitor-StartHP2Nameplate RPM1,725No. of Speeds1Voltage115/208-230V ACFull Load Amps19.6/9.8 AFrame56HUsable @ 208VYesUsable @ 200VNoHz60 HzMotor Service Factor1.15Motor Thermal ProtectionAutoIns. ClassBMax. Ambient Temp.104 °FDuty CycleContinuousMotor Shaft RotationCW/CCWMotor Enclosure DesignOpen DripproofMotor Mounting TypeCradle BaseMotor Mounting PositionHorizontalMotor Frame MaterialSteelShaft Dia.5/8 inShaft Length2 inMotor BearingsBallOverall Length12-13/16 inLength Less Shaft10-13/16 inBody Dia.6-5/8 inWeight43 lbMounting Stud Pattern4-1/8 in x 4-1/8 inRing to Ring Center10-1/2 inResilient Ring Dia.2-1/2 inStandardsCSARPM Range1,701-1,800UNSPSC(contact info removed)2Country of OriginMexico (subject to change)
