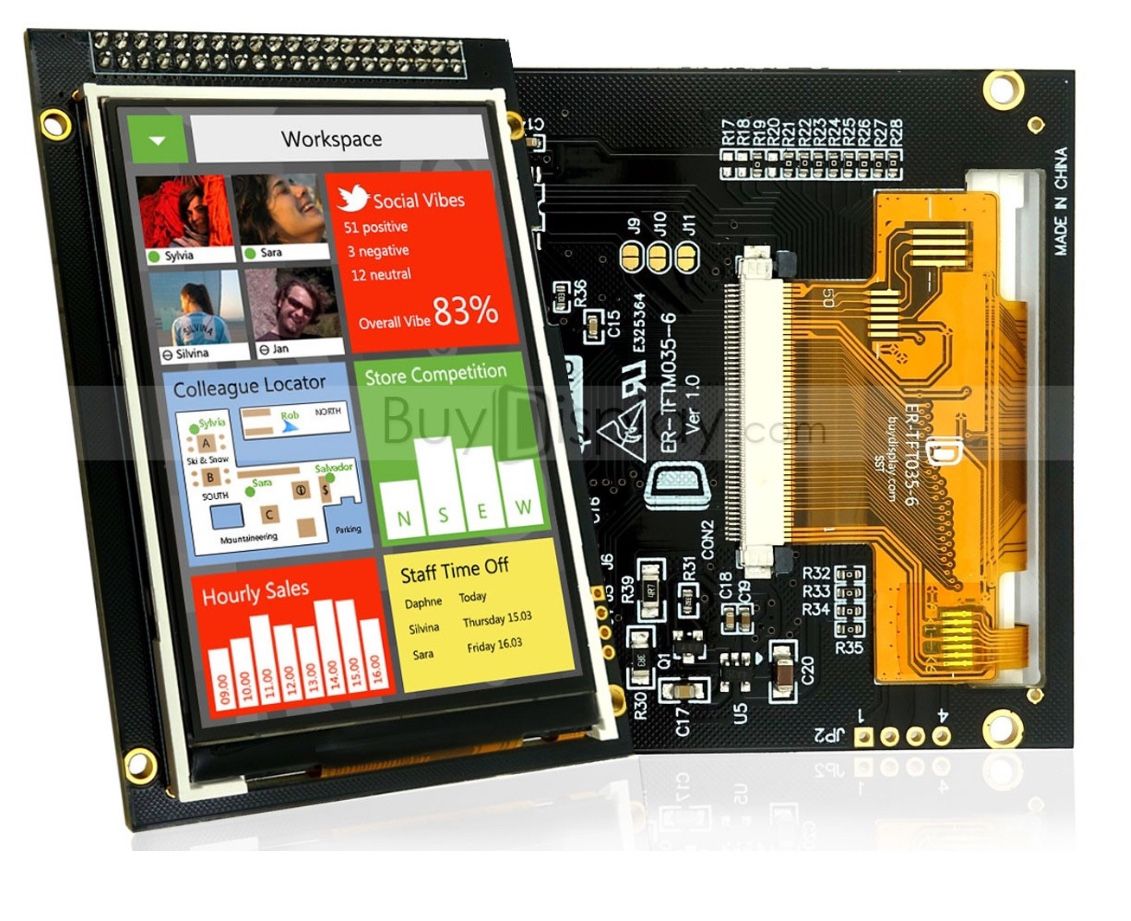

EastRising ER-TFT035-6 LCD 3.5" 320x480 TFT Display Module,OPTL Touch Screen w/Breakout Board .

$35

Posted over 1 year ago in Redmond, WA

Condition: Open Box (never used)

Listed in categories: Electronics & Media - Computers & Accessories - Monitors & Screens

Chat securely on the app

Sold by

EastRising ER-TFT035-6 LCD 3.5" 320x480 TFT Display Module,OPTL Touch Screen w/Breakout Board .

Additional images

Details

Features

Flat screen

Screen Size

3,5

Model

ER-TFT035-6 LCD 3.5" 320x48

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Description

Part Number ER-TFTM035-6 Display Format 320x480 Dots Interface 8080 8-bit Parallel , 8080 9-bit Parallel , 8080 16-bit Parallel , 8080 18-bit Parallel , 3-Wire Serial SPI, 4-Wire Serial SPI, RGB IC or Equivalent ILI9488 Appearance RGB Diagonal Size 3.5” Connection Pin Header, FFC-Connector Outline Dimension 66.4W)x96.7(H)mm Visual Area 50.56x75.04mm Active Area 48.96(W)x73.44(H)mm Character Size No Dot (Pixel) Size No Dot (Pixel) Pitch 0.153x0.177mm IC Package SMT Display Type TFT-LCD Color Touch Panel Optional Yes Sunlight Readable No Response Time(Typ) 20ms Contrast Ratio(Typ) 500:1 Colors 65K/262K Viewing Direction 12:00 Viewing Angle Range Left:70.0 , Right:70.0 , Up:70.0 , Down:50.0 degree Brightness(Typ) 280cd/m2 Backlight Color White Color Backlight Current (Typ) No Power Supply(Typ) 3.3V, 5V Supply Current for LCM(Max) 115mA (Vdd=3.3V) 130mA (Vdd=5V) Operating Temperature -20℃~70℃ Storage Temperature -30℃~80℃

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Additional details

Brand

EastRising
