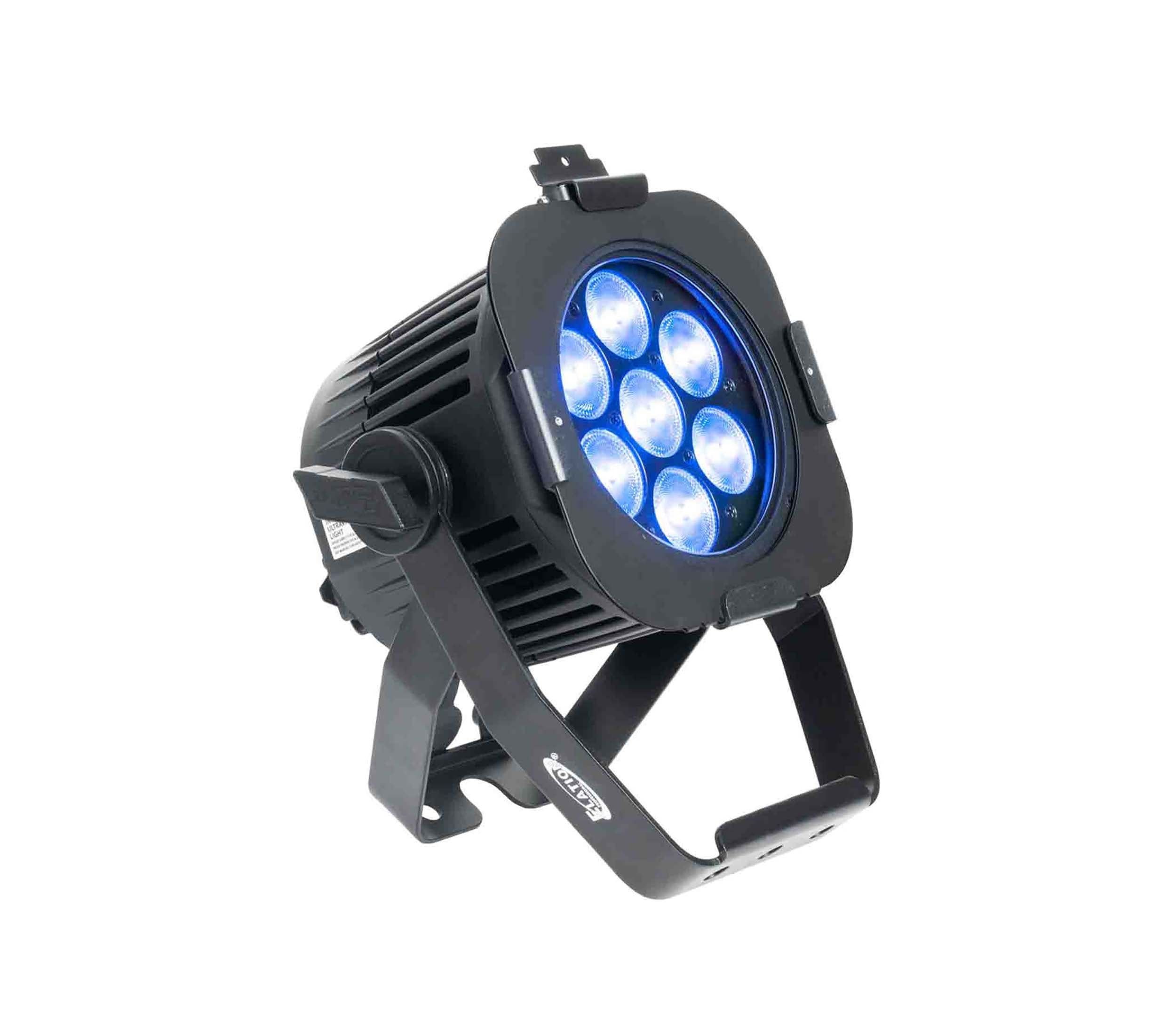

Elation SEV001, 7IP IP65 Outdoor Rated Seven Color Par Wash Luminaire

The Elation SEV001, 7IP IP65 Outdoor Rated Seven Color Par Wash Luminaire with (7) 25W 7-in-1 RGBAW + Lime + UV LEDs (Red, Green, Blue, White, Amber, Lime, and a 395nm UV) producing 3,600 total output lumens and 90CRI. Features include individual hue, saturation, and intensity control, RGB + seven color 3 channel DMX mode, 17° beam and 33° field angles, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (Remote Device Management) protocol support, IP65 rated 5pin DMX and power in/out connections, dual adjustable yoke / floor stand, multiple unit power linking, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), and a rugged powder coated die-cast aluminum exterior. Gel frame and gel frame holder included, optional 4-leaf barn door available.

Product Specifications:

Source:

(7) 25W 7-IN-1 RGBAW + Lime + UV (395nm) LEDs

50,000 Hour Average LED Life

Test lab conditions. May vary depending on several factors including but not limited to Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data:

3,600 Total Lumen Output | 90CRI

6,819 LUX 634 FC @6.6’ (2m) (Full ON)

Effects:

Individual Hue, Saturation, and Intensity Control

RGB + Seven Color 3 Channel DMX Mode

12 Internal Program Macros with Speed and Fade Control

64 Unique 7-Color Macros

Selectable Dimming Curve Effects

Color: RGBAW + Lime + UV (395nm)

Control / Connections:

(7) DMX Channel Modes (15 total channels)

DMX and Manual Control

4 Button Control Panel

180° Reversible OLED Menu Display

Adjustable Refresh Rate (900-25,000 (Hz)

Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)

RDM (Remote Device Management) Protocol Support

IP Rated 5pin DMX and Power In/Out

With Wired Digital Communication Network

Size / Weight:

Length: 12.36”

Width: 12”

Vertical Height: 9”

Weight: 12.8 lbs.
