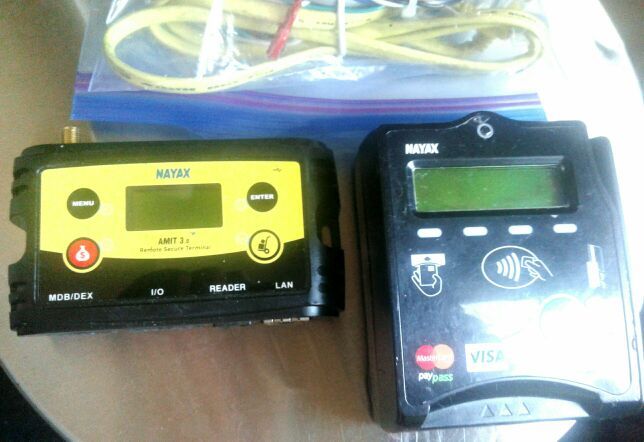

VENDING MACHINE EQUIPMENT AMIT 3.0 is a complete M2M vending & VPSOS Casless Payment Solutions

VPSOS VPOS is easy to install and use and is compatible with all automated machine standards. Nayax takes care of all software updates remotely to ensure that your devices benefit from the latest technology and are up to date with payment standards and requirements. SUPPORTED PAYMENT SCHEMES Contact Card: EMV Level 1 + Level 2 – Certified Contactless: EMV Level 1 – Certified Contactless: EMV Level 2: – Visa PayWave MSD + qVSDC – MasterCard PayPass Mag Stripe Magnetic Stripe Card – ISO7811, Track 1 + Track 2 Other Cards Supported: NFC, MIFARE, HID-iClass Support of Payment Applications – Global and Local Environment TECHNICAL INFORMATION Interface communication – RS232 up to 115,200 kbps 2 X 16 Character LCD display + 4 LEDs + Buzzer + Speaker Transaction start/end button Power Supply: 8 Volt DC – 16 Volt DC Security – Support of DES, 3DES, AES, RSA, SHA1 algorithms On-board SAM: EMV/HID support RF contactless Interface: Frequency – 13.56 MHz, MIFARE, NFC, HID ----------------------'------------------------------------ AMIT AMIT 3.0 is a complete M2M vending telemetry solution ideally suited for unattended machine operators and applications. AMIT 3.0 gives operators the ability to monitor machines in real-time with continuously updated information regarding all aspects of operation including inventory, cash monitoring, alerts, reports, route planning, and remote device control. THIS SECURE TERMINAL ENABLES RELIABLE COMMUNICATIONS ACROSS THE FOLLOWING: External Communication – GSM/GPRS/CDMA/Ethernet/Wi-Fi MDB/Pulse/VCCS/ccTalk DEX/DDCMP/RS232 Interface PERIPHERAL PORTS Mini USB (Host/Device), Ethernet with external Wi-Fi capability 1 X Reader interface 2 X RS232 interface (RS232 or TTL level manageable through software) 2 X Pulse input/output interfaces + pulse input (Inhibit) 2 X Sensors – door open, temperature sensor MAIN FEATURES ARM Technology – Cortex , 32-bit, 168 Megahertz High Security Encryption System: AES/DES/RSA/SSL External flash up to 16 MB MDB Spy –...
