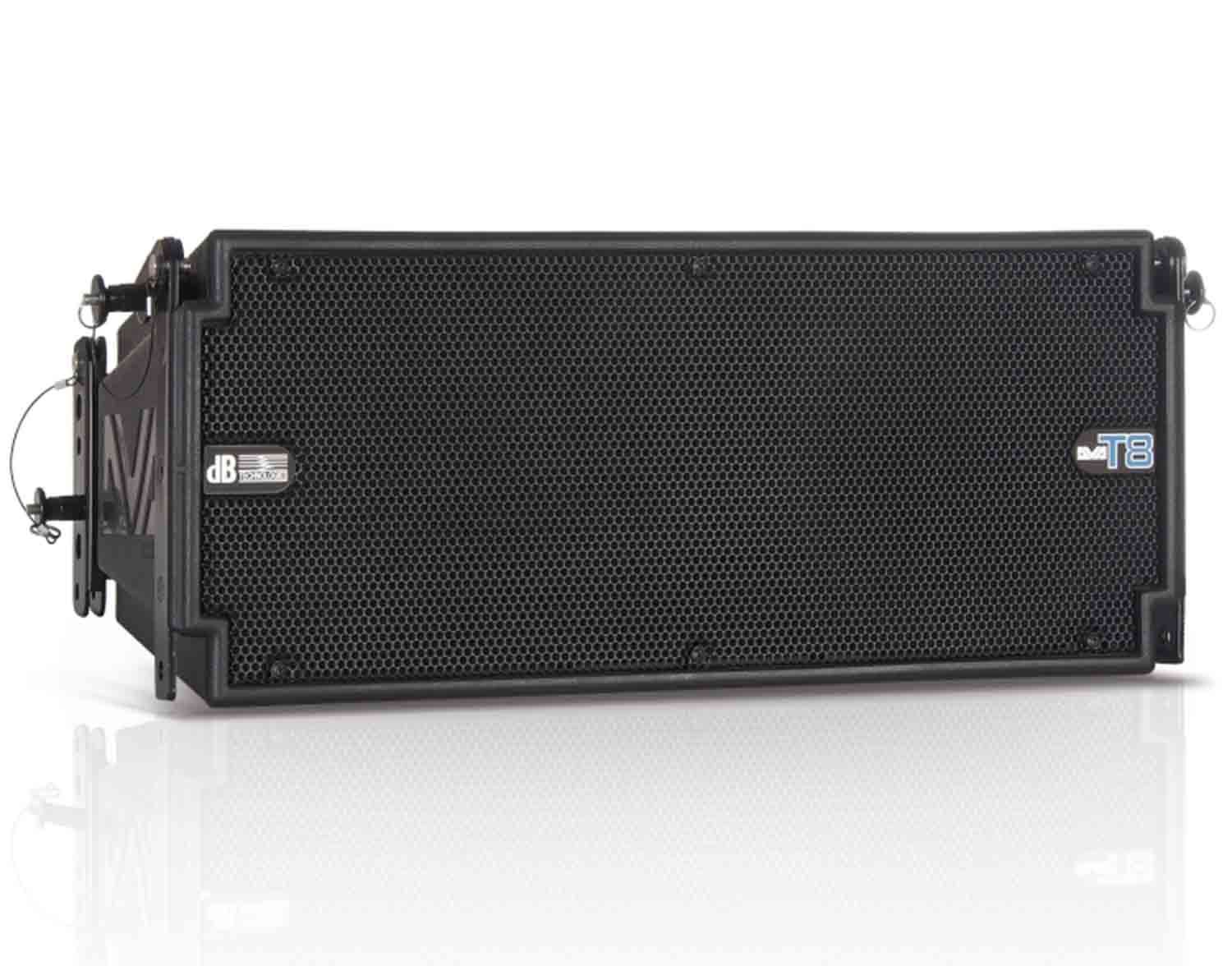

DB Technologies DVA T8 3 Way Active Line Array Module 8" Woofer

The DB Technologies DVA T8 is a 3 Way Active Line Array module equipped with an 8” bass reflex neodymium woofer, 1 horn loaded 6.5” midrange with a 2” voice coil and phase plug device, and two 1” drivers with constant directivity horn. These components have been optimally arranged to obtain a uniform 100° by 15° coverage per module. DVA T8 features a Class D 700 W RMS Dig iPro G2 digital amplifier and is capable to reach up to 132 dB SPL.

The system is equipped with a RDNET port which allows the system to be controlled and monitored remotely in real-time through the use of dB Technologies Network control software.

Thanks to a rotary on the module’s rear panel, it is possible to select one among 9 different preset options plus a personal setting which can be saved. This way, users adapt the module’s frequency response to aiming distance and to coupling with other modules within the same array, thus optimizing the sound in a consistent and balanced way, without the use of any external processors.

The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response. The reinforced polypropylene box, the selected components and a state-of-the-art amplifying technology come together to deliver an exceptional weight-performance ratio: in facts, each module of DVA T8 weights a mere 14,2 kg (31,3 lbs.).

The unique feature of the DVA T series is the mechanical and acoustic compatibility between line array modules of the same family. This feature guarantees a great versatility in terms of both using and configuring the products.

Product Specification:

Frequency Response [+/- 3dB]: 66 - 18.000 Hz: -40dBu to +20dBu

Max SPL: One Unit: 132 dB: >4:1 For input levels beyond 20dB above threshold

Voice Coil HF: 1.4 ": Wideband Gain Reduction

Directivity: 100x15 ° Single unit: OFF to +15dBu

MF: 1x 6.5 ": Adjustable 1.5:1 to 10:1

Voice Coil MF: 2 ": >50dB

LF: 8 ": 15W

Compressor Threshold Range: -40dBu to +20dBu

Compressor Ratio: >4:1 For input levels beyond 20dB above threshold

Max Compression: 30dB

De-esser Characteristic: Wideband Gain Reduction

Expander/Gate Threshold Range: OFF to +15dBu

Expander/Gate Ratio: Adjustable 1.5:1 to 10:1

Controller: DSP 56 bit with double precision filters: -40dBu to +20dBu

AD/DA Converter: 24 bit/96 kHz: >4:1 For input levels beyond 20dB above threshold

System Presets: 9, (8xHF and Low-mid correction): 30dB

Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal: Wideband Gain Reduction

Crossover Frequency MF-HF: 1900 Hz: OFF to +15dBu

Slope MF-HF: 24 dB/Octave: Adjustable 1.5:1 to 10:1

Crossover Frequency LF-MF: 400 Hz: >50dB

Slope LF-MF: 24 dB/Octave: 15W

Signal Input: 1x XLR fem, Bal.: -40dBu to +20dBu

Signal Output: 1x XLR male, Bal.: >4:1 For input levels beyond 20dB above threshold

Network: RDnet remote control RJ45 connector IN/OUT: 30dB

Power Socket: 1x Powercon In 1x Powercon Out: Wideband Gain Reduction

Voltage Range: 90 - 240 V: OFF to +15dBu

Adjustable 1.5:1 to 10:1

Housing: Polypropylen PP Metal reinforced: >50dB

Housing Design: Trapezoidal 15°: 15W

Rain Cover: Included: DO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz

Rigging Points: Integrated rigging hardware: 0°C to 45°C (32°F to 113°F)

Width: 580 mm (23.2 in): 1.75" x 5.75" x 19" (4.5cm x 14.6cm x 48.5cm)

Height: 240 mm (9.6 in): 4.5 lbs/2.04 Kgs

Depth: 327 mm (13.08 in): 6.54 lbs/2.97 Kgs

Weight: 14,2 kg (31.3 lbs)
