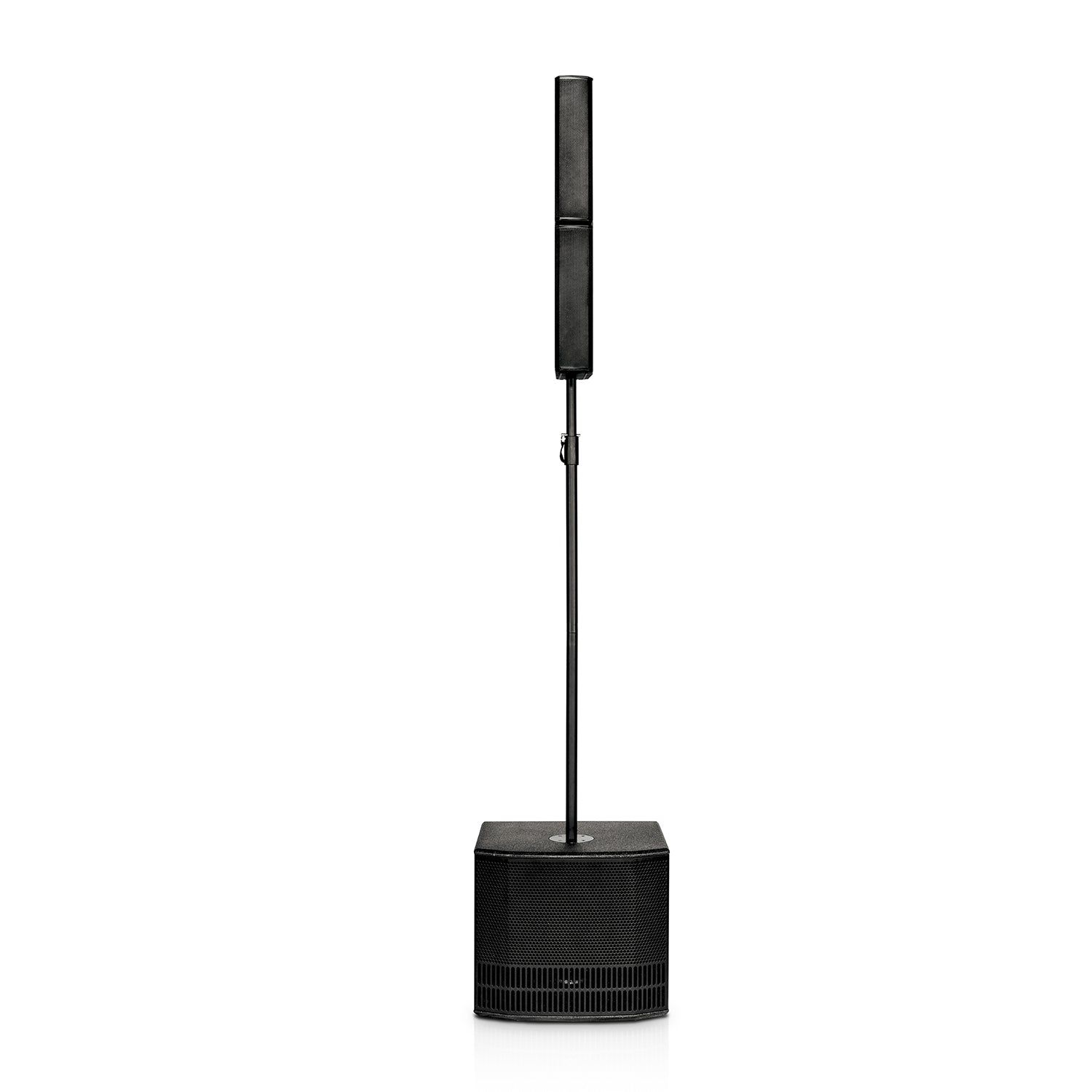

dB Technologies ES 802, Portable Column Array PA System - 1200W

The dB Technologies ES Series is the result of experience gained from dBTechnologies in the acoustic design of vertical array systems like DVA T Series and MINI. The components of the top are aligned mechanically (Logarithmic Curved Column Array) so as to increase the coverage of the vertical beam. Furthermore, there is a special “double-ringed phase plug” that increases the horizontal coverage and gives a rich and crystal clear sound to the system. The satellites are connected top-on-top and are placed on the subwoofer through the supplied D25mm pole. The system is used in mono mode so all inputs are routed to both outputs in mono. The bass-reflex subwoofer houses a generous 12” woofer and the amplifier module. The enclosure, sturdy and stylish, is made of birch plywood coated with a durable scratch-resistant black coat, which makes it truly road-ready. Two recessed handles (one per side) help easy transport. Finally, the metal grid with foam, in addition to protecting the woofer and give a very elegant and professional look, helps the reflex effect. The lower part of the grid, placed right on the reflex ports, have in fact holes with a larger diameter to enhance air flow. The highly efficient amplifier provides high power with limited weight and dimension. The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment. The speakers of the top are designed to provide both an extended vertical coverage and a wide horizontal coverage.

Product Specification:

Acoustical data

Frequency Response [-10dB] 37-15.000 Hz

Max SPL 124 dB

MF – HF 8x 3"

Type MF - HF Neodymium

LF 12"

Directivity 95x65°

Amplifier

Amp Technology Digipro® G3

Amp Class Class-D

Power Amp Peak 1200 W

Processor

Controller DSP 24 Bit/48 kHz

System Presets Factory presets

Limiter Dual Active, Peak, RMS, Thermal

Crossover Frequency LF-HF 206 Hz

Input

Mic/Instrument Channel 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input

Link Output 1x XLR balanced output

Mechanics

Housing (Subwoofer) 15mm Black Painted Plywood

Housing (Tops) Poly propylene PP

Handles 2x lateral side (Subwoofer)
