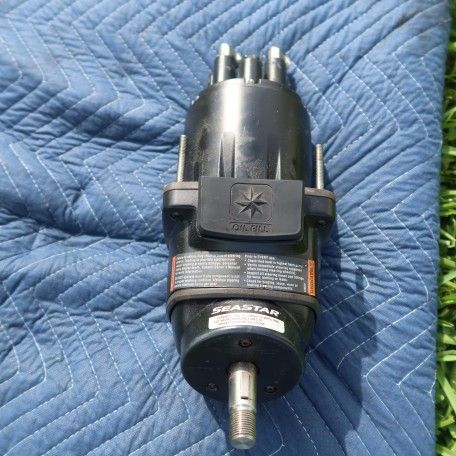

Used Seastar HH6544-3 Classic Tilt 1.4 Hydraulic Marine Helm Pump

Used SeaStar HH6544-3 Classic Tilt 1.4 Hydraulic Boat Helm Pump The HH65443 hydraulic boat steering helm is the most widely used in the world. It provides smooth and efficient steering with no feedback for both inboard and outboard applications. Applications: Most hydraulic steering applications for inboard/sterndrive/outboard boats up to 50' Single outboard engine boats that travel up to 55MPH, for boats over 55MPH see SeaStar PRO Steering Capable of being used in multiple stations Features: ● Compact helm ● Standard 3/4" tapered steering shaft ● Accepts wheels up to 20" ● Small 4.5" Hole cutout in dash Specification: ● Front Mount Installation ● 1.4 cubic inches ● 1000 PSI Relief Valve Settings ● Replaces the SeaStar Traditional Tilt Helm HH5741 CAUTIONS: Do NOT use teflon or loctite on the fittings Do NOT try to install NPT fittings into helm pump as it may cause damage to the threads The fluid cap must be in the uppermost position at ALL times NEVER use brake fluid, only SeaStar Steering fluid or Mil Spec H5606 Fluid Installation Notes: The helm pump is packaged with re-positionable o-ring hose fittings (ORB) If a 20° mounting wedge is used, cut out dash as per mounting wedge template and mount helm directly to the 20° wedge The helm may be mounted with the helm shaft horizontal, vertical, or any angle in between Install the hose fittings before installing the helm pump for ease of installation Related Items: HA5430H 1 Quart of SeaStar Fluid HA5438 Helm Bottle Filler Kit (this is not included with a helm pump) HH6541-3 SeaStar 1.7in³ Classic Tilt Helm Pump
