$1,400

$1,500

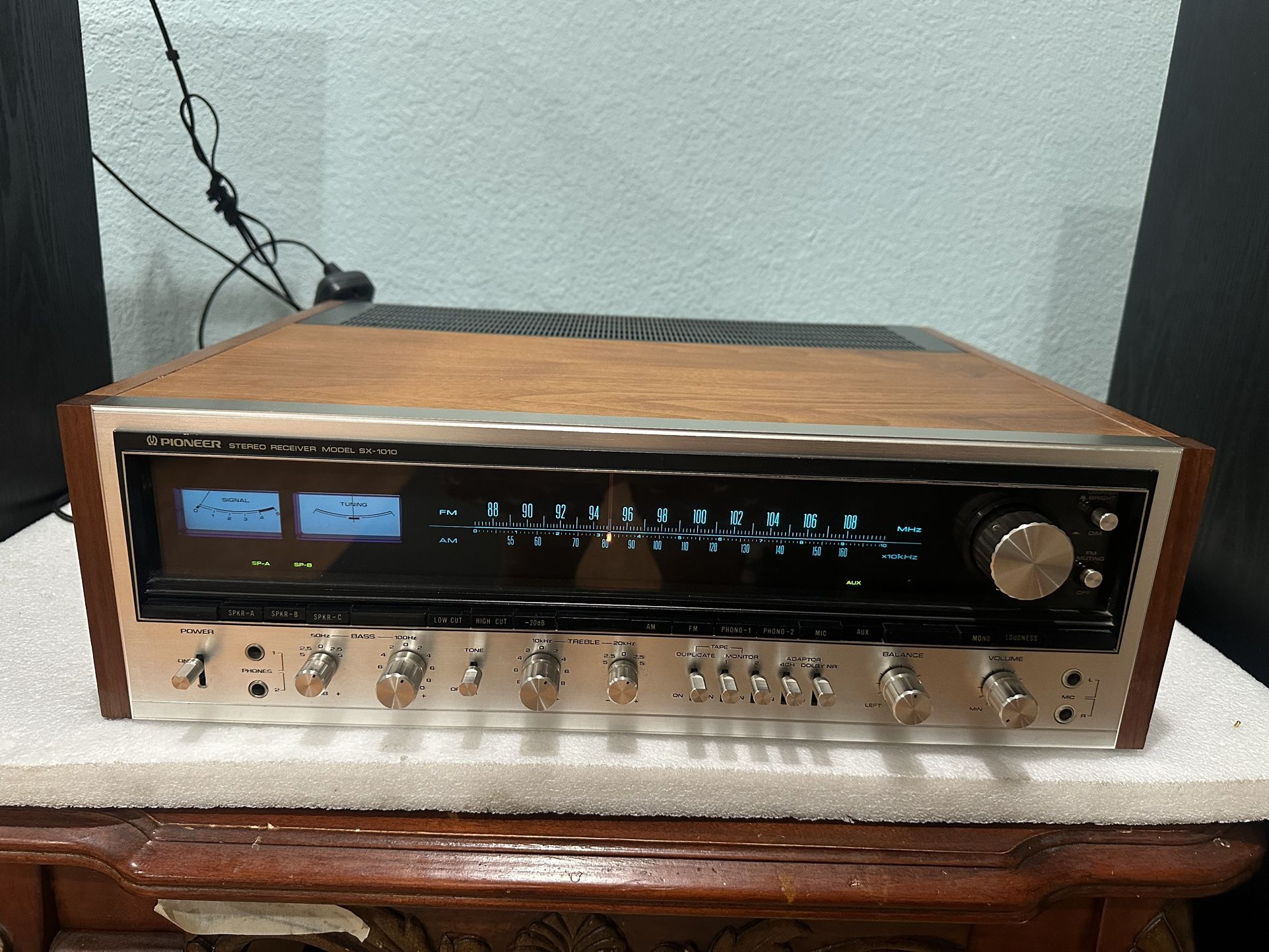

Vintage Monster Pioneer SX-1010 AM/FM Stereo Receiver With Box

Posted in San Jose, CA

Listed in categories:

Sold by

Billy

Billy

Joined Nov 2019

|

(364) offer up reviews

Chat securely on the app

Vintage Monster Pioneer SX-1010 AM/FM Stereo Receiver With Box

Additional images

Description

Vintage Monster Pioneer SX-1010 AM/FM Stereo Receiver. Working, great sound. Excellent condition. Comes with Box. Description The SX-1010 is Pioneer's top of the line FM/MW stereo receiver. Features include an FM front end with dual-gate FETs, ceramic filters and ics in IF stages for sharp selectivity, quadrature detection, phase lock loop (PLL) stereo demodulator, all IC equipped AM section with linear dial, balanced positive and negative power supply with heavy duty components, and a phono equalizer with wide dynamic range and extremely close tolerances. The twin tone controls permit precise shaping of sound and direct-coupled power amplifier supplies high output power with minimum distortion. Specifications Tuning range: FM, MW Power output: 100 watts per channel into 8Ω (stereo) Frequency response: 10Hz to 40kHz Total harmonic distortion: 0.1% Damping factor: 30 Input sensitivity: 2mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line) Signal to noise ratio: 65dB (mic), 70dB (MM), 95dB (line) Output: 150mV (line), 30mV (DIN), 1V (Pre out) Speaker load impedance: 4Ω to 16Ω Semiconductors: 3 x FET, 5 x IC, 73 x transistors, 41 x diodes Dimensions: 520 x 175 x 440mm Weight: 22.2kg Accessories: FM T-type antenna Year: 1974

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

Used (normal wear)
