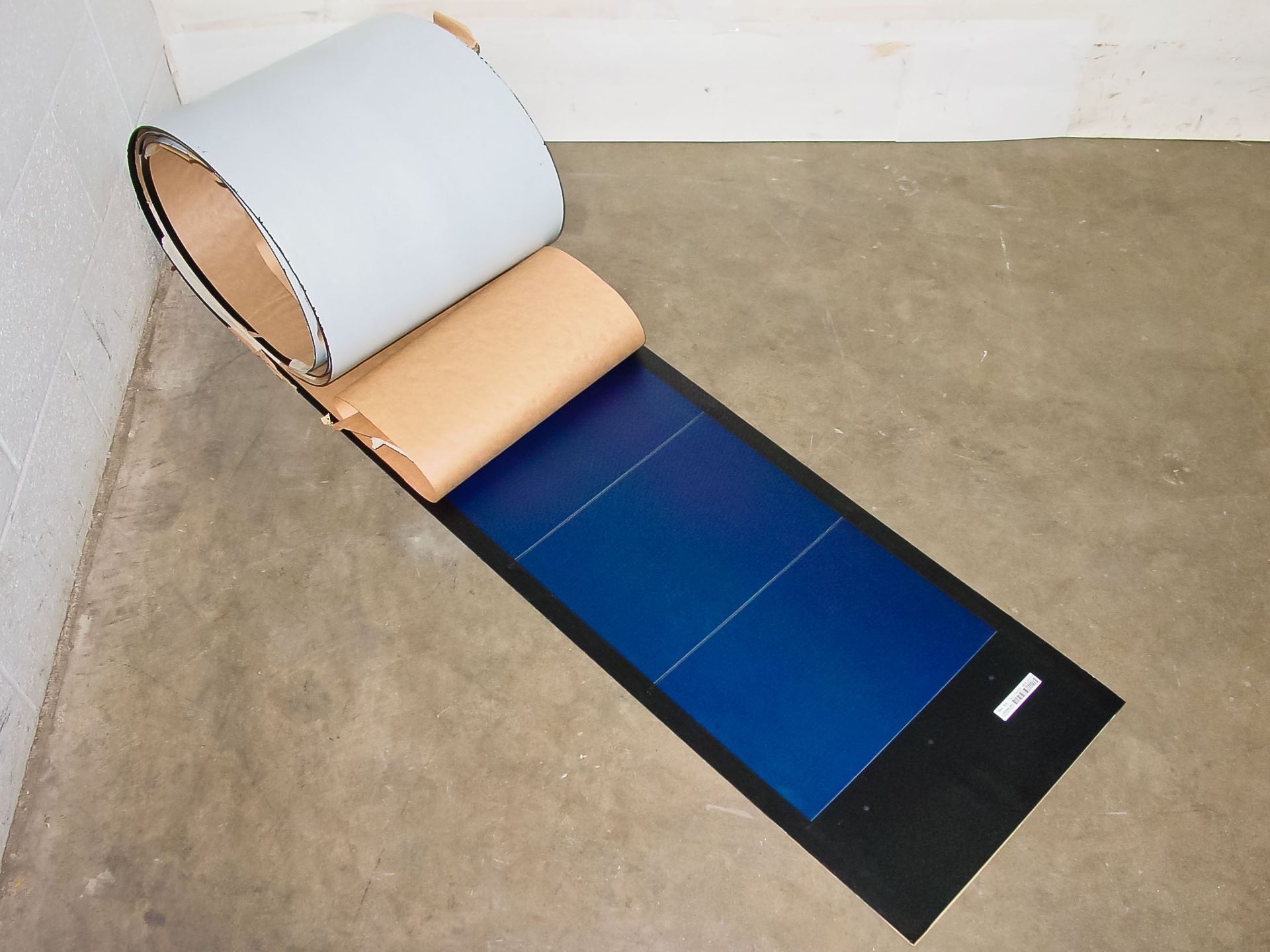

Uni-Solar PVL-136 136 Watt Flexible Solar Panel Peel n Stick - RV Boat Camping

Brand

Uni-Solar

Uni-Solar PVL-136 136 Watt Flexible Solar Panel Peel n Stick - RV Boat Camping. We include free MC4 Jbox set with every panel for DIY install if requested. Uni-Solar PVL-136 136W 24-Volt Flexible Amorphous Solar Panel with Triple Junction Solar Cells Solder Points. These are top tier finished panels. Unisolar made them this way for a specific client. These are also Grid Tie UL 1703 Listed for Systems up to 600 VDC. Which means they were made to last 20 Years. See brochure. Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. They are also Category 3 (130 MPH) Hurricane uplift resistant and installed with no hardware. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. The following are basic specs for individual solar panels Maximum Power (Pmax): 136 Watts Nominal Operating Voltage: 24 Volts Max Power Voltage (Vmpp): 33 Volts Max Power Current (Impp): 4.1 Amps Open Circuit Voltage (Voc): 46.2 Volts Short Circuit Current (Isc): 5.1 Amps Max System Voltage: 600 Volts Lightweight & Flexible Bypass Diodes at each cell connection Category 3 (130 MPH) Hurricane uplift resistant when installed in accordance with guidelines. Virtually Unbreakable (No Glass) Shadow & High Heat Tolerant Cells Per Module: 22 Frame Material: Frameless None: Solder Points on bottom of panel Bonding adhesive factory-installed on the back of the laminate Panel Weight: 16 Pounds Panel Dimensions:216" (18 Feet) x 15 3/8" Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Here is a video with many examples. Condition: New New Open Box. This panel has bottom-facing solder points for connections down through a roof. We include a DIY Junction Box with MC4 Connectors with every panel sold, but other components may be needed depending on the desired setup, such as short wires to connect the solder points to the j-box, and/or a sealant to connect the j-box securely to the panel. It is 18 feet long by 15.5 inches wide. Please view our photo set and contact us if you have any questions. See more at https://offerup.com/redirect/?o=UmVjeWNsZWRHb29kcy5jb20vc29sYXItcGFuZWxzLWNlbGxzLWFuZC1lcXVpcG1lbnQv
