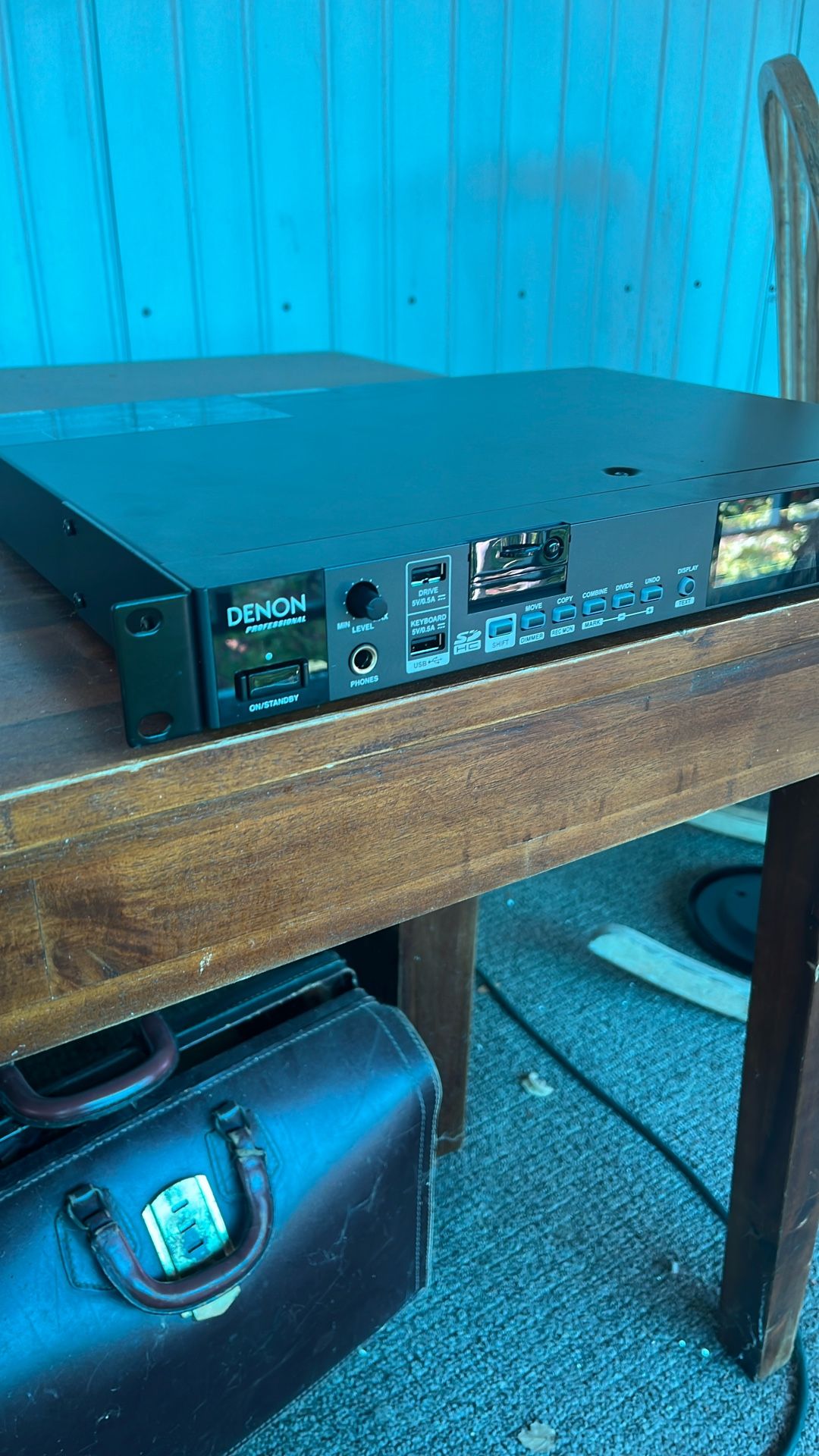

DENON DN-500R SD/USB Audio Recorder

Model

DN-500R

Brand

DENON

Excellent Condition Like New $130 Or Best Offer File Format Specifications Compatible media: SD/USB memory/USB HDD Playable formats, file systems: SD, USB: FAT16/FAT32/HFS+ Playable WAV Format Extension: WAV, AIFF, AIF Resolution: 16 bit, 24 bit Sampling frequency: 96, 48, 44.1 kHz Playable MP3 Format Extension: MP3 Bit rate: 32 – 320 kbps and VBR Sampling frequency: 48, 44.1 kHz Playable AAC Format Extension: M4A Compression method: AAC-LC Bit rate: 64 – 320 kbps and VBR Sampling frequency: 48, 44.1 kHz Audio Specifications Number of channels: 2 (stereo), 1 (mono) Audio frequency characteristics: 20 Hz – 20 kHz (+0.5 dB / –1 dB) S/N ratio: More than 89 dB (A-Weighted) Total harmonic distortion: Less than 0.01 % Dynamic range: More than 106 dB (for 24 bit WAV playback) Channel separation: Less than –90 dB Variable pitch width: –16 % – +16 % Variable trim adjustment width: ±2.0 dB INPUT - Balanced Analog IN L/R Type: XLR (1:GND, 2:Hot, 3:Cold) Input level: +4 dBu Maximum input level: +24 dBu/+20 dBu/+18 dBu Input impedance: 20 kΩ INPUT - Unbalanced Analog IN L/R Type: RCA terminal Input level: –10 dBV Maximum input level: +10 dBV/+6 dBV/4 dBV Input impedance: 10 kΩ INPUT - Unbalanced Digital IN Type: RCA terminal Input impedance: 75 Ω Standard input level: 0.5 Vp-p Format IEC-60958(COAXIAL) INPUT - Balanced Digital IN Type: XLR (1:GND, 2:Hot, 3:Cold) Input impedance: 110 Ω Standard input level: 3.5 Vp-p Format: IEC-60958(AES/EBU) OUTPUT - Balanced Analog L/R Type: XLR (1:GND, 2:Hot, 3:Cold) Load impedance: Over 600 Ω Output level: +4 dBu at 600 Ω load Maximum Output level: +24 dBu/+20 dBu/+18 dBu OUTPUT - Unbalanced Analog L/R Type: RCA terminal Load impedance: Over 10 kΩ Output level: –10 dBV Maximum output level: +10 dBV/+6 dBV/+4 dBV OUTPUT - Balanced Digital Type: XLR (1:GND, 2:Hot, 3:Cold) Output impedance: 110 Ω Standard output level: 3.0 Vp-p Format: IEC-60958(AES/EBU) OUTPUT - Unbalanced Digital Type: RCA terminal Output impedance: 75 Ω Standard output level: 0.5 Vp-p Format: IEC-60958(COAXIAL) OUTPUT - Headphone Out 20 mW/32 Ω Other Maximum storage capacity: Up to 2 TB Maximum file size: 2 GB Maximum number of files: 2000 files (for 1 folder) Maximum number of folders: 1000 folders Maximum number of folder hierarchies: 8 (under the root directory) Environmental Operating temperature: 5 – 35 °C Operating humidity: 25 – 85 %, no condensation Storage temperature: –20 – 60 °C General Power supply (U.S.A and Canada models): AC 120 V, 60 Hz Power Supply (European, U.K and Asia/Pacific models): AC 230 V, 50/60 Hz Power consumption: 30W (typical), 0.4W (standby) Dimensions (L x W x H): 19" x 13" x 1.74" (483 x 330 x 44 mm) Weight: 7 lbs 14.99 oz (3.6 kg)
