Boat trailer - Hydraulic Yard Trailer - Hostar

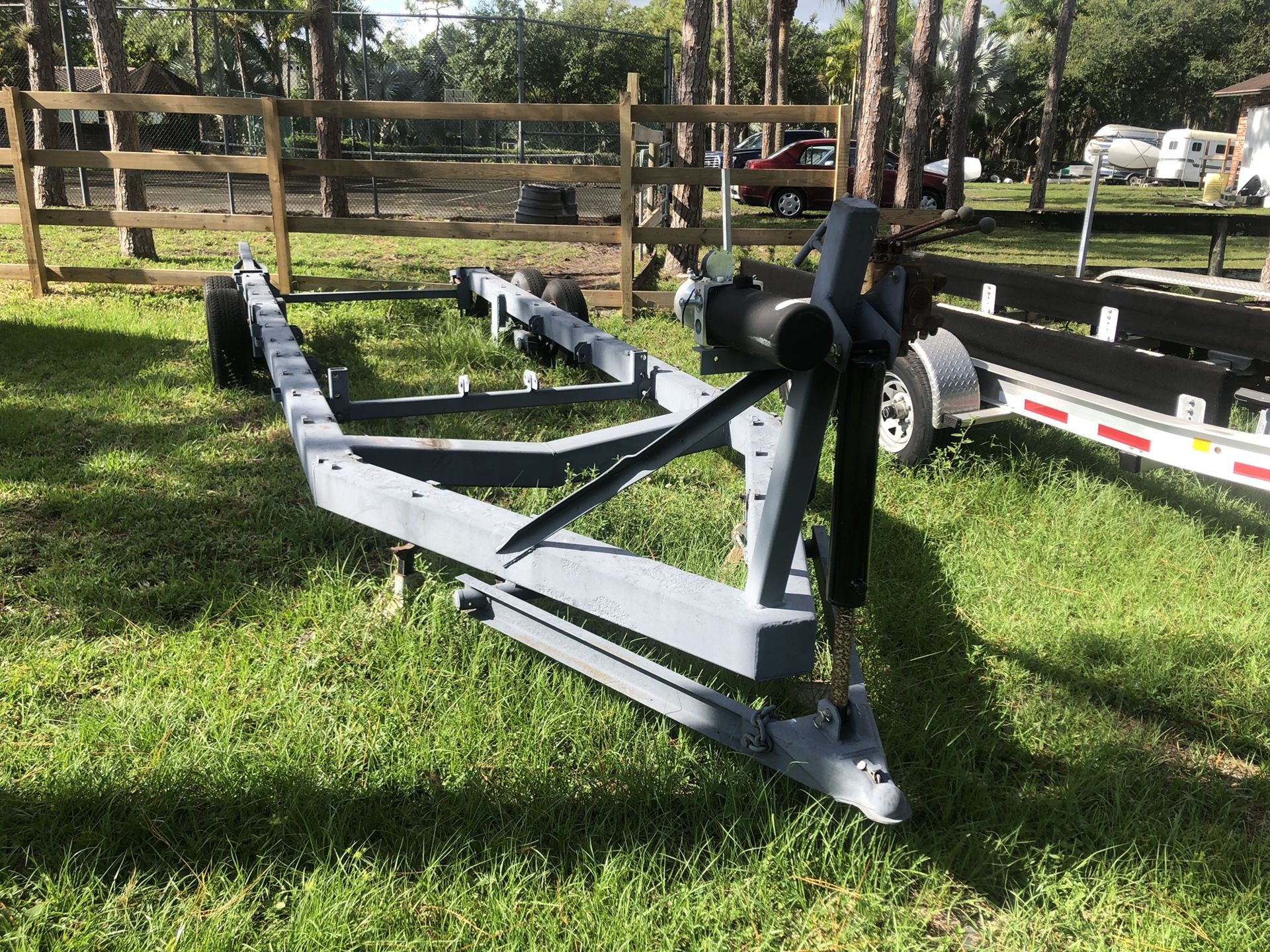

Completely sandblasted and repainted in two part epoxy about 18 months ago. The last photo shows what it looks like after cleaning I was rebuilding for a project, but changed directions This is a yard trailer and can be converted to over the road by adding suspension All new hydraulic actuators, new hydraulic motor, new tires. The actuator cylinders have rust from sitting and may need to be replaced. They were purchased from Magister. To handle power boats and shoal draft sailboats to 29 feet • Overall trailer length of 28 feet • Overall trailer width of 8 feet 3 inches • Capacity of13,000 lbs. in the yard • 6" x 6" steel square tube main frame • Hydraulics: * Two rear hydraulic arms * Front hydraulic cylinder for fore and aft leveling * Manual hydraulic control valves * 12VDC electric hydraulic power unit * Pilot operated double-locking valves on all cylinders • Rocking beam suspension • Adjustable, movable and reversible forward cross beam • Adjustable swing-out rear cross beam • Two screw pad stabilizers with sockets and T-pins, mountable to frame • Hydraulically operated draw bar w/safety chains
