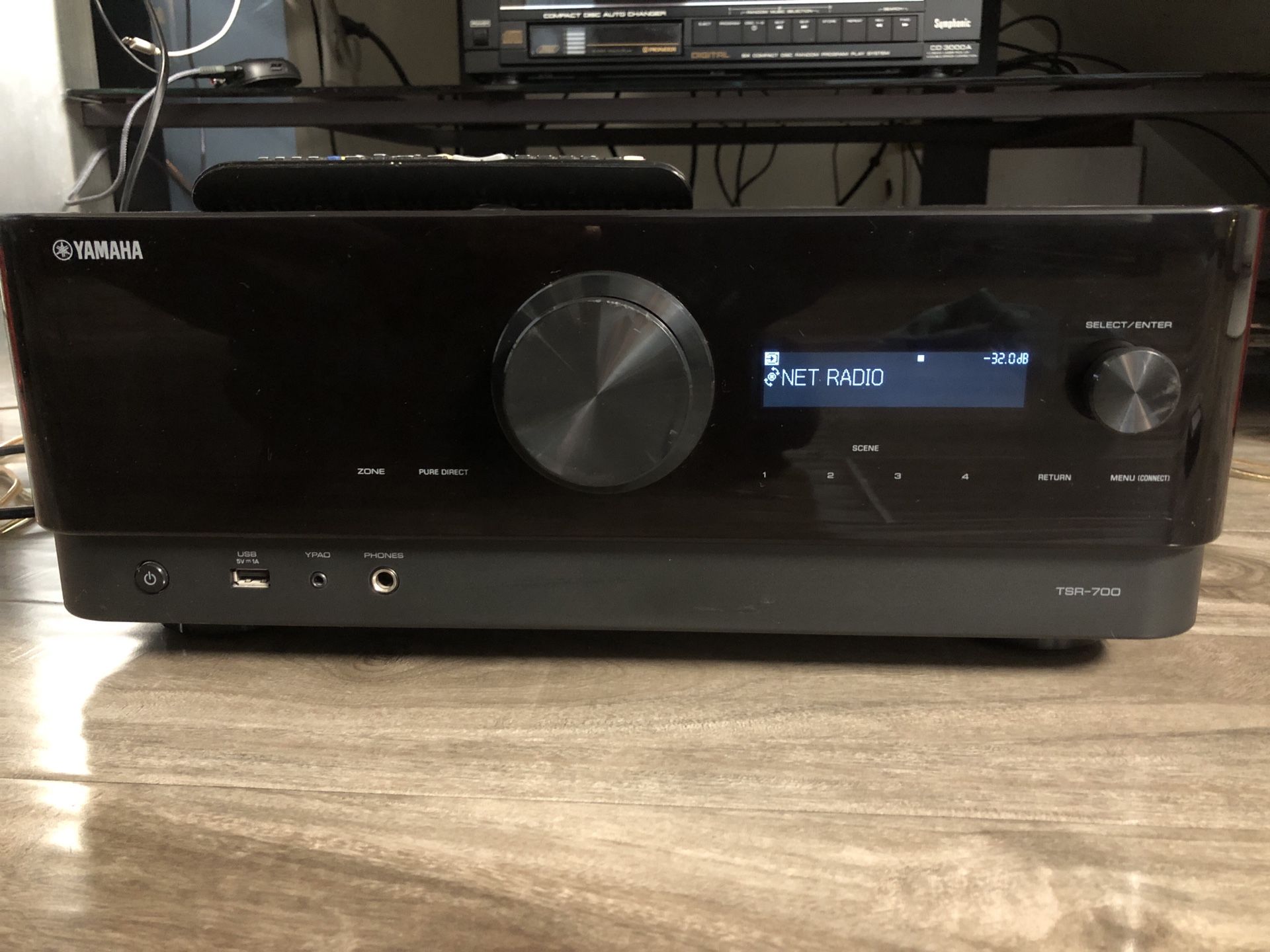

YAMAHA TSR-700 7.1 RECEIVER

In great condition, works and sounds amazing! Great movie sounds experience, great music listening Input jacks Analog Audio Audio x 4 (including PHONO) Digital Audio Optical x 1 (Supported frequencies: 32 kHz to 96 kHz) Coaxial x 1 (Supported frequencies: 32 kHz to 192 kHz) HDMI Input HDMI x 7 Other jacks USB x 1 (USB2.0) NETWORK (Wired) x 1 (100Base-TX/10Base-T) Output jacks Analog Audio Speaker Out x 9 (7 ch) (FRONT L/R, CENTER, SURROUND L/R, EXTRA SP 1 L/R*1, EXTRA SP 2 L/R*2) Assignment is possible [F.PRESENCE, ZONE2] Assignment is possible [SURROUND BACK, ZONE2, BI-AMP (FRONT L/R)] Pre Out x 4 (FRONT L/R, Subwoofer [monaural] x 2) ZONE2 OUT x 2 (L/R) Headphone x 1 HDMI Output HDMI OUT x 1 Other jacks YPAO x 1 TRIGGER OUT x 1 HDMI HDMI Features: 8K, 4K Ultra HD (include 8K/60, 50 Hz, 4K/120, 100 Hz 10-bit ), 3D Video, ARC (Audio Return Channel), eARC (enhanced Audio Return Channel), HDMI Control (CEC), Auto Lip Sync, Deep Color, “x.v.Color”, HD audio playback, 21:9 Aspect Ratio, BT.2020 Colorimetry, HDR Compatible, HDR10+, Dolby Vision, Hybrid Log-Gamma, DSC FRL, FRL Video Format (Repeater Mode) VGA 480i/60 Hz 576i/50 Hz 480p/60 Hz 576p/50 Hz 720p/60 Hz, 50 Hz 1080i/60 Hz, 50 Hz 1080p/120 Hz, 100 Hz, 60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz 4K/120 Hz, 100 Hz, 60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz 8K/60 Hz (8K60B)*, 50 Hz (8K50B)*, 30 Hz, 25 Hz, 24 Hz *DSC (Display Stream Compression) only The input 8K signal is supported by the HDMI 1-3 jacks. Audio Format Dolby Atmos Dolby TrueHD Dolby Digital Plus Dolby Digital DTS:X DTS-HD Master Audio DTS-HD High Resolution DTS Express DTS DSD 2-ch to 6-ch (2.8 MHz) PCM 2-ch to 8-ch (Max. 192 kHz/24-bit) Content Protection: HDCP 1.4/2.3 compatible Link Function: CEC supported TUNER Analog Tuner [U.K., Europe and Russia models] DAB/FM with Radio Data System x 1 (TUNER) [Australia model] DAB/FM x 1 (TUNER) [Other models] FM/AM x 1 (TUNER) USB Capable of Mass Storage Class USB Memory Current Supply Capacity: 1.0 A Bluetooth Sink Function Source Device to AVR (ex. Smartphone/Tablet) Supported profile A2DP, AVRCP Supported codec SBC, AAC Source Function AVR to Sink Device (ex. Bluetooth Headphone) Supported profile A2DP, AVRCP Supported codec SBC Capable of Play/Stop Operation from Sink Device Bluetooth version Ver. 4.2 Wireless output Bluetooth Class 2 Maximum communication distance 10 m (33 ft) without interference Network PC Client Function AirPlay 2 supported Internet Radio music streaming service Wi-Fi function Capable of WPS by PIN Method and Push-Button-Method Available Security Method: WEP, WPA2-PSK (AES), Mixed Mode Wireless LAN Standards: IEEE 802.11 a/b/g/n/ac* *20 MHz channel bandwidth only Radio Frequency: 2.4/5 GHz Compatible Decoding Formats Decoding Format Dolby Atmos Dolby TrueHD, Dolby Digital Plus Dolby Digital DTS:X DTS-HD Master Audio, DTS-HD High Resolution, DTS Express DTS, DTS 96/24, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1 Post Decoding Format Dolby Surround DTS Neo: 6 Music, DTS Neo: 6 Cinema Neural:X Audio Section Rated Power Output (2-channel driven) (20 Hz to 20 kHz, 0.06% THD, 8 Ω) Front L/R, Surround L/R, Surround Back L/R 100 W/ch Center 100 W (1 kHz, 0.9% THD, 8 Ω) Front L/R, Surround L/R, Surround Back L/R 105 W/ch Center 105 W Power Output (1-channel driven) (1 kHz, 0.9% THD, 8 Ω) Front L/R, Center, Surround L/R, Surround Back L/R 125 W (1 kHz, 0.9% THD, 4 Ω) Front L/R 150 W Maximum Effective Power Output (1-channel driven) (1 kHz, 10% THD, 8 Ω) Front L/R, Center, Surround L/R, Surround Back L/R 150 W (1 kHz, 10% THD, 6 Ω) Front L/R, Center, Surround L/R, Surround Back L/R 160 W Damping Factor Front L/R (1 kHz, 8 Ω) 100 or more Input Sensitivity / Input Impedance PHONO (1 kHz, Rated Power Output) 3.5 mV/47 kΩ AUDIO 3 etc. (1 kHz, Rated Power Output) 200 mV/47 kΩ Maximum Input Signal PHONO (1 kHz, 0.5% THD) 45 mV AUDIO 3 etc. (1 kHz, 0.5% THD) 2.4 V Rated Output Level / Output Impedance PRE OUT Front L/R (1 kHz) 1.0 V/470 Ω SUBWOOFER (50 Hz) 1.0 V/470 Ω ZONE2 OUT 1.0 V/470 Ω Maximum Output Level PRE OUT Front L/R 2.0 V SUBWOOFER 6.5 V Headphone Impedance 16 Ω or more Frequency Response AUDIO 3 etc. to Front (Pure Direct) (10 Hz to 100 kHz) +0/-3 dB RIAA Equalization Deviation PHONO (20 Hz to 20 kHz) 0±0.5 dB Total Harmonic Distortion PHONO to PRE OUT (Pure Direct) (1 kHz, 1 V) 0.02% or less AUDIO 3 etc. to Front (Pure Direct) (20 Hz to 20 kHz, 50 W, 8 Ω) 0.04% or less Signal to Noise Ratio (IHF-A Network) PHONO (Pure Direct) (Input 1 kΩ Shorted, Speaker Out) 95 dB or more AUDIO 3 etc. (Pure Direct) (Input 1 kΩ Shorted, Speaker Out) 110 dB or more Residual Noise (IHF-A Network) Front L/R (Speaker Out) 150 μV or less Channel Separation PHONO (Input 1 kΩ Shorted, 1 kHz/10 kHz) 60 dB/55 dB or more AUDIO 3 etc. (Input 1 kΩ Shorted, 1 kHz/10 kHz) 70 dB/50 dB or more Volume Control Main Zone MUTE, -80 dB to +16.5 dB (0.5 dB Step) Zone2 MUTE, -80 dB to +10.0 dB (0.5 dB Step) Tone Control Characteristics Main Zone Bass Boost/Cut ±6 dB/0.5 dB Step at 50 Hz

Condition

Used (normal wear)

Model

YSR-700

Brand

YAMAHA

Playable Media

7.1 RECEIVER
