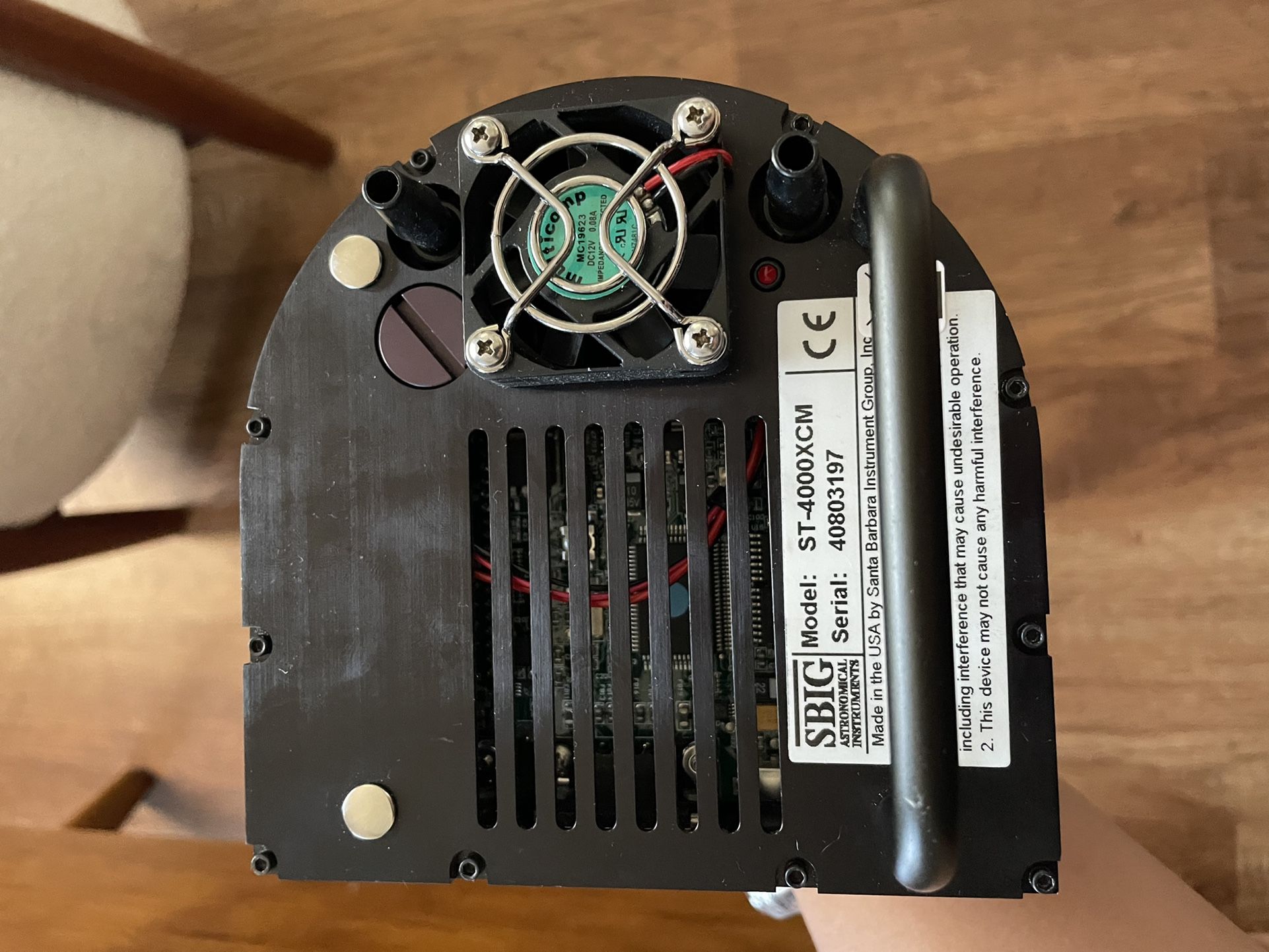

SBIG ST-4000XCM 4.2 MEGAPIXEL SINGLE-SHOT COLOR SELF-GUIDING CCD CAMERA NOT TESTED

Model

ST-4000XCM

Type

Self-guiding camera

Brand

SBIG

SOLD AS IS. WORKED BEFORE IN 2008-2012 BUT I CAN’T FIND THE POWER CORD/WIRES TO TEST. please message if you have any questions! SBIG ST-4000XCM 4.2 MEGAPIXEL, SINGLE-SHOT COLOR, SELF-GUIDING, CCD CAMERA ST-4000XCMThe ST-4000XCM is a new addition to the ST line of self-guiding cameras. It uses a large 4.2 megapixel KAI-4022CM color CCD previously available only in an STL camera body. This CCD has 2048 x 2048 pixels at 7.4 microns square. This is the same size CCD used in the STL-4020 camera. The KAI-4022CM comes in a single class without column defects. The KODAK DIGITAL SCIENCE KAI-4022CM is a high-performance multi-megapixel image sensor designed for a wide range of scientific, medical imaging, and machine vision applications. The 7.4 mm square pixels with microlenses provide high sensitivity. The vertical overflow drain structure provides antiblooming protection, and enables electronic shuttering for precise exposure control to 0.001 seconds. Other features include low read noise, low dark current, negligible lag and low smear. This CCD uses a high gain output amplifier that reduces the read noise by almost half compared to previous versions. Our preliminary tests of this CCD installed in prototype ST camera body exhibits a read noise of less than 8e- rms and a dark current of less than 0.1e- at 0 degrees C. The KAI-4022CM CCD is a progressive scan detector with an active image area of 15.2 x 15.2 mm. Features: The largest CCD available in an ST series camera - 100% larger than the ST-2000XCM Single-Shot Color CCD with 300X antiblooming protection 4.2 million pixels: 2,048 x 2,048 at 7.4 microns High resolution on smaller telescopes with 7.4 micron square pixels Built-in TC-237H autoguider for self-guiding External self-guiding with the optional Remote Guide Head containing a TC-237H CCD Mechanical shutter for automatic dark frames Electronic shutter for exposure times to 0.001 second Good sensitivity Low read noise Low dark current Thermoelectric cooling with air only or with water circulation Fast downloads - 10 seconds for a high resolution full frame image, 2 seconds for quarter frame Professional software Easy to use Full compliment of optional custom accessories Low price SBIG quality and support
