$140

Pressure Transmitter 0 psi to 100 psi, 0.5 to 4.5V DC, 3-Pin Packard Connector, 1/8 in Male NPT

Posted in Chandler, AZ

Listed in categories:

Sold by

Katie

Katie

Joined Dec 2021

|

(180) offer up reviews

Chat securely on the app

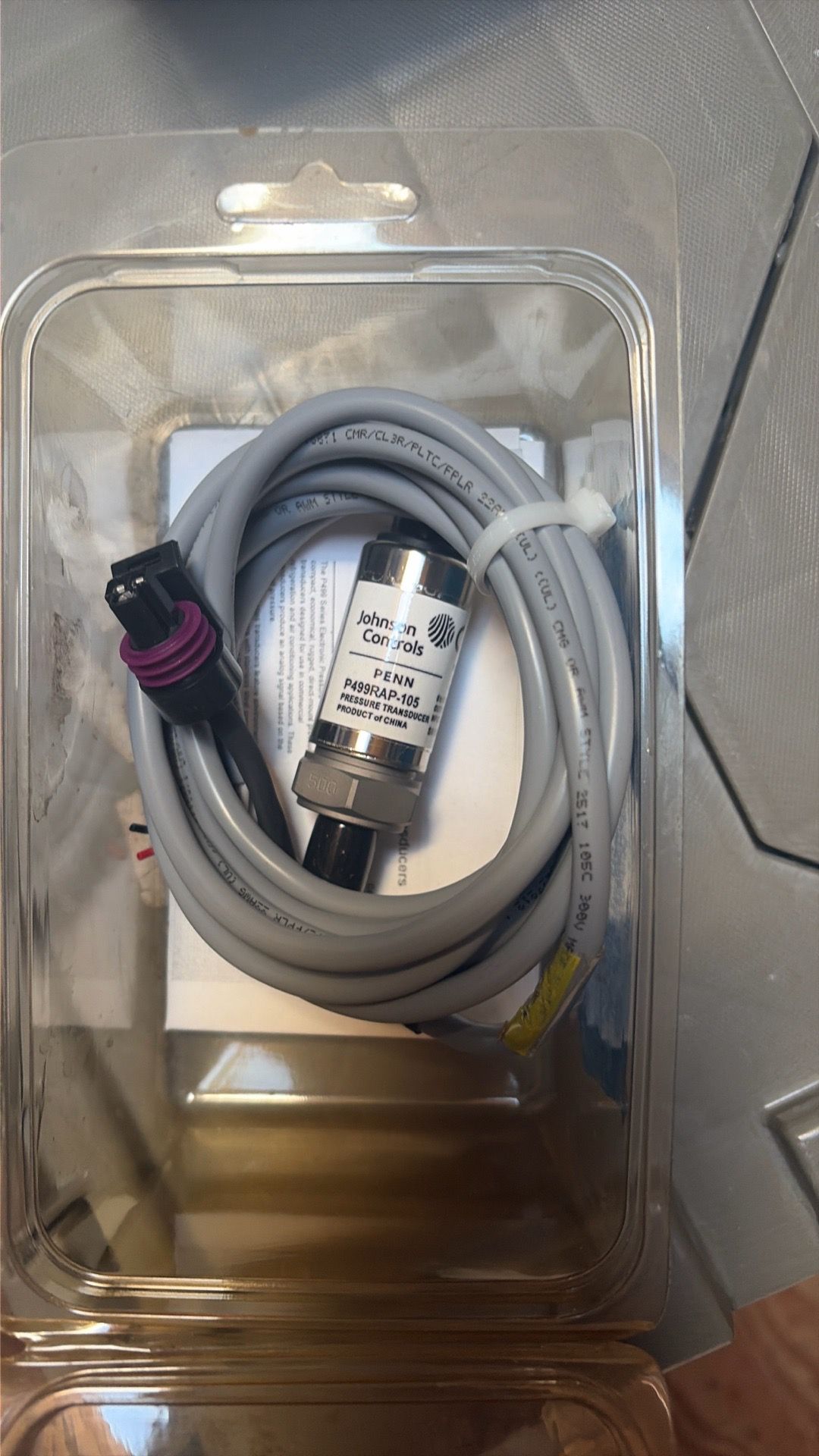

Image #1

Additional images

Description

P499 Pressure Transmitter: 0 psi to 100 psi, 0.5 to 4.5V DC, 3-Pin Packard Connector, 1/8 in Male NPT NPT external port These pressure transmitters thread into a process connection and feature a 3-pin Packard connector, integral to the transducer itself or an included cable. Input- 4.75 to 5.25 VDC Output - 0.5 to 4.5 VDC With 2M wiring harness P499 serious electronic pressure transducer Brand JOHNSON CONTROLS Pressure Range 0 psi to 100 psi Process Connection 1/8 in Male NPT Output- 0.5 to 4.5V DC Electrical Connections 3-Pin Packard Connector Number of Wires- 3 Power Required - 5V DC SeriesP499IP/NEMA RatingIP67IP RatingIP67 Housing Material - Stainless SteelManufacturer Part NumberP499RAP-101CProcess Connection Gender Male Process Connection Size1/8 inProcess Connection Type NPTCalibration Certificate No NIST-Traceable Calibration Certificate Included Maximum Operating Temperature - 185 °FMinimum Operating Temperature-40 °FCable Length6.5 ftBurst Pressure5xRange Features 1% Total Error Band; Environmentally Protected Electronics; Long Operating Life; Single-Piece Machined Length3.19 in Overall Width 0.875 inOverpressure2x Range Standards UL Listed Pressure Measurement - Maximum 100 psiPressure Measurement - Minimum0 psiAccuracy±1% of Full Scale 22ASG cable included : Wiring Harness: WHA-PKD3-200C, 3-Pin Packard Transmitter Wiring Harness Brand - JOHNSON CONTROLS Accessory Type 3-Pin Packard Transmitter Wiring Harness Compatible with SeriesJohnson Controls P499; Johnson Controls P598 Cable Length 6.5 ft Compatible with Product Type Pressure Transducers UNSPSC(contact info removed)4 Dewalt, Ryobi, Milwaukee, Makita, Husky, Hercules, Ridgid, Hyper Tough, Kobalt, Crain, Craftsman, Metabo HPT, Powers Trak-it, Bosch, Bauer, Dremel, Flex, Eco, Skil, Hilti, Greenworks Pro, Spyder, Bostitch, Channellock, Estwing, Fein, Leatherman, Mac Tools, Hitli tools also avaialble on my page! Look for more ideas on items you would love to purchase and/or gifts for your loved ones!

All content is available to screen readers from the outset. The See more button is for visual users only to expose content incrementally that is already available to you

Details

Condition

Open Box (never used)

Type

Pressure transmitter

Brand

Johnson control
