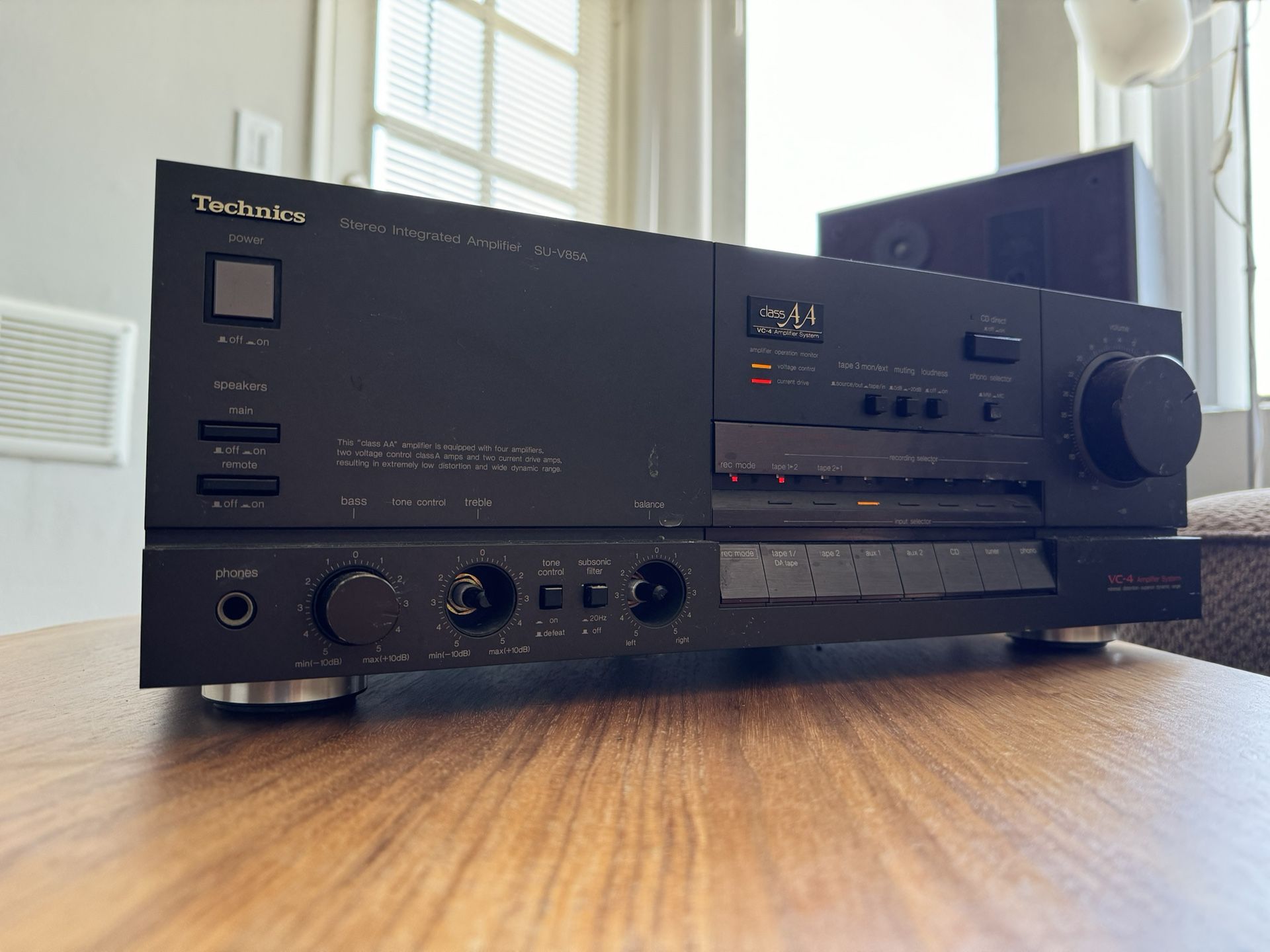

Technics Stereo Integrated Amplifier SU-V85A

Here is a big power Integrated amplifier made by Technics model SU-V85a. This amp is rated at 100 watts RMS per channel and 0.002% THD. This is one of the best amps that Technics made in the late 80's. The amp features a discreet transistor output stage with a Class AA circuit rated to 10 watts RMS. Class A/B operation takes the amp to it's full power rating of 100 watts RMS per channel. Note: This amp has high end build quality and is not part of any of the stereo rack series that Technics produced in the late 80's early 90's. Power output: 100 watts per channel into 8Ω (stereo) Frequency response: 20Hz to 20kHz Total harmonic distortion: 0.002% Damping factor: 60 Input sensitivity: 0.17mV (MC), 2.5mV (MM), 150mV (line) Signal to noise ratio: 70dB (MC), 79dB (MM), 94dB (line) Channel separation: 55dB (line) Output: 150mV (line) Speaker load impedance: 4Ω to 16Ω Dimensions: 430 x 158 x 393mm Weight: 11.7kg The amplifier has a unique Class AA design that uses two amplifier circuits with next to zero audible distortion. This means clean undistorted sound at any volume level. The amplifier has a discrete output circuit using four large filter capacitors. This is a well made amp and has fantastic sound quality. Thanks for looking!

Condition

Used (normal wear)

Model

SU-V85A

Brand

Techniks
