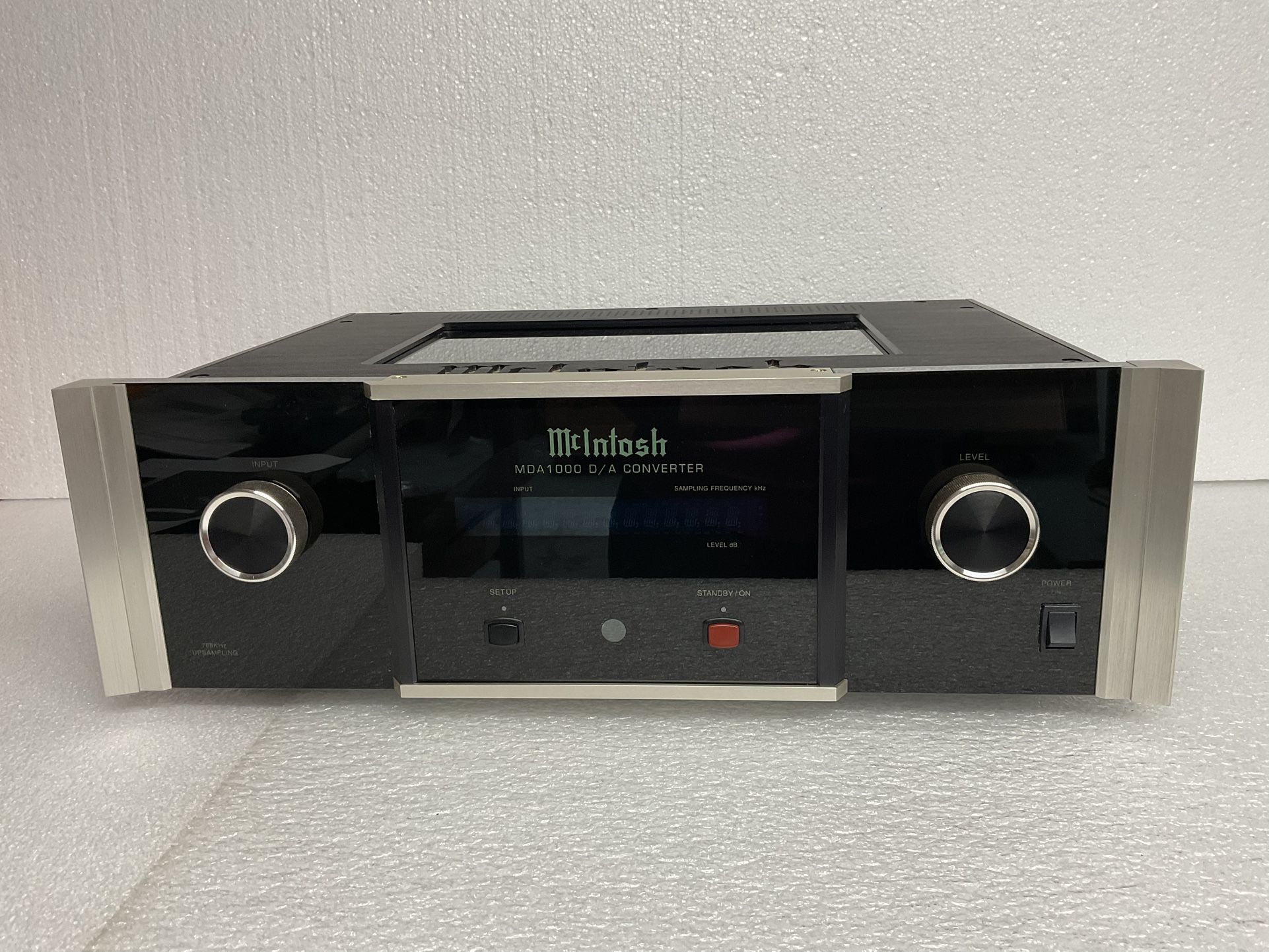

McIntosh MDA1000 24-bit D/A converter

The McIntosh MDA1000 is a 24-bit D/A converter with balanced and unbalanced outputs, seven digital inputs, and a sampling frequency that can be automatically selected from 32 to 96kHz. Key specifications include a frequency response of 4Hz–45kHz at 96kHz, a total harmonic distortion of 0.002% at 1kHz, and a signal-to-noise ratio of >110dB (A-weighted). It features both fixed and variable output modes, allowing it to be connected directly to a power amplifier or a separate preamp. Digital audio Converter: 24-bit Balanced Parallel Digital to Analog Converter circuitry, operating at 768kHz Sampling frequencies: 32kHz, 44.1kHz, 48kHz, and 96kHz Digital inputs: 3 optical, 3 coaxial (RCA), and 1 AES/EBU (XLR) Performance Frequency response: 4Hz–45kHz, ±0.5dB (at 96kHz) 4Hz–22kHz, ±0.3dB (at 48kHz) 4Hz–20kHz, ±0.3dB (at 44.1kHz) Total Harmonic Distortion: 0.002% at 1kHz Signal-to-Noise Ratio: >110dB, A-weighted Dynamic Range: >100dB (1kHz) Outputs Balanced and unbalanced analog outputs Rated output voltage: Bypass On (fixed): 2V Bypass Off (variable): 6V Volume control: Digitally controlled attenuator with 0.1dB steps Physical and power Dimensions: 6" (15.2cm) H x 17-1/2" (44.5cm) W x 16-1/8" (41cm) D Weight: 24 lbs. (11kg) net Power requirements: 20W at 120V, 50/60Hz

Condition

Used (normal wear)
