professional graphics card ATI FirePro V8800

Type

Graphic/Video card

Brand

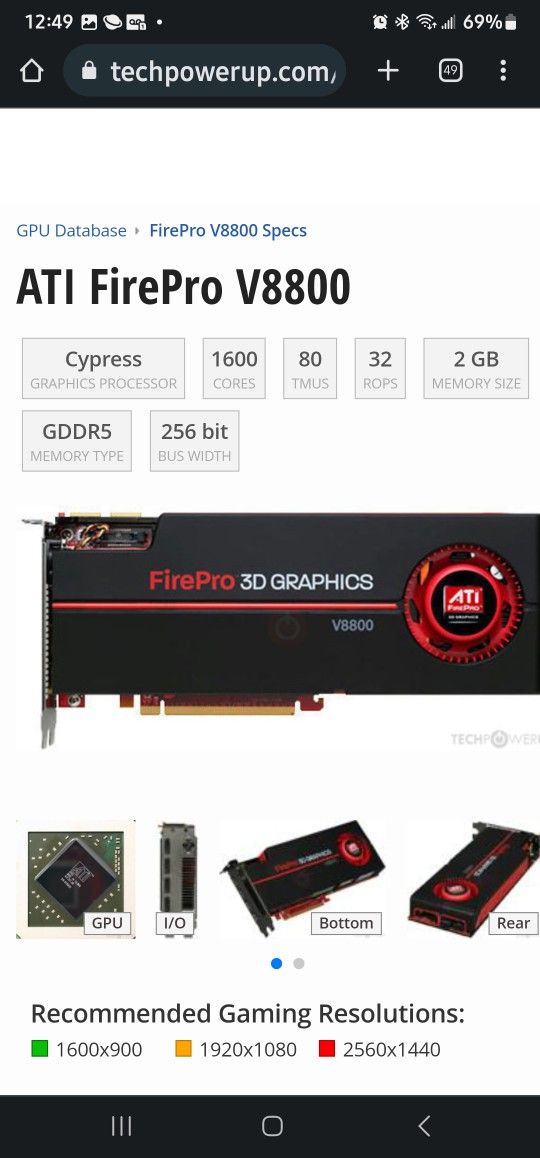

GPU ChipGPU I/OI/O BottomBottom RearRear Recommended Gaming Resolutions: 1600x900 1920x1080 2560x1440 The FirePro V8800 was an enthusiast-class professional graphics card by ATI, launched on April 7th, 2010. Built on the 40 nm process, and based on the Cypress graphics processor, in its Cypress XT GL variant, the card supports DirectX 11.2. The Cypress graphics processor is a large chip with a die area of 334 mm² and 2,154 million transistors. It features 1600 shading units, 80 texture mapping units, and 32 ROPs. ATI has paired 2,048 MB GDDR5 memory with the FirePro V8800, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 825 MHz, memory is running at 1150 MHz (4.6 Gbps effective). Being a dual-slot card, the ATI FirePro V8800 draws power from 2x 6-pin power connectors, with power draw rated at 208 W maximum. Display outputs include: 4x DisplayPort 1.1, 1x S-Video. FirePro V8800 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 267 mm in length, 111 mm in width, and features a dual-slot cooling solution. Its price at launch was 1499 US Dollars.

 GPU  I/O  Bottom  Rear Recommended Gaming Resolutions: 1600x900   1920x1080   2560x1440 The FirePro V8800 was an enthusiast-class professional graphics card by ATI, launched on April 7th, 2010. Built on the 40 nm process, and based on the Cypress graphics processor, in its Cypress XT GL variant, the card supports DirectX 11.2. The Cypress graphics processor is a large chip with a die area of 334 mm² and 2,154 million transistors. It features 1600 shading units, 80 texture mapping units, and 32 ROPs. ATI has paired 2,048 MB GDDR5 memory with the FirePro V8800, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 825 MHz, memory is running at 1150 MHz (4.6 Gbps effective). Being a dual-slot card, the ATI FirePro V8800 draws power from 2x 6-pin power connectors, with power draw rated at 208 W maximum. Display outputs include: 4x DisplayPort 1.1, 1x S-Video. FirePro V8800 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 267 mm in length, 111 mm in width, and features a dual-slot cooling solution. Its price at launch was 1499 US Dollars.
