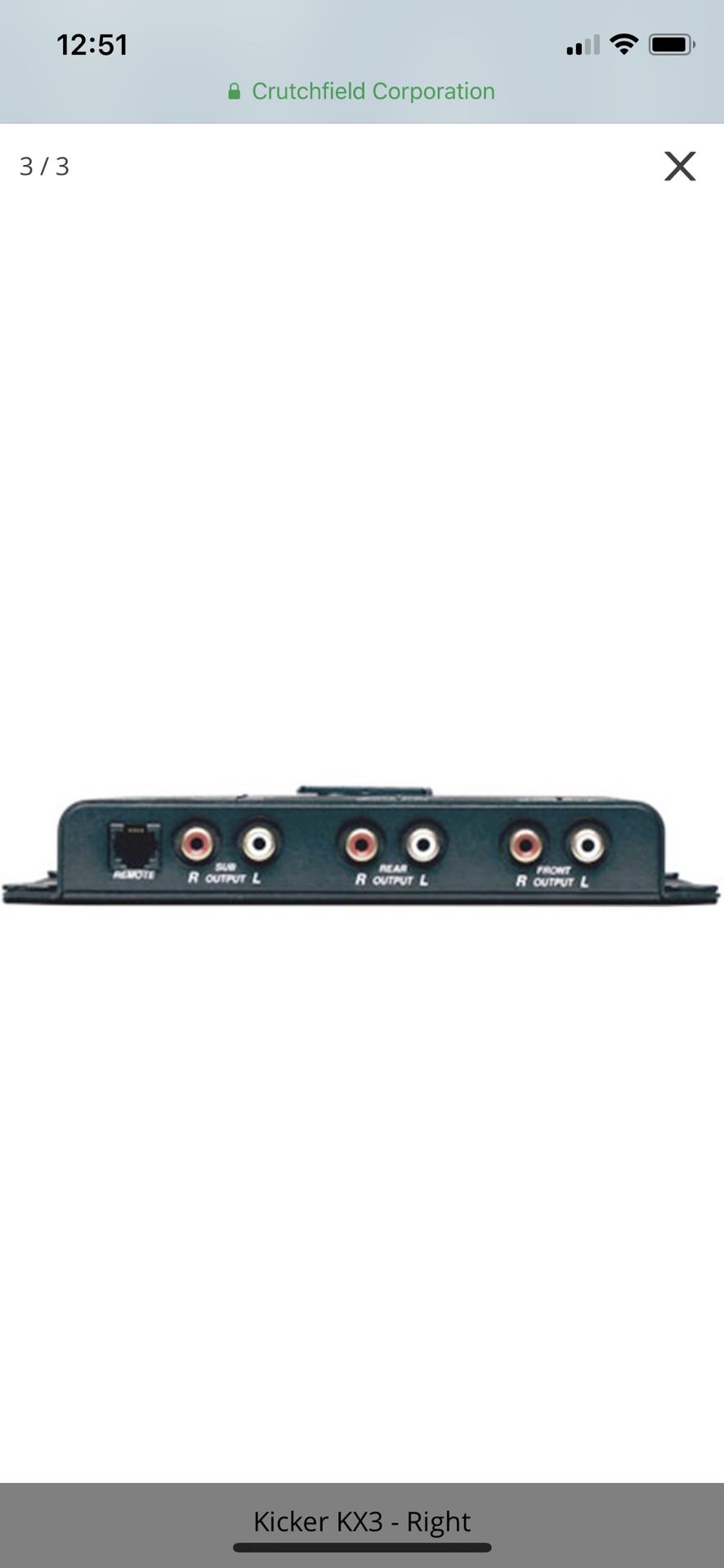

Kicker kx3 crossover

Kicker's KX3 electronic crossover is designed to serve as the "frequency traffic cop" in both types of 3-way systems: a system in which the front speakers, rear speakers, and subwoofer are amplified separately; a tweeter/midrange/subwoofer component system, in which highs, midrange, and lows are amplified separately. You can adjust the front/rear crossovers (high- and low-pass) from 35 to 400 Hz (18 dB per octave); in addition, the front channels feature a 20X multiplier that switches the crossover to tweeter range (700 to 8000 Hz). The subwoofer outputs offer a low-pass crossover (variable 45-250 Hz at 18 dB per octave). You can adjust the bass boost (up to 18 dB at 40 Hz) with the supplied wired remote control. A switchable subsonic filter (25 Hz at 24 dB per octave) trims out the extreme low frequencies which your amp and subwoofer waste energy trying to reproduce. Three pairs of 5-volt outputs are available for connection to your amplifiers. Important Note: This unit has no built-in amplifier — must be used in conjunction with one or more external amplifiers. Details: two sets of inputs 3 pairs of outputs (lows/mids/highs or front/rear/sub) level controls front outputs: variable 40-300 Hz (18 dB per octave) or 700-8000 Hz (with 20X multiplier) rear outputs: variable 40-300 Hz (18 dB per octave) subwoofer output: variable 45-250 Hz (18 dB per octave) bass boost (up to 18 dB at 40 Hz) with wired remote control subsonic filter (25 Hz at 24 dB per octave) signal-to-noise ratio 110 dB 7-5/16"W x 1-3/16"
