H22 mount kit

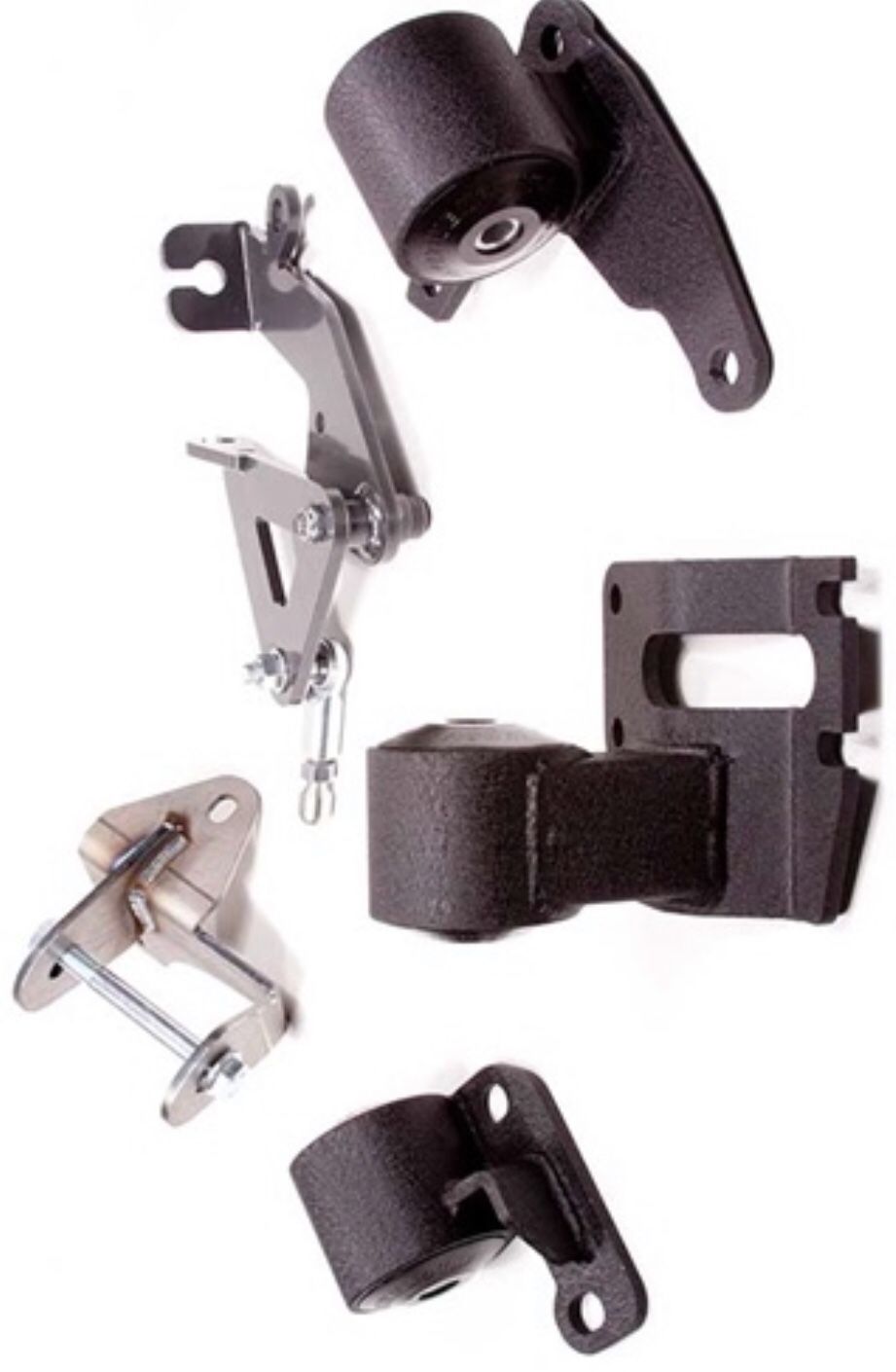

Brand new h22 mount kit from 1320 everything you see in the picture. Use stock mounts plus the weld on mount. With 95a extreme bushings . Innovative Mounts Part # 29354 With this Innovative Mount kit, you can now put an H22 into your 90+ Honda with very little modification. Designed to fit all H/F Series motors. Positions the motor with no axle bind. Advanced Actuator pivots smoothly using state of the art spherical bearings. The actuator is mounted in the same fashion as the factory models and works in the same plane as the clutch release fork. There is no binding in the clutch release fork and therefore no premature clutch wear caused by the actuator. This kit includes three mounts (Driver's side Engine Mount, Passenger Side Transmission Mount, Rear Mount) a Passenger's Side Transmission Mount Frame Bracket, and Innovative's 41003 Cable to Hydro Actuator. Factory mounts are usually made of thin gauge metal stamped and partially inserted with a rubber material. The rubber usually has two or more sections that meet in the center to hold the center pin. These sections do not hold the motor firmly and are prone to break under sever driving conditions and/or when used in performance applications. Innovative Mounts has engineered a unique polyurethane bushing unlike no other. Their bushings are solid, will never wear or break, and come with a life time unconditional warranty. A key design decision in Innovative bushings is that it makes minimal physical contact with the mounting bracket or chassis. The shape of the urethane bushing is tapered to prevent binding between the chassis and/or mounting bracket. This allows the urethane to gradually absorb engine movement and vibration. 95A Red - The 95A Red Extreme pretty much race only... Figure these bushings are 95 out 100% solid.

Condition

Used (normal wear)
