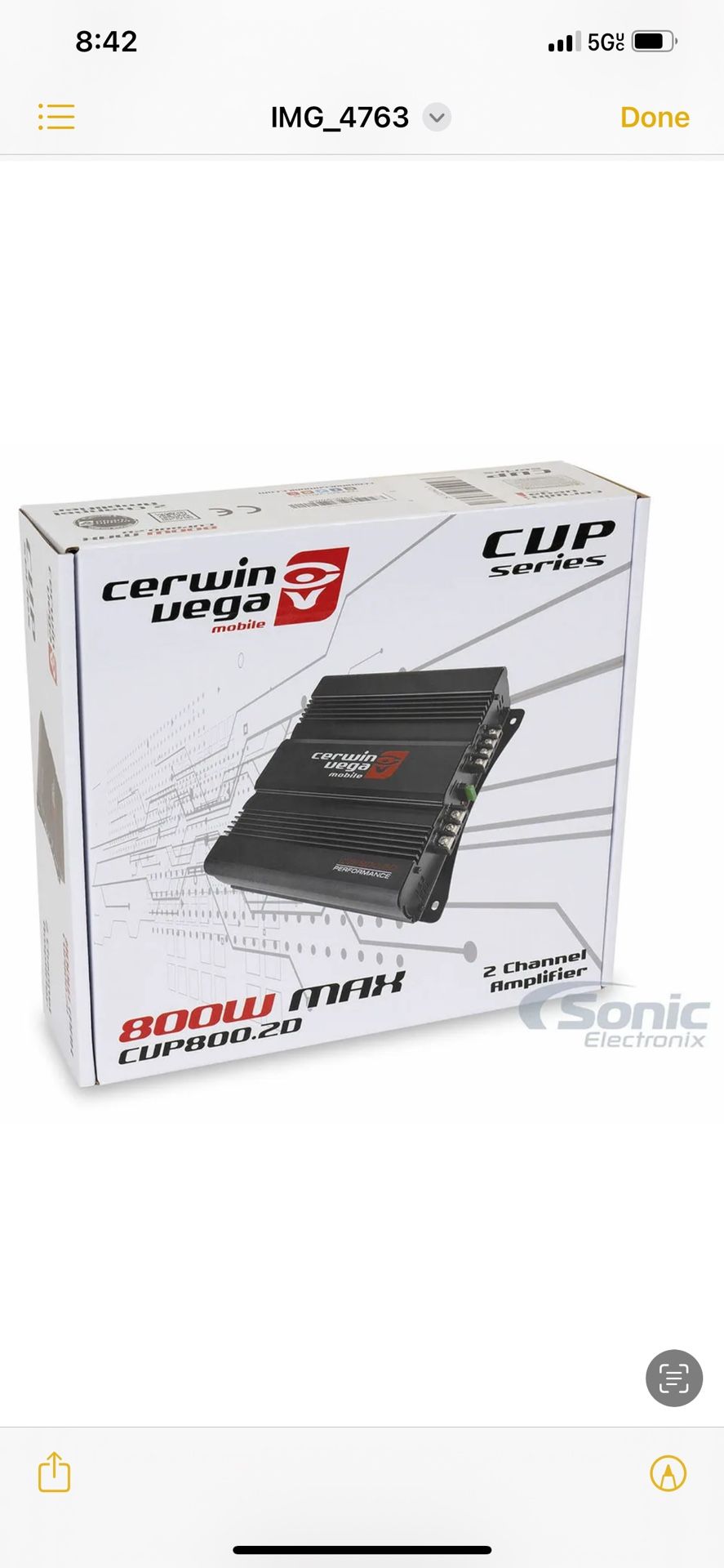

Amplifier Cerwin-Vega CVP800.2D CVP Series 400W 2-Channel Class-D Car Audio

Amplifier Cerwin-Vega CVP800.2D CVP Series 400W 2-Channel Class-D Car Audio Conditions new pv83L Product highlights • 60 watts x 2 channel @ 4 ohms
• 85 watts x 2 channel @ 2 ohms
• Bridged: 180 watts x 1 channel @ 4 ohms
• Total RMS Power: 180 watts
• Class A/B 2 ohms Stable 2-Channel Amplifier Description Authorized dealer Product Details: • CVP Series Class A/B 2 ohms Stable 2-Channel Amplifier • RMS Power Rating: ◦ 4 ohms: 60 watts x 2 channel ◦ 2 ohms: 85 watts x 2 channel ◦ Bridged: 180 watts x 1 channel @ 4 ohms • Total power output: 180 watts • LED Power/Protect Light • Speaker-level (high-level) inputs • 1 pair of pre-amp outputs • Signal sensing remote turn-on • 3-way protection circuitry (thermal, overload, and speaker short protection) • Input sensitivity: ◦ Low level: 200mV - 6 volts ◦ High level: 200mV - 6 volts • Total Harmonic Distortion (THD): <1% • Signal to Noise Ratio: >90 dB • Variable high-pass filter: 40 - 400 Hz • Variable low-pass filter: 40 - 400 Hz • Variable Bass Boost: 0 - 12 dB • Fuse Rating: 30A • 4 AWG gauge amplifier wiring kit is recommended for installation • Dimensions: 9.38" L x 7.88" W x 2.25" H • Authorized Internet Dealer • Specifications & Details

Key Features
Amplifier Key Features
Bass Boost • Speaker Level Inputs


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel

RMS Power @ 2 ohms
85 watts x 2 channel

Bridged RMS Power
180 watts x 1 channel


Amplifier Specifications
Series
CVP Series

Amplifier Class
A/B

Number of Channels
2-Channel

Total Peak Power Output
800 watts

Total RMS Power Output
180 watts

Maximum Input Gauge Size
4 AWG

Minimum Impedance Unbridged
2 ohms

Minimum Impedance Bridged
4 ohms

THD at Rated RMS Power
<1%

Speaker Level Inputs
Yes

Preamp Outputs
1 pair

Built-in Crossover
Low-Pass (LP) • High-Pass (HP) • Full (AP)

High-Pass Crossover Frequency
40 - 400 Hz

Low-Pass Crossover Frequency
40 - 400 Hz

Signal-to-Noise Ratio
>90 dB

Bass Boost
0 - 12 dB

Remote bass/level controller
No

Fuse Rating
30A x 1

Total Fuse Rating
30

Strappable
No

Sonic Certified Amplifier
Yes

Amp Bluetooth Connectivity
No

Hi-Res Certified
No

Low-Level Input Sensitivity
200mV - 6 volts

High-Level Input Sensitivity
200mV - 6 volts

Condition

New
