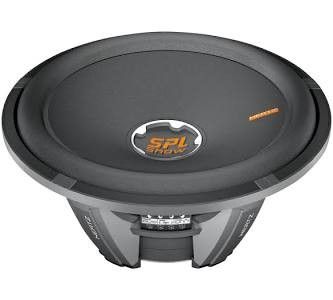

Hertz SX380D SPL Show 15" 1000W RMS Dual 2 Ohm Competition Subwoofer 4000W Max OLD SCHOOL

Connectivity

Wired

Model

SX380D

Type

Car Subwoofer

4 available The Hertz SPL Show SX 380D car audio subwoofers are the ideal solution for building mobile audio systems with emphasis placed on low frequency power and impact. Featuring a stacked double magnet motor assembly and 2 + 2 Ohm dual voice coil, the three models, SX 250D, SX 300D, SX 380D differ only in their cone diameter: 250 mm, 300 mm, 380 mm respectively. The SPL Show moving assembly is designed to ensure long and linear excursion. They feature a dual spider design and an aluminium voice coil wound on a four-layer former. The back vented spider support decreases the voice coil operating temperature, even during enhanced SPL usage. Size mm (in.) 380 (15) Power Handling - Peak W 4000 Power Handling - Continuous W 1000 Impedance 2 + 2 Frequency response Hz 25 600 Sensitivity dB SPL 92 Voice coil mm (in.) 65 (2.6) Magnet Double magnet, High density flux ferrite Cone/Dome Pressed paper Xmax mm 14 X-mech mm (in.) 23 (0.9) Re 4 Fs Hz 43 Vas l 45 Qts 0,67 Qes 0,7 Qms 9,3 Spl dB 92

Brand

Hertz
