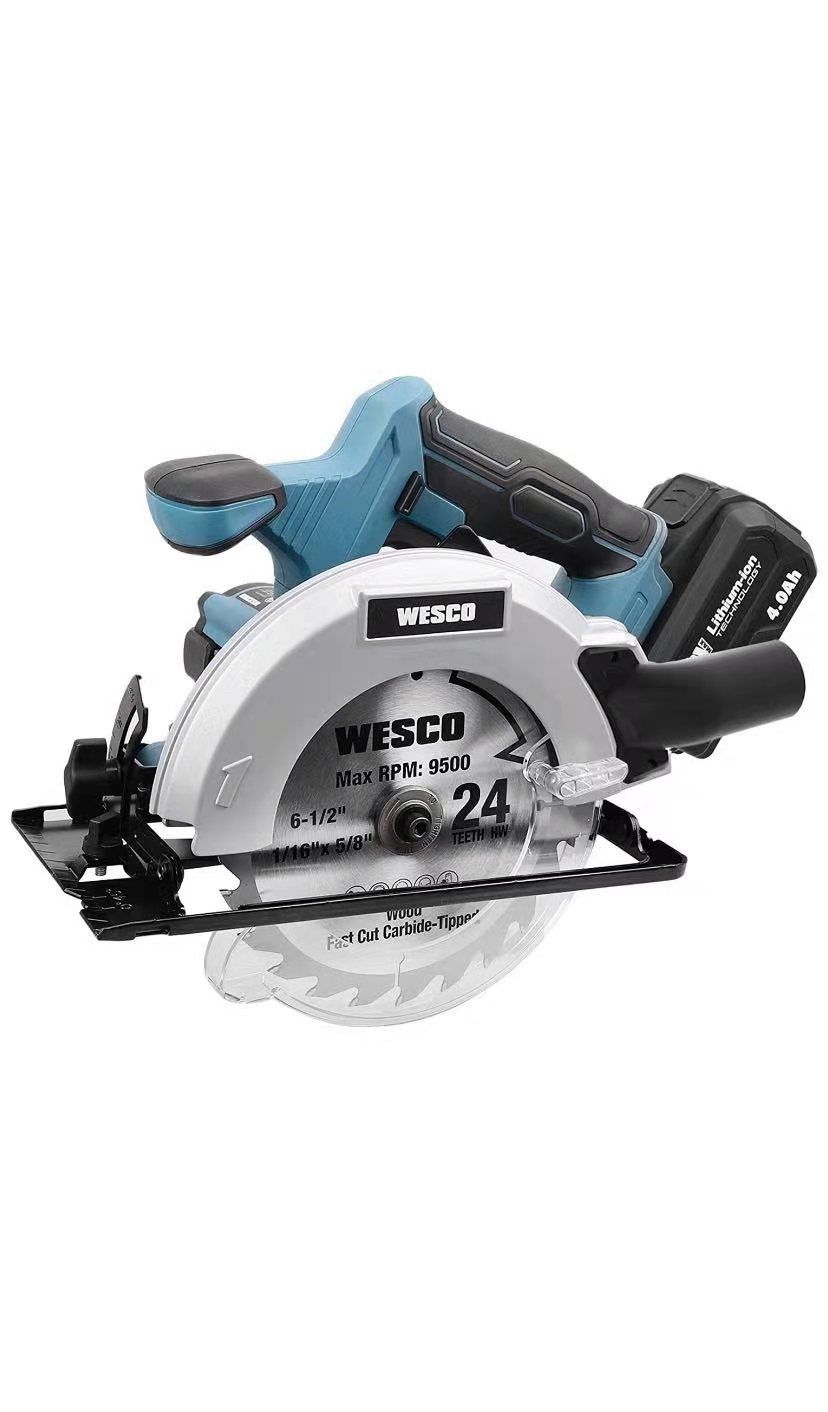

WESCO 20V MAX 6-1/2-Inch Cordless Circular Saw With 4.0Ah Lithium-Ion Battery, 2 Blades, Vacuum Adaptor. Max Cutting Depth 2-1/8''(90°), 1-1/2''(0°-45

WESCO 20V MAX 6-1/2-Inch Cordless Circular Saw With 4.0Ah Lithium-Ion Battery, 2 Blades, Vacuum Adaptor. Max Cutting Depth 2-1/8''(90°), 1-1/2''(0°-45°) /WS2316U Item Dimensions LxWxH 12.9 x 9 x 11.2 inches Power Source Battery Powered Speed 4000 RPM Voltage 20 Volts CHARGING PROCEDURE 1) Plug the charger into an appropriate outlet. The light will be green. 2) Slide the battery pack into the charger, the light will turn to red to indicate the charging process has started. 3) When charging is completed, the light will turn to green.The pack is now fully charged, unplug the charger and remove the battery pack. DEPTH OF CUT ADJUSTMENT Turn the cutting depth lock knob in an anti-clockwise direction, and raise the saw body away from the base plate. Set the depth of cut using the cutting depth scale and then turn the cutting depth lock knob in an anti-clockwise direction. Always add 3mm to your depth of cut so that the `blade can cut through the material BASE PLATE ANGLE ADJUSTMENT Turn the base plate bevel lock in anti-clockwise direction to loosen the angle scale. Tilt the base plate away from the machine until the required cutting angle is adjusted on the angle scale. Tighten the bevel lock by turning it in clockwise direction. Do not use the the cutting depth scale when making bevel cuts due to possible inaccuracy. DUST EXTRACTION OUTLET Fasten the vacuum adapter onto the dust extraction outlet until it latches. Additionally fasten the vacuum adapter to the fixed guard with the two screws. Directly connect a suitable vacuum hose to the adapter. HEX KEY STORAGE The supplied hex key provided can be placed in the area under the machine motor.

Condition

New
