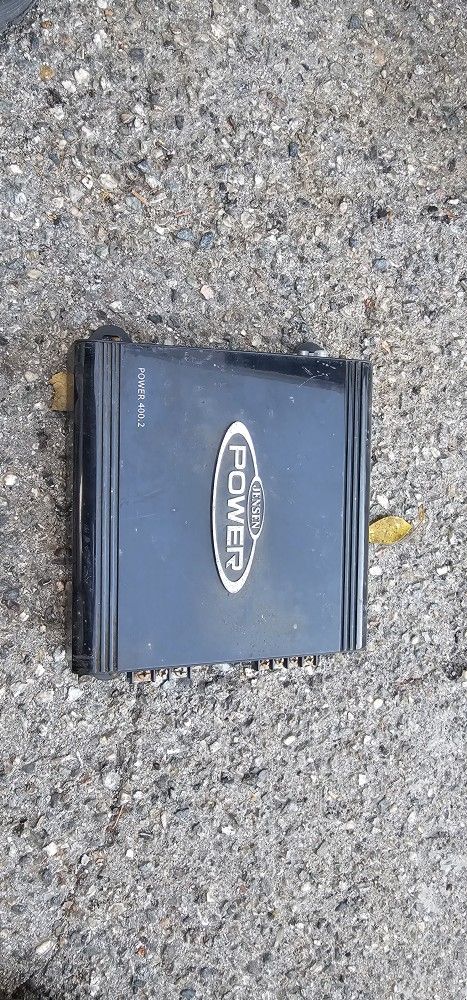

Jensen Amplifier

* Max Power: 400 Watts * Channels: 2 Channels (also bridgeable to 1 channel) * RMS Power (Root Mean Square): * 75 Watts x 2 channels at 4 Ohms * 100 Watts x 2 channels at 2 Ohms * 200 Watts x 1 channel at 4 Ohms (bridged mode) General Features: * Amplifier Class: Class A/B (optimized for minimizing distortion and reducing quiescent current) * Power Supply: MOSFET Pulse Width Modulated (PWM) * LED Indicators: Green (power) and Red (standby/fault) * 2/1 Channel Operation: Allows for flexible system configurations. * Speaker Level Inputs (High Level): With signal sensing for automatic turn-on. * RCA Pre-amp Outputs: For daisy-chaining multiple amplifiers. * Protection Circuitry: 3-Way System Protection (thermal, DC offset, and speaker short circuit). * Heat Sink: Heavy-duty extruded aluminum construction for excellent heat dissipation. * Output Transistors: High current bipolar. * Terminals: Chrome-plated screw terminals. Audio Controls: * Variable High-Pass Filter (HPF): 40-300 Hz, 12 dB/octave * Variable Low-Pass Filter (LPF): 40-300 Hz, 12 dB/octave * Variable Bass EQ Control: 0-12 dB at 45 Hz * Frequency Response: 500-60,000 Hz (though other sources indicate 5-60 kHz) * Signal-to-Noise Ratio (S/N): >100 dB * Channel Separation: >60 dB * Variable Input Level: 400mV - 5V * Total Harmonic Distortion (THD): 0.02% Other: * Fuse Rating: 1 x 25 Amps * Dimensions: Approximately 9" (Depth) x 9.5" (Width) x 2.5" (Height) This amplifier is designed to provide quality sound reproduction with good power and various configuration options to suit different car audio needs.
