CLOUDVOCAL ISOLO CHOICE - Saxophone wireless system (Applicable to Wind instruments )

Model

Sax microphone

Brand

Cloud vocal

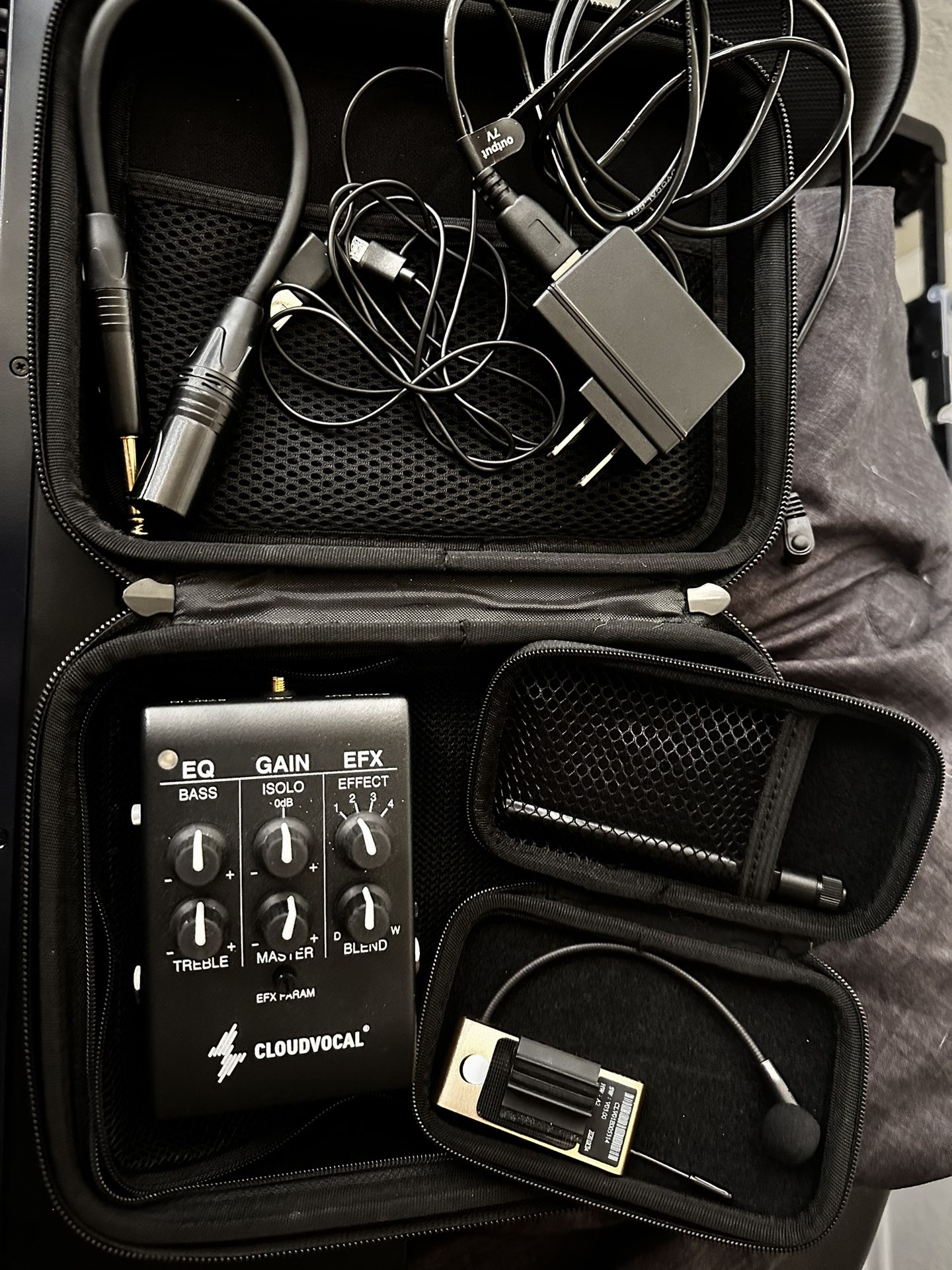

CLOUDVOCAL Spectacular dynamic range 2.4GHz multi-function receiver Portable The lightest setup on stage Easy connection is a must, 4 built-in effects is a plus. *frequency applies globally **Room/Hall / Chorus / Delay Total control, your all-a-round DI box and signal mixer. In addition to the wireless signal, there are two inputs (1/4" & 1/8") on the receiver for playing backing tracks or lining in other instruments for mixer use. From pool parties, street performances to live gigs, this is your ultimate hardware to perfect amplification. Adjustable and flexible goose neck TAKE IT ANYWHERE AND USE IT ANYTIME CHOICE Receiver Function 1 ANT 10 EFFECT (Room/Hall/Chorus/Delay) 2 SYNC OUT 11 DRY/WET 3 SYNC IN 12 EFX PARAM 4 MUTE 13 NEAR/FAR 5 AUX IN 14 POWER SUPPLY 6 BASS 15 LINE/MIC GAIN 7 TREBLE 16 LINE/MIC INPUT 8 ISOLO GAIN 17 OUTPUT 9 MASTER GAIN 18 MIC POWER INDICATOR CHOICE Receiver Specs Dimensions 115mm(L)*75mm(W)*50mm(H) Net Weight 310g Power supply 7V-9V DC, 400mA *Require 5V 2A power bank or adapter when using the USB power cable Transmit bandwidth 2.4GHz global ISM Smart automatic frequency hopping Input 6.3mm TRS / TS x1 (for dynamic mic or other line instrument) 3.5 TRS x 1 (external audio) Output Balanced 6.3mm TRS —> XLR Unbalanced：6.3mm TRS —> 6.3mm TS Working distance Near mode: 15 meters Far mode: 15~30 meters *The distance may alter in different environments Microphone Transmitter Specs Dimensions 60mm(L)*25mm(W)*10±1mm(H) Net Weight 26g Sound source Condenser mic Transmit bandwidth 2.4GHz global ISM Smart automatic frequency hopping Mic Polar pattern Unidirectional Frequency response Near mode:10Hz~20KHz Far mode:10Hz~16KHz Max SPL 140dB THD+N Less than 0.05% (1KHz@ -10dB FS) Battery life 5~7 hours *Retain 80% of maximum capacity after 200 recharging cycles ISOLO CHOICE - Saxophone wireless system Main Product Microphone transmitter (Applicable to Wind instruments) CHOICE receiver Wind instruments mount package Quickstart guide Micro USB cable Wind Instruments Mount Package Wind cap x2 Sponge hook x2 Wind clip x3 Velcro belt x1 Accessory Package Antenna USB DC power adaptor Power supply cable (Receiver) 6.3mm balanced TRS to XLR cable 6.3mm 1/4” male to 3.5mm female audio adaptor 6.3mm mono cable
