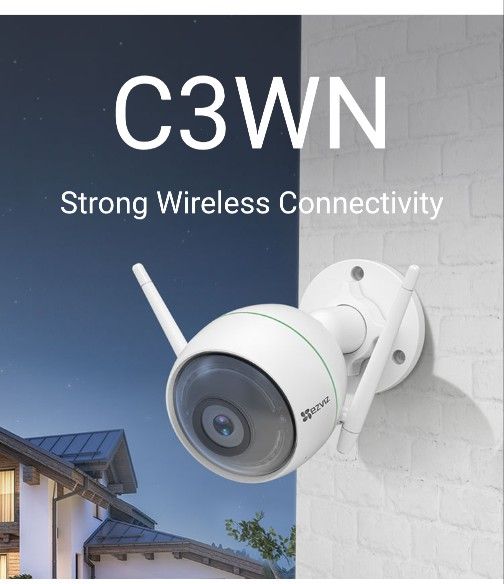

Outdoor Smart Wi-Fi Camera

Featuring dual Wi-Fi antennas, the C3WN looks out for your property while reliably staying connected. Model Parameters Name C3WN Model CS-CV310-A0-1C2WFR Camera Image Sensor 1/2.9" Progressive Scan CMOS Minimum Illumination 0.02 lux @(F2.0, AGC ON), 0 lux with IR Shutter Speed Self-adaptive shutter Lens 2.8mm @ F1.8, view angle: 95° (Horizontal), 110°(Diagonal) 4mm@ F2.0, view angle: 81° (Horizontal), 94°(Diagonal) Lens Mount M12 Day & Night IR-cut filter DNR 3D DNR WDR Digital WDR Compression Video Compression H.264 H.264 Type Main profile Video Bit Rate Ultra-HD; HD; Standard. Adaptive bit rate Auto Bit Rate Self-adaptive Image Max. Resolution 1920 x 1080 Frame Rate Max: 30fps; Self-Adaptive during network transmission Interface Storage Micro SD card (Max. 256G) Wired Network RJ45 × 1(10M/100M Adaptive Ethernet Port) Network Smart Alarm Motion detection Wi-Fi Pairing AP pairing Protocol EZVIZ Cloud proprietary protocol Interface Protocol EZVIZ Cloud proprietary protocol General Features Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark Max. Bitrate 2Mbps Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth Supports 20MHz Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps General Power Supply DC 12V/1A Power Consumption Max. 6W IP Grade IP66 IR Range Max. 30 meters (98.43ft) Product Dimensions 72mm x 72mm x 150 mm (2.83 x 2.83 x 5.91”) Packaging Dimensions 252mm x 110mm x 92mm (9.92 x 4.33 x 3.62”) Weight 288g(0.63lbs)
