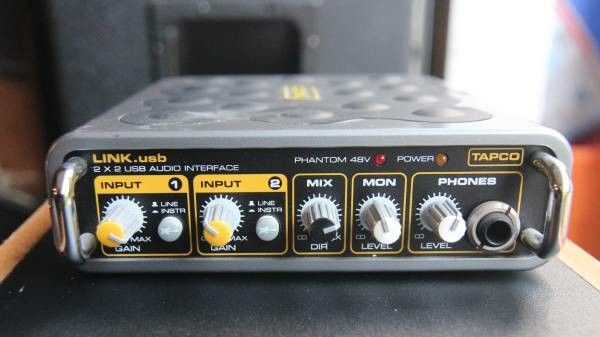

Tapco Link.USB 2x2 USB Recording Audio Interface

The Tapco Link.USB is a portable 24bit/96kHz computer audio interface for connecting 2 channels of audio to a Mac or PC using a common USB connection. FEATURES 2channel 24bit/96kHz USB audio interface Combo Mic/Line/Instrument inputs Mackie-designed high-headroom mic preamps 48v Phantom power Low latency direct monitoring Bus powered for extreme portability Mac and PC Compatible Convenient, collapsible swivel-foot for desktop operation SPECIFICATIONS Frequency Response Any Input to Monitor Output: +0, "0.5 dB, 22 Hz to 22 kHz @ 48 kHz SR Any Input to Ph1s Output: +0, "3 dB, 30 Hz to 22 kHz @ 48 kHz SR (600ohm load) Distortion THD + Noise (1 kHz, -1 dBFS @ 48 kHz SR) Mic Input to Monitor Output: < 0.005% Dynamic Range Mic Input to Monitor Output (48 kHz SR, A-w8ed): 100 dB Input Impedance Mic Input: 3 kOhms Line Input: 20 kOhms balanced, 20 kOhms unbalanced Instr Input: 1 Mohm Output Impedance Monitor Output: 200 ohms Headph1 Output: < 1 ohm Crosstalk Monitor Output (1 kHz, Left to Right): -70 dB Headph1 Output (1 kHz, Left to Right): -80 dB Maximum Input Level Mic In (XLR): -2.2 dBu Line In: +4.5 dBu Instr In: +5.4 dBu Maximum Output Level Monitor Output: +4.2 dBu Headph1 Output: 18 mW into 600 ohms A/D and D/A Conversion: 24 bit, {contact info removed} kHz Dimensions: 1.7"H x 6.1"W x 6.8"D/7.6"D with handles (43x155x173/193mm) W8: 1.4 lbs. (0.6 kg)
