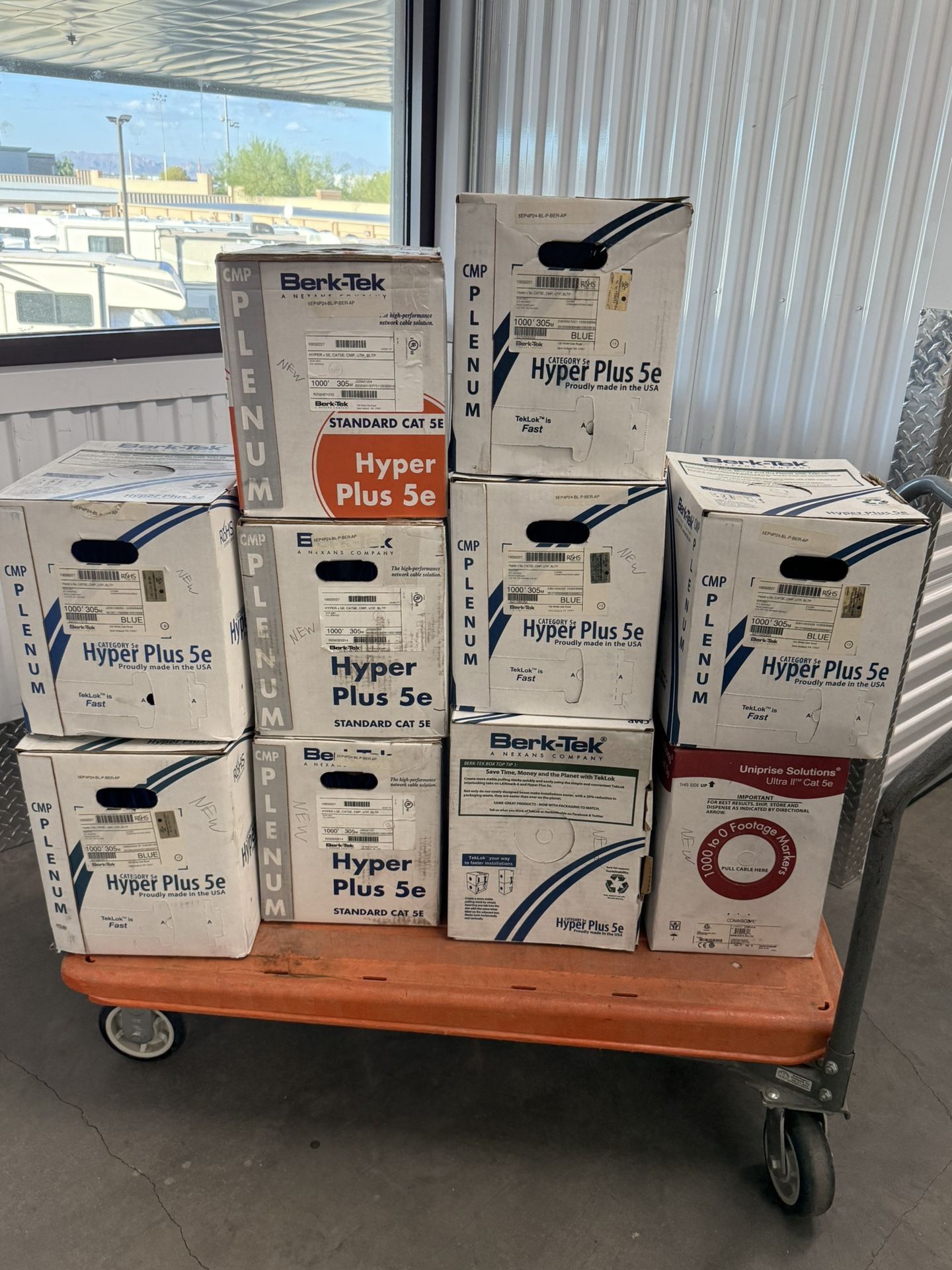

1000’ Blue Cat5e Plenum CMP UTP Hyper Plus

Berk-tek cat 5 Ethernet cable data wire Poe wire 10 boxes available 24awg bare copper Leviton TECHNICAL SPECIFICATIONS Electrical properties (20 °C ± 5 °C) DC resistance Max. 9.38 Ω/100 m DC resistance unbalance Max. 5% Mutual capacitance Nom. 5.2 nF/100 m at 1 kHz Capacitance unbalance (pair-to-ground) Max. 330 pF/100 m at 1 kHz Delay skew 45 ns/100 m max. Nominal velocity of propagation 66% CHARACTERISTICS Dimensional Characteristics Length per reel 1000 ft (305 m) Number of pairs 4 Usage Characteristics Category Cat 5e Type of cable UTP Temperature (Storage): -20 °C to +60 °C (-4 °F to +140 °F) Temperature (Installation): +10 °C to +50 °C (+50 °F to +122 °F) Temperature (Operating): -20 °C to +60 °C (-4 °F to +140 °F) Listed cable temp. +75 °C (+167 °F) Page 2 of 4 Copyright © 2023 Leviton Manufacturing Co., Inc. All rights reserved. Leviton reserves the right to modify product specifications without notice. HIGH SPEED DATA AND POWER APPLICATIONS IEEE 802.3 2.5/5GBASE-T (2.5/5 Gb/s), 1000BASE-T (1 Gb/s), 100BASE-TX (100 Mb/s), 10BASE-T (10 Mb/s) IEEE 802.3 PoE Types 1, 2, 3, and 4 COLOR CODE Pair 1 Blue White Pair 2 Orange White Pair 3 Green White Pair 4 Brown White Hyper Plus 5e CMP UTP Cable TECHNICAL DATA - PHYSICAL Conductor 24 AWG bare copper Max conductor diameter - in. (mm) 0.020 (0.51) Max insulated conductor diameter - in. (mm) 0.038 (0.97) Nom. cable diameter - in. (mm) 0.21 (5.33) Nom. cable weight - lb./kft (kg/km) 24.8 (36.9) Max. installation tension - lb. (N) 25 (110) Min. bend radius - in. (mm) 1 (25.4) ECCN EAR99 Country of Origin US - United States UPC 100(contact info removed)0 UNSPSC (contact info removed)9 Alternate Manufacturer Part No. 10032227 Packaging Box Type Communication Cable Color Blue Cable Type U/UTP Category Category 5e Flammability Rating CMP Gauge 24 AWG Jacket Material Flame Retardant PVC No. of Pairs 4 Shielded Unshielded Color Family Blue Length 1000 ft.

Condition

New
