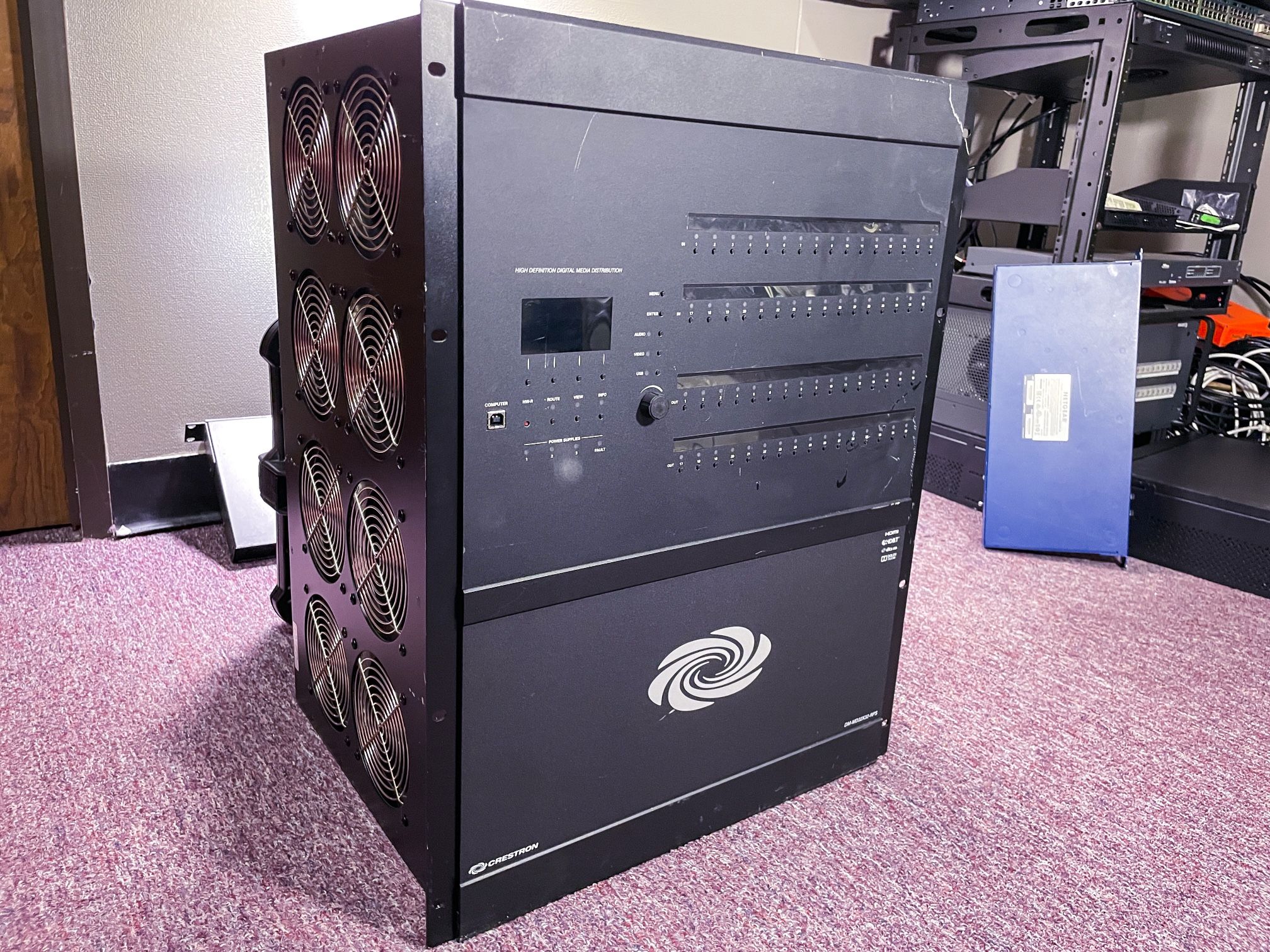

Crestron 32x32 DigitalMedia Switcher with Redundant Power Supplies

DM-MD32X32-RPS This is Crestron’s flagship level Media switcher for unparalleled distribution, control, ease of use, flexibility, and operation. - Distribute audio, video, ethernet, USB, or control a computer, a camera, blu-ray, mouse, keyboard, audio interface, media server, etc. - Route 4k HDMI, Stream h.264, deep color, 3D - Record your tracking artist etc.from up to 330 ft away (1080p up to 1000 ft. away), or handle up to 32 Audio/Video sources remotely in multiple rooms. Key Features • Unified HD signal distribution (point-to-point wired and IP) • Lossless HD AV signal routing over twisted pair copper wire or fiber • Integrates video, audio, networking, and control over one wire or fiber strand • High-performance H.264 streaming from any input source up to 1080p or WUXGA • Ffull matrix switching with ultra high 12.5 Gbps backplane data rate • HDMI with Deep Color, 3D, 4K, and high-bitrate 7.1 encoded audio • HDBaseT Certified • HDCP 2.2 compliant via compatible 4K input and output cards • Distributes Full HD 1080p, Ultra HD, and 4K signals over CAT type twisted pair cable at distances up to 330 ft (100 m) via DM 8G+ and HDBaseT • Distributes 1080p and WUXGA signals over multimode fiber at distances up to 1000 ft (300 m) via DM 8G® Fiber • Distributes 1080p and WUXGA signals over single-mode fiber at distances up to 7.5 miles (12 km) via DM 8G SM Fiber • Allows streaming of 1080p signals over an IP network with no distance limitations • Supports all first-generation DM® CAT and DM Fiber products • Configurable with up to eight DM, HDBaseT, and/or HDMI outputs • Configurable with up to four streaming outputs • Easy output expansion using multiple DM switchers • Modular inputs support a complete range of digital, analog, and streaming signal types • QuickSwitch HD technology manages HDCP keys for fast, reliable switching • Auto-Locking technology achieves rapid switching between disparate sources • Detects and displays detailed video and audio input information • Automatic AV signal format management via EDID • Independent scaling for every display through select output cards and DM receivers • Device control via CEC • Distributes and routes USB HID mouse and keyboard signals • Expanded USB routing capabilities available using USB over Ethernet Extenders • Full audio and USB breakaway switching • Analog audio embedding and de-embedding • Integrates with analog audio distribution systems • Simultaneous output of stereo and surround sound audio • Integrated Ethernet switch with Gigabit LAN port • Private Network Mode — requires just one IP address for the complete DM system • Built-in redundant power supplies with remote status monitoring • Provides easy setup and diagnostics tools via front panel or software •14-space 19-inch rack-mountable This device was pulled from a professional working environment.

Condition

Used (normal wear)

Features

4K, Cable TV Integration, Cloud storage, Multi-screen streaming, Music, Picture viewing

Media Streaming

Internet TV/Video, Home network media

Model

DM-MD32X32-RPS

Brand

Crestron Digital Media
