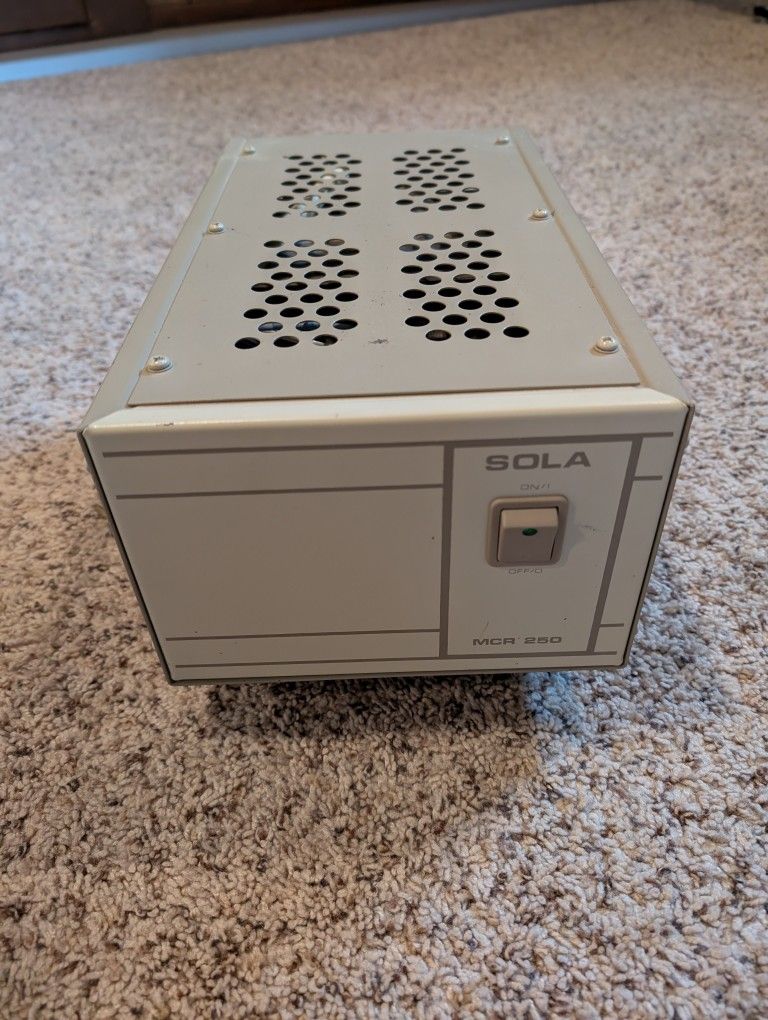

General Signal Sola MCR 250 Isolation Transformer 63-13-125-05 The MCR Hardwired Series provides excellent noise filtering and surge suppression to pr

General Signal Sola MCR 250 Isolation Transformer 63-13-125-05 The MCR Hardwired Series provides excellent noise filtering and surge suppression to protect connected equipment from damage, degradation or misoperation. Combined with the excellent voltage regulation inherent to Sola/Hevi-Duty's patented ferroresonant design, the MCR can increase the actual Mean Time Before Failure (MTBF) of protected equipment. The MCR is a perfect choice where dirty power, caused by impulses, swell, sags, brownouts and waveform distortion can lead to costly downtime because of damaged equipment. Features ±3% output voltage regulation Noise attenuation 120 dB common mode 60 dB transverse mode Surge suppression tested to ANSI/IEEE C62.41 Class A & B Waveform: <10 V let through typical Acts as a step-up or step-down transformer Hardwired Galvanic isolation provides exceptional circuit protection 25 year typical MTBF No maintenance required In 95-130 vac 60hz Out 120 13" 7" 8"
