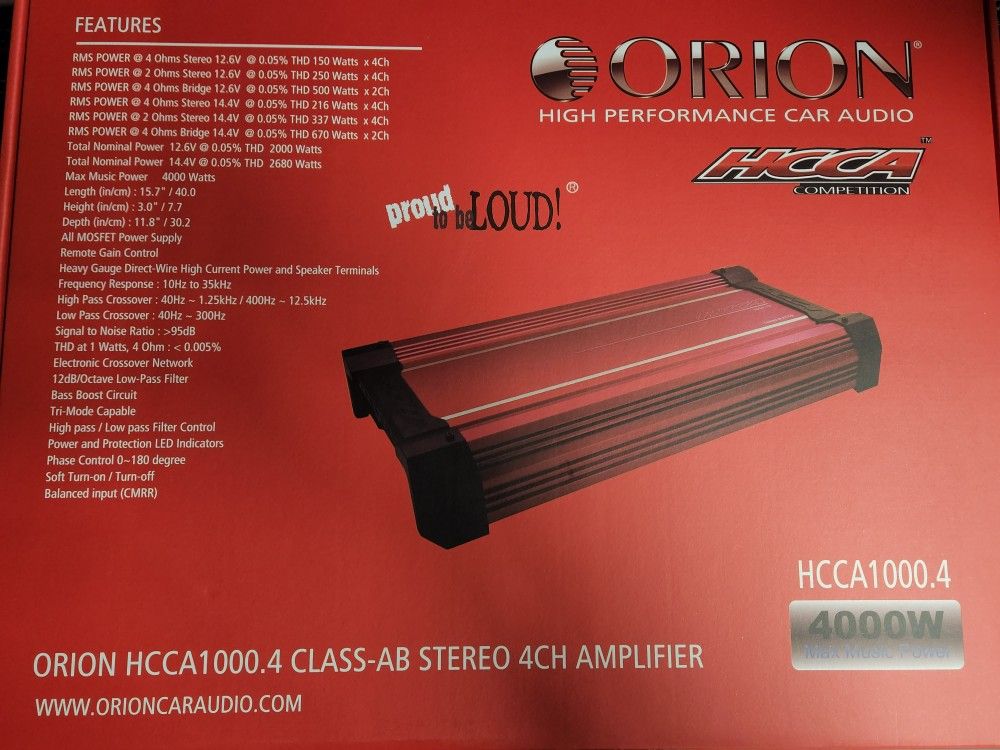

Orion HCCA1000.4 4 X 150W RMS at 4 Ohms Competition Class AB Amplifier

Model

HCCA1000.4

Type

Car Amplifer

Brand

Orion

4 available Authorized Orion Dealer! Power output 4 Ohms (Watts/RMS): 150 x 4 Power output 2 Ohms (Watts/RMS): 250 x 4 Power output 4 Ohms (Watts/RMS) Bridged: 500 x 2 TOTAL POWER WATTS NOMINAL: 2000 Pulse Width Modulated MOSFET power supply Remote bass level input Intelli-Q Variable Bass Boost (0 to +10 dB bass boost at 20-200 Hz) Preamp RCA outputs to daisy chain multiple amps Switchable on/off Intelli-Q maximizes the performance of any subwoofers used ESP Port allows connection of a Directed ESP controller, like the Bitwriter 5-Way System Protection circuitry (Thermal, DC offset, short protection, undervoltage, over-voltage) Heavy duty aluminum alloy heatsink for extreme heat dissipation Silver-plated Balanced RCA level inputs Silver-plated screw terminals Input sensitivity: Low level: 200mV-4V High level: 400mV-8V Power supply voltage range (9 to 16V) Variable high-pass filter (50-2,000 Hz, 12 dB/octave) Variable low-pass filter (50-2,000 Hz, 12 dB/octave) Variable Infrasonic filter (15-60 Hz) Damping factor: >200 Frequency response: 20-20,000 Hz (+/- 2.5dB) Fuses: 200A recommended (not included) Input Sensitivity Lock-Out Mode - Lock the Tweekers Out! Turn-On Delay Fault and Protection Monitoring Dimensions: 19-3/4"L x 10-5/16"W x 2-1/2"H
