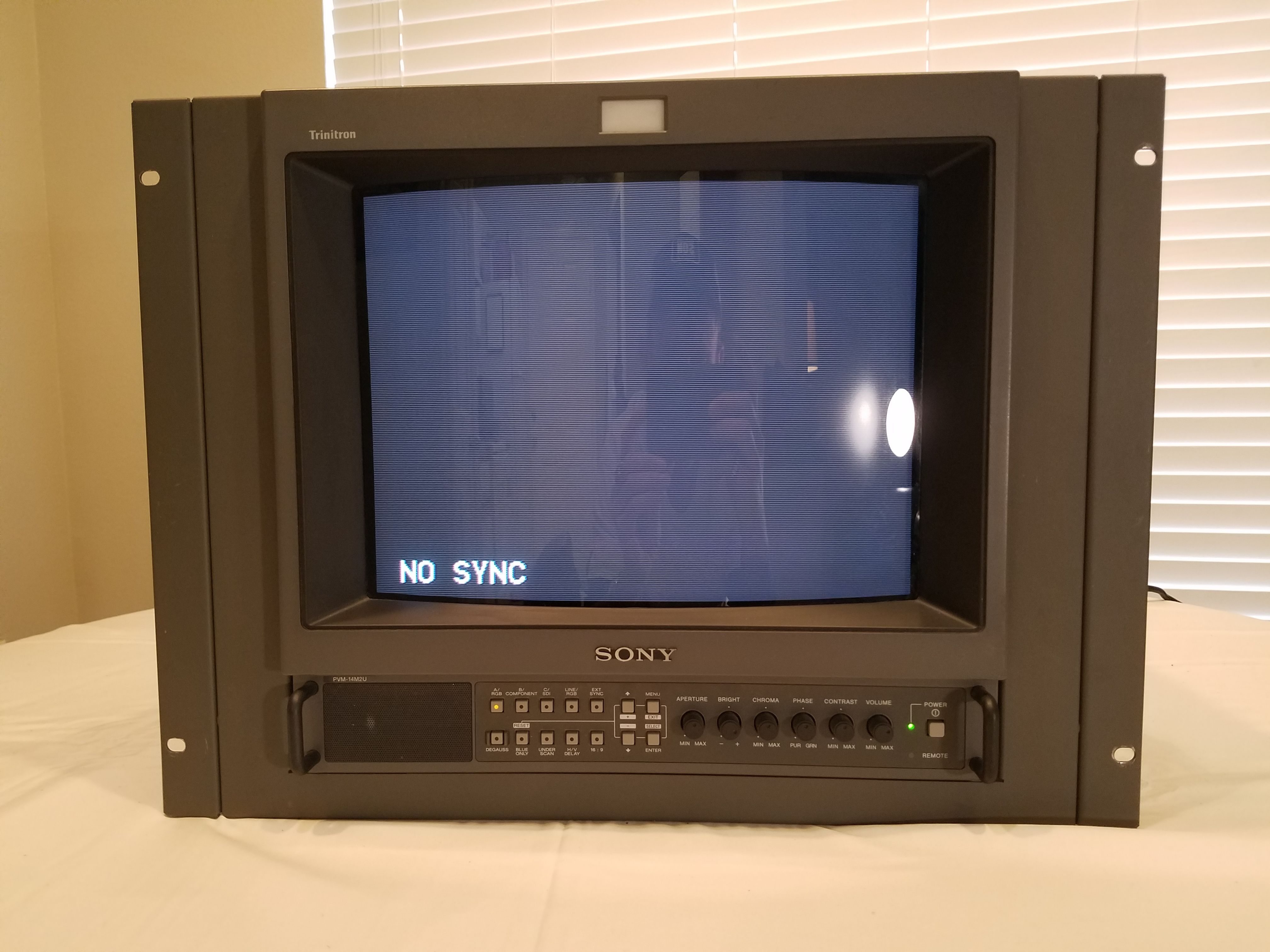

Sony PVM-14M2U Trinitron Color Video Monitor W/Rackmount

Features Picture HR (High Resolution) Trinitron PVM-14M4U/14M4E/14M4A/20M4U/20M4E/20M4A HR Trinitron tube provides a high resolution picture. Horizontal resolution is more than 800 TV lines at the center of the picture. 1) Trinitron picture tube for PVM-14M2U/14M2E/14M2A/20M2U/20M2E Trinitron tube provides a high resolution picture. Horizontal resolution is more than 600 TV lines at the center of the picture. Comb filter When NTSC video signals are received, a comb filter activates to make more accurate Y/C separation. This contributes to less of a decrease in resolution, cross color and cross luminance phenomena. Beam current feedback circuit The built-in beam current feedback circuit assures stable white balance. Four color system available The monitor can display NTSC, PAL, SECAM and NTSC 2) signals. The appropriate color system is 4.43 selected automatically. Blue only mode In the blue only mode, an apparent monochrome display is obtained with all three cathodes driven with a blue signal. This facilitates color saturation and phase adjustments and observation of VCR noise. ....................................................................................................................................................................................................................................... 1) "Trinitron" is a registered trademark of Sony Corporation. 2) The NTSC an NTSC recorded video program is played back with a Trident (PAL/SECAM/NTSC output. 4 1) picture tube for system refers to an NTSC color system in which the subcarrier frequency is modified to 4.43MHz. When 4.43 Input Analog RGB/component input connectors Analog RGB or component (Y, R-Y and B-Y) signals from video equipment can be input through these connectors. Y/C input connectors The video signal, split into the chrominance signal (C) and the luminance signal (Y), can be input through this connector, eliminating the interference between the two signals, which tends to occur in a composite video signal, ensuring video quality. External sync input When the EXT SYNC selector is in the on position, the monitor can be operated on the sync signal supplied from an external sync generator. Automatic termination (connector with mark only) The input connector is terminated at 75 ohms inside when no cable is connected to the loop-through output connector. When a cable is connected to an output connector, the 75-ohm termination is automatically released
