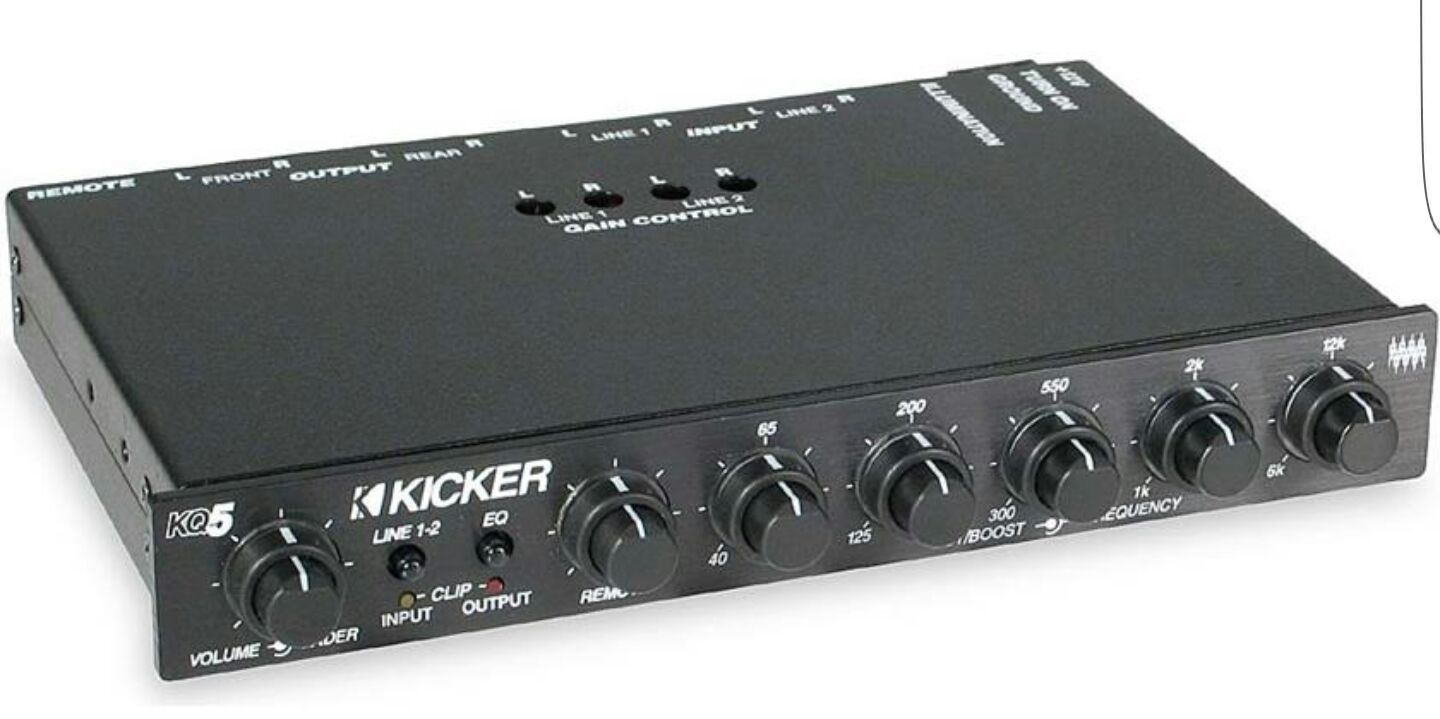

New Kicker KQ5 equalizer

Want to maximize the performance of your external amplifiers? Kicker KQ5 preamp/equalizer boosts and contours the signal from your in-dash receiver before sending it to the amplifier(s), reducing system noise and increasing dynamic range. Five bands of equalization allow you to boost or cut specific frequencies (up to 12 dB) so you can fine tune system performance. Each band has a control which moves its center frequency up and down to target the portion of the music you wish to control (Band 1: 40-90 Hz; Band 2: 125-250 Hz; Band 3: 300-750 Hz; Band 4: 1,000-4,000 Hz; Band 5: 6,000-20,000 Hz). You can attach a receiver with two sets of preamp outputs to the KQ5's two sets of inputs, and use your receiver to fade from front to rear. Or hook up a second source (portable player, video game) to the second set of inputs — separate gain controls allow you to match the levels of both sources. Other features include a front-to-rear fader and clipping indicator lights for inputs and outputs. The KQ5 also features a built-in bass level controller for the Kicker KX amplifiers — just plug into the amp's remote cable to the input on the EQ's rear panel. This attractive 1/2-DIN size equalizer can be installed in (or under) your dash. Important Note: This unit has no built-in amplifier — must be used in conjunction with one or more external amplifiers. Details: 1/2 DIN size — installs in or under your dash (underdash brackets are included) 5 adjustable bands of equalization (variable 40-90 Hz; 125-250 Hz; 300-750 Hz; 1,000-4,000 Hz; 6,000-20,000 Hz; 12 dB cut/boost) two sets of inputs/outputs input/output clipping indicator lights remote bass level controller (compatible with Kicker KX amplifiers with wired remote controls) input sensitivity: 950 mV to 9.6 volts maximum output voltage: 7 volts signal-to-noise ratio: 95 dB 7-1/4"W x 1-1/16"H x 5-1/4"D
