Uni-Solar PVL-128 128 Watt Flexible Solar Panel Grid-Tie - 4" Wires

Brand

Uni-Solar

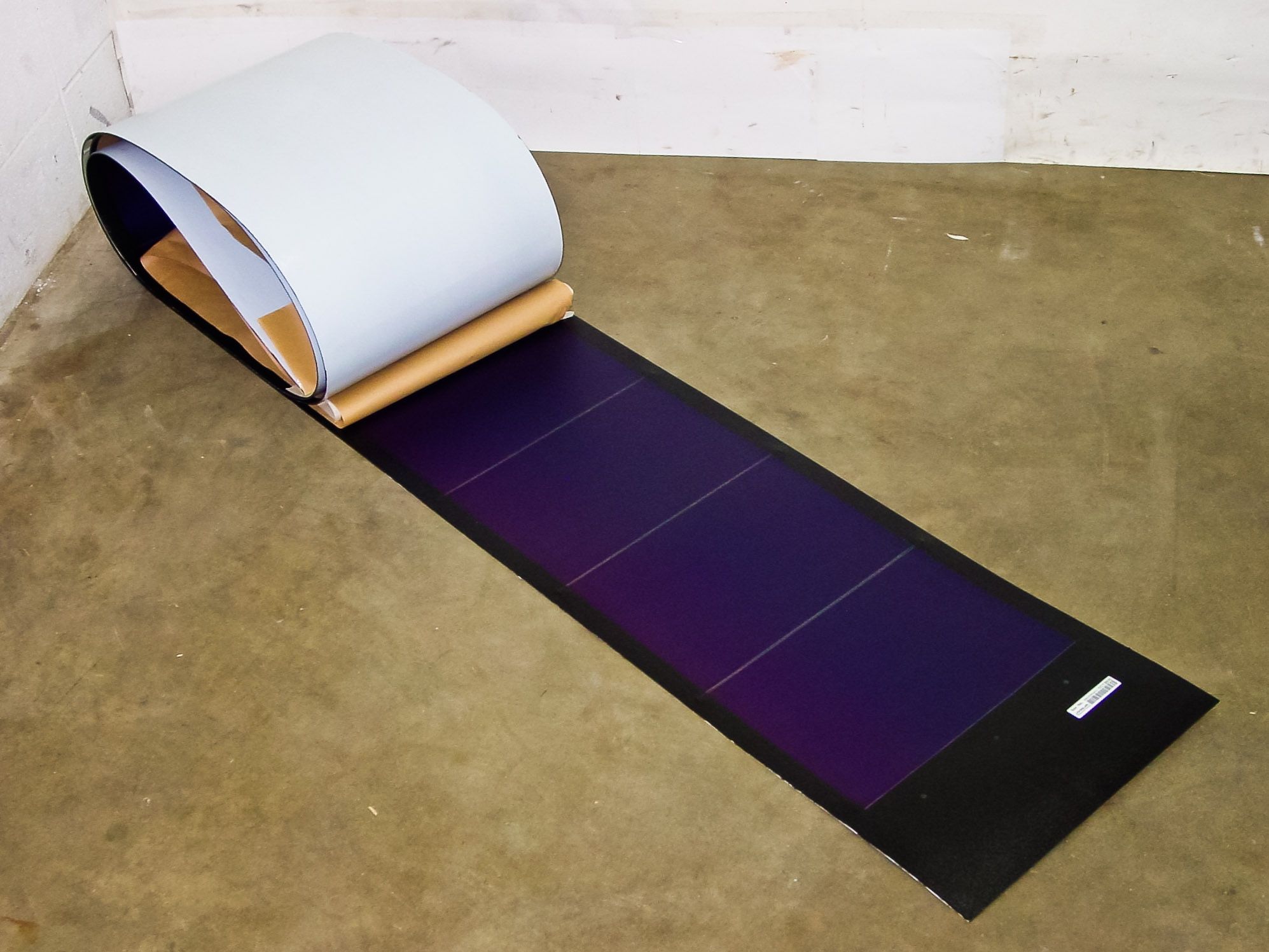

Uni-Solar PVL-128 128W 24-Volt Flexible Amorphous Solar Panel with Bottom Facing 4" WIRES. We include free MC3 Cables and Junction box for DIY installations. These are top tier finished panels. Unisolar made them this way for a specific client. These are also Grid Tie UL 1703 Listed for Systems up to 600 VDC. Which means they were made to last 20 Years. See brochure Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. They are also Category 3 (130 MPH) Hurricane uplift resistant and installed with no hardware. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Electrical Stats: Maximum Power (Pmax): 128 Watts Nominal Operating Voltage: 24 Volts Max Power Voltage (Vmpp): 33 Volts Max Power Current (Impp): 3.88 Amps Open Circuit Voltage (Voc): 47.6 Volts Short Circuit Current (Isc): 4.8 Amps Physical Stats: Panel Dimensions (Feet): 18 long x 1.29 wide Panel Dimensions (Inches): 216 long x 15.5 wide x 0.2 thick Panel Weight: 16 Pounds Electrical Connectors: None: Bare, 4-inch wires on bottom of panel (RED and BLACK for positive and negative). We include free MC3 Cables and Junction box for DIY installations. Features: Lightweight & Flexible Easy Peel & Stick Application Virtually Unbreakable (No Glass) Shadow & High Heat Tolerant Frame Material: Frameless Bonding adhesive factory-installed on the back of the laminate Uni-Solar panels are lightweight, flexible and directly adhere to many roofing surfaces avoiding penetrations. Each cell is connected to each other via bypass diodes. Therefore, if one cell is shaded or soiled, only the power output of this one shaded cell is lost - usually less than 4.5%.These panels are less than 1/5th the weight of crystalline solar panels and are designed for membrane and metal roofing system applications. Here is a video with many examples. Condition: New New Open Box. This panel has bottom facing 4-inch wires for connections below the panel. We include a DIY Junction Box with 18-Inch MC3 Connectors with every panel sold, but other components may be needed depending on the desired setup, such as additional short wires to connect the 4-inch wires to the j-box, and/or a sealant to connect the j-box securely to the panel. It is 18 feet long by 15.5 inches wide. Please view our photo set and contact us if you have any questions. See more at https://offerup.co/faYXKzQFnY?$deeplink_path=/redirect/
