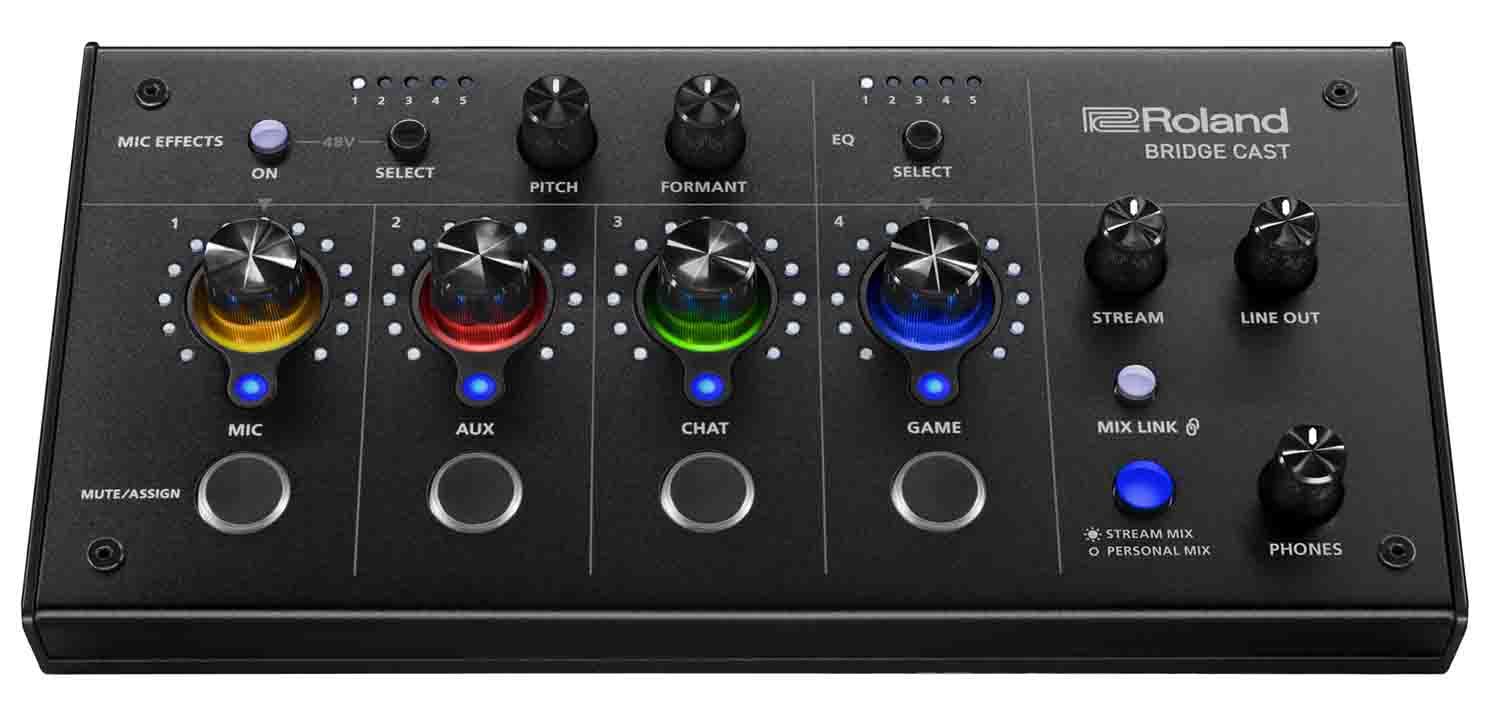

Roland BRIDGE CAST Dual Bus Audio Gaming Mixer

The Roland BRIDGE CAST Dual Bus Audio Gaming Mixer Pro Sound for Pro Gamers will take your online game live streaming sound to the next level. BRIDGE CAST is your secret weapon for victory, boasting two independent mix buses, a voice changer function, BGM playback, sound effects, and a wide range of customizability. Of course, broadcast equipment-grade microphones and headphones are also supported. BRIDGE CAST delivers epic sound to match your game-playing prowess while the heat of the battle rages on.

Roland Technology for Even More Outstanding Delivery

BRIDGE CAST provides the superior sound you need for every gaming session and the audio tuning capabilities to stand out from the crowd.
Roland is a leader in electronic music innovation, and has been making audiovisual equipment for over 50 years. With BRIDGE CAST, you can deliver the quality sound trusted by various creators around the world to your streaming followers.

Power Up Your Sound

With BRIDGE CAST, you can use the broadcast grade dynamic and condenser mics that are essential in a professional broadcaster's audio setup for live dialogue and commentary. Supports up to 75dB, so you don't need any additional accessories when connecting to XLR.

It also features a powerful headphone amplifier that can drive high-impedance headphones favored by professionals, and the sound you hear when monitoring is outstanding.

Mix for Monitoring + Mix for Distribution

With the two sound mixers installed in BRIDGE CAST, you can set the sound for distribution and your own monitor independently. You can set the volume of the microphone input voice, team conversations, game sounds, and music for background music to your preferred volume.

Direct Control Over Sound

In addition to the headphone output, the BRIDGE CAST has a line output that can be used to connect external speakers. The volume of each output can be easily adjusted in-game with individual knobs. In addition, it also has a knob that can control the volume for the broadcast viewer.

Transform with Voice

Transform your voice into a new character with Roland's acclaimed Voice Transformer VT series processing. You can adjust the pitch and formants to play voices of different ages and genders, even beasts and aliens. A noise suppressor cuts down on annoying ambient sounds, and reverb lets your voice ring out and add space.

Operability That Allows You to Concentrate On The Game

The BRIDGE CAST's ergonomic panel design lets you easily adjust your mix while you're focused on your game. All the functions you need are right at your fingertips, including intuitive knobs, audio muting, and buttons that can be assigned a variety of functions.

Customize your gaming environment with the BRIDGE CAST app

A dedicated software BRIDGE CAST app that works in tandem with the hardware allows you to change mic and audio parameters, adjust GAME EQ presets, and more.

IN THE BOX

Read Me First Pamphlet

USB 2.0 Type-C to Type-C Cable (2m/6.5ft)

USB 2.0 Type-C to Type-A Cable (2m/6.5ft

Recommended Accessories

Roland Mic Cables: RMC Series

Roland TRS to RCA Cable: RCC-352R Series

Roland TRS to 1/4” Cable: RCC-3528 Series

Roland TRS to TRS Cable: RCC-3535 Series

Headphones: V-MODA, Roland RH Series

Headset Microphone: V-MODA BoomPr

Product Specifications:

Input channel

MIC

AUX

CHAT (1)

GAME (1)

SYSTEM (1)

USB (2)

(1) When the USB port connection setting is "PC"

(2) USB port connection When the setting is "CONSOLE/MOBILE"

Output Channel

LINE OUT

PHONES

MIC (3)

STREAM (3)

PERSONAL (3)

USB (4)

Audio Mixing Bus: 2 (STREAM MIX, PERSONAL MIX)

Sampling Frequency: 44.1kHz, 48kHz, 96kHz

Signal Processing: AD/DA: 24-bitinternal processing: 32-bit floating point

Power Supply

USB bus power

USB AC adapter (commercially available)

USB AC adapter that can supply 5 V, 1.0 A or more is required.

Current Consumption: 5V DC, 900mA

External Dimensions

Width: 222mm

Depth: 110mm

Height: 70mm

Mass: 450 grams
