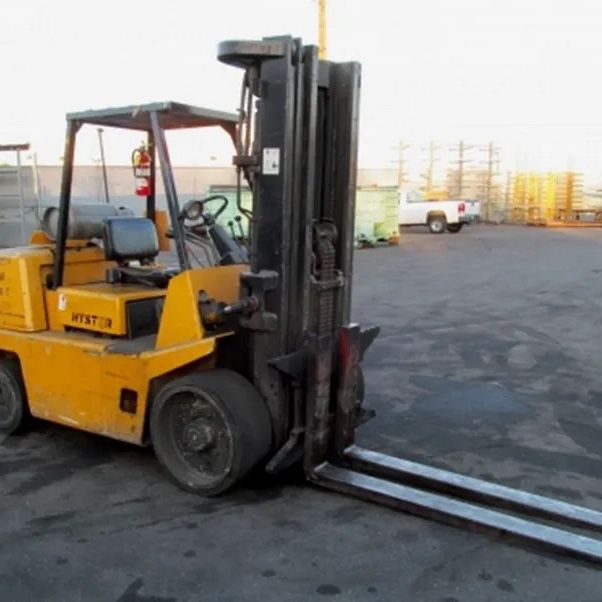

HYSTER FORKLIFT S135XL

Specifications: General Description • Model: S135XL • Series: C024 (Industrial-grade internal combustion cushion tire) • Fuel Type: LPG (Liquid Propane Gas) • Configuration: Cushion tire, counterbalanced forklift • Serial Prefix: B024D... (indicates C024 series, ~2007–2010) • Frame: Heavy-duty welded steel chassis • Overhead Guard: Full cage with fire extinguisher mount ________________________________________ 📐 Key Specifications • Rated Capacity: 13,500 lbs (6,123 kg) @ 24" load center • Lift Height (Standard 2-stage mast): ~133" max • Mast Lowered Height: ~89" (varies by mast) • Length to Fork Face: ~115.3" • Overall Width: ~56.6" • Turning Radius: ~101.8" • Fork Size: Typically 42"–48" ________________________________________ ⚙️ Engine & Powertrain • Engine: GM 4.3L V-6 (LPG or diesel depending on config) • Horsepower: ~91 HP (68 kW) • Transmission: Powershift (2F/2R standard, optional 3F/2R DuraMatch™) • Drive: Rear-wheel with differential • Travel Speed: ~12.0–12.5 mph (no load) ________________________________________ 📏 Hydraulics & Brake System • Hydraulic Functions: Lift, tilt, side-shift (optional) • Hydraulic Tank Capacity: ~19.8 gallons (75 liters) • Brakes: Oil-cooled, wet disc brakes • Cooling: Sealed system with large core radiator ________________________________________ 🔋 Fuel & Fluids • Fuel Capacity (LPG tank): Standard 33 lb cylinder mount • Diesel Option: ~17.4 gallons tank (if equipped) • Engine Oil: 6.3 qt capacity (approx.) • Transmission Fluid: 12 qt capacity (approx.) ________________________________________ 📦 Tires & Weight • Tire Type: Cushion (solid rubber) • Front Tires: ~28×12–22 • Rear Tires: ~22×12–16 • Unloaded Weight: ~19,200 lbs (8,709 kg) • Max Loaded Weight (depending on configuration): ~32,700 lbs ________________________________________ 🔧 Operator Features • Onboard computer: Pacesetter VSM™ • Adjustable steering column • Analog gauges (fuel, oil, temp, hour meter) • Ergonomic seat and pedal layout • Optional cab enclosure or weather protection kits ________________________________________ 🏭 Ideal Applications • Warehousing & logistics • Heavy manufacturing • Steel, plastics, or lumber handling • Indoor smooth-surface material transport • Distribution centers

Condition

Used (normal wear)

Type

Lift trucks

Brand

Hyster
